- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Nairy
-
Voltage:
-
380V, or customized
-
Dimension(L*W*H):
-
3230*1800*1400mm
-
Weight:
-
2700 KG
-
Mesh size (mm):
-
0.25-50
-
Inclination(°):
-
±5
-
Maximum feed particle size(mm):
-
150
-
Feature:
-
High Efficiency
Quick Details
-
Type:
-
LINEAR
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nairy
-
Voltage:
-
380V, or customized
-
Dimension(L*W*H):
-
3230*1800*1400mm
-
Weight:
-
2700 KG
-
Mesh size (mm):
-
0.25-50
-
Inclination(°):
-
±5
-
Maximum feed particle size(mm):
-
150
-
Feature:
-
High Efficiency
Product Description

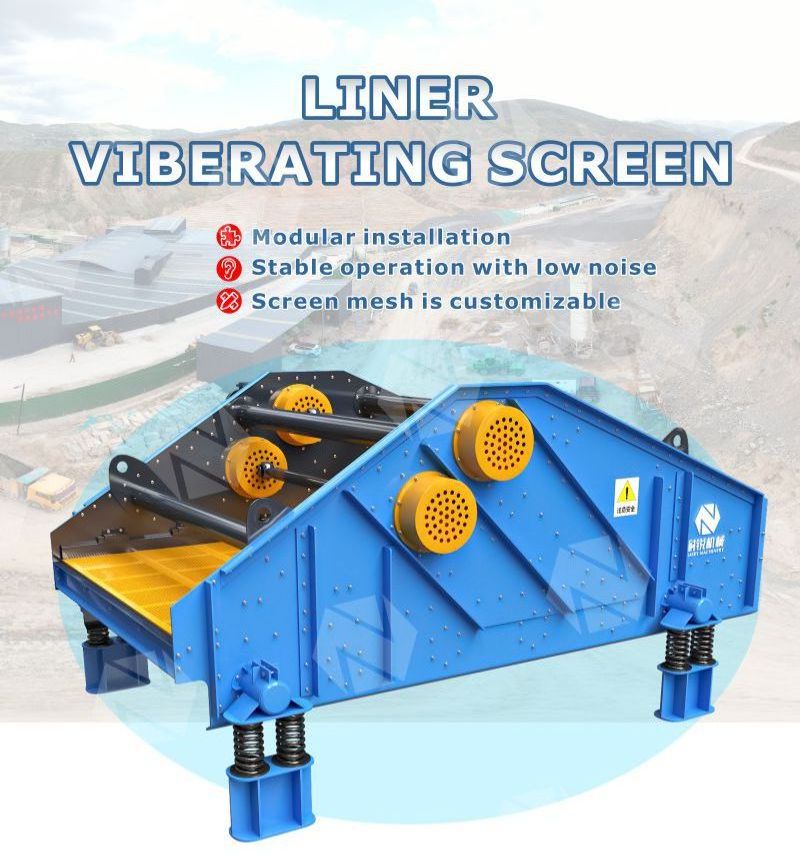

Introduction Of
Linear Xxnx Hot Vibrating Screen For Sand
Linear xxnx hot vibrating screen for sand
is widely used in artificial sand making production line, aggregate processing system in hydropower stations, and dewatering and recycle of coarse slime in coal preparation plant, can effectively solve the problem of water content.
Linear Vibrating Screen For Mining
Application
This
industrial sand sieving machine separator
rectangle
is mainly used in m
etallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.
Parameters Of
Linear Vibrating Screen Sieving Machine
|
Model
|
Mesh size (mm)
|
Inclination(°)
|
Maximum feed particle size(mm)
|
Capacity（t/h）
|
Power（kw）
|
Dimension(mm）
|
Weight（kg）
|
|
ZKR1230
|
|
|
|
7-144
|
2*4
|
3230*1800*1400
|
2700
|
|
ZKR1437
|
|
|
|
10-210
|
2*5.5
|
4080*2040*1656
|
3511
|
|
ZKR1537
|
|
|
|
10-250
|
2*5.5
|
4080*2140*1656
|
3875
|
|
ZKR1845
|
|
|
|
16-320
|
2*11
|
5265*2624*1695
|
5000
|
|
ZKR1860
|
|
|
|
20-380
|
2*15
|
6700*1700*5500
|
5500
|
|
ZKR2160
|
|
|
|
20-500
|
2*15
|
6700*3000*1700
|
5800
|
|
ZKR2445
|
|
|
|
20-500
|
2*15
|
4650*3224*1639
|
5100
|
|
ZKR2460
|
|
|
|
20-500
|
2*22
|
6551*3224*1639
|
6000
|
|
ZKR3052
|
|
|
|
20-500
|
2*22
|
6035*3521*1683
|
6210
|
Important Reminder:
1. The technical parameters are for reference only.
2. The product quotation is for reference only, based on the purchased model and configuration.
3. For more information, please call or consult customer service.
Linear Vibrating Screen Drying Quartz Sand
Features
●With the high frequency and large output, it can effectively reduce water content in fine sand.
●Use high-quality manganese steel, integral grinder profile design.
●CNC machining of the side plate and protective plate, high-strength Huck bolt link, no soldering seam.
●The sieve plate adopts polyurethane or stainless steel strip seam sieve plate, modular installation, local replacement local wearing for the low cost of spare parts, longer service life than the conventional screen, and not easy to block holes.
●Can design corresponding solutions according to the different requirements of users.

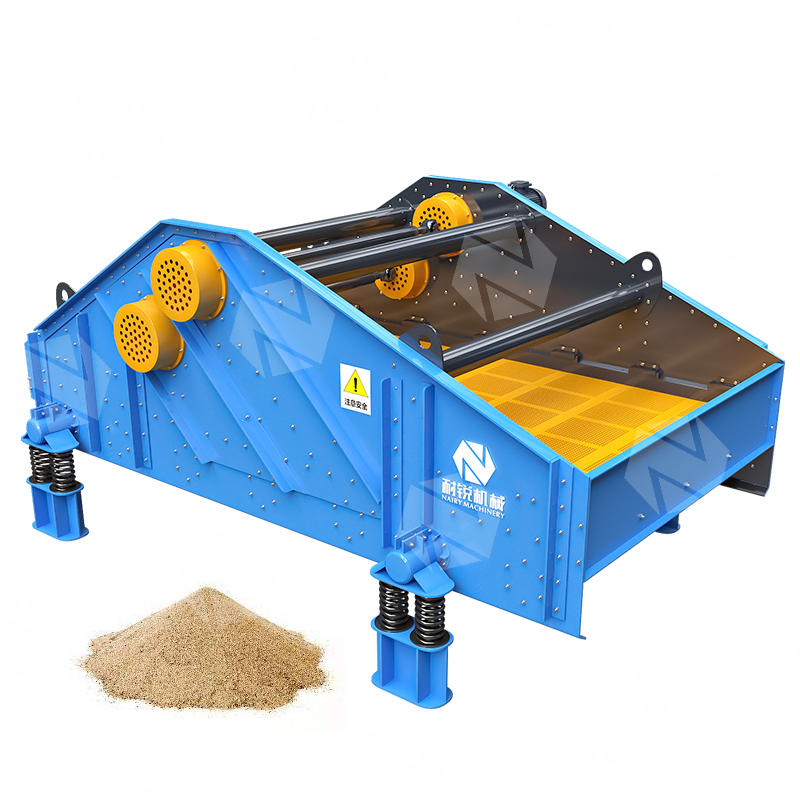

High Efficiency Sand Sieving Machine Linear Vibrate
Product Details

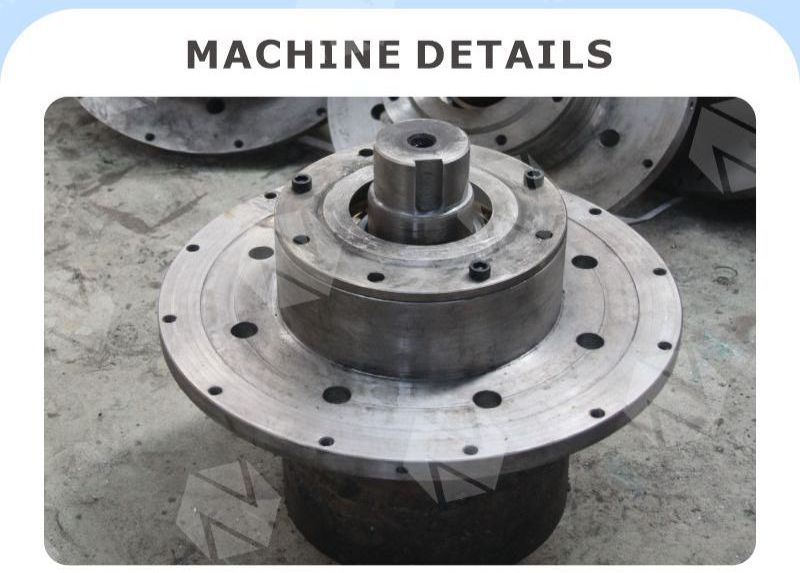

Vibration Exciter Maintenance
After the exciter has been working for a long time, the bearing should be checked. If it is damaged or the bearing life is over, the bearing should be replaced. If the running sound of the bearing starts to sound muffled, it indicates that the bearing is seriously worn.
Shock absorber spring
Under the support of the spring, the main engine realizes full vibration to achieve the purpose of screening materials.
Modular installation
Using Q345R material, the steel plate has high hardness, compact structure and stable operation.

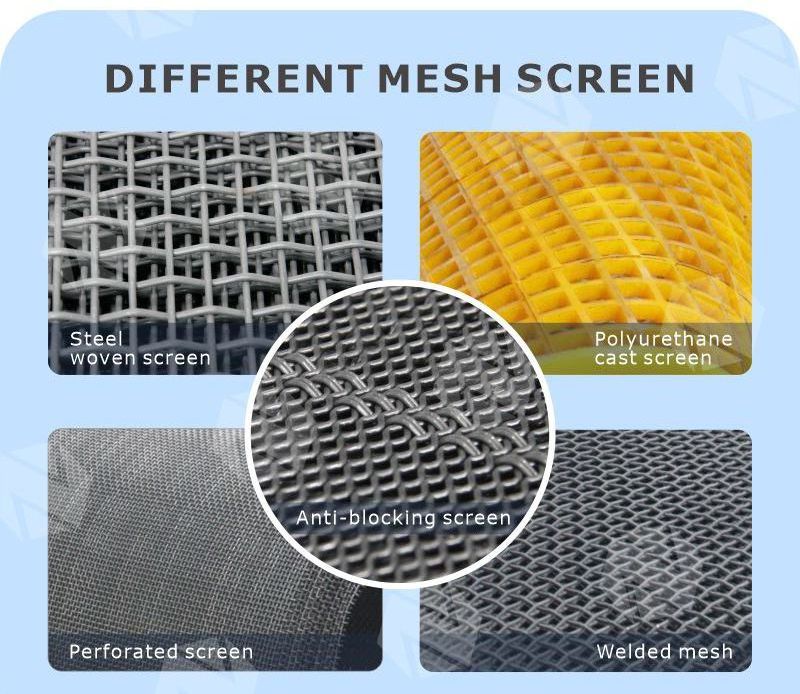

Screen can be customized
We provide manganese steel woven mesh, welded mesh, polyurethane mesh, anti blocking mesh, and sizes can be customized according to customer needs.
