Quick Details
-
Brand Name:
-
Renke
-
Model Number:
-
RS-MS111-*-1
-
Product name:
-
Atmospheric Air Quality Monitoring Sensors
-
Keyword:
-
air quality monitor
-
Power supply:
-
DC 10-30V
-
Detecting Item:
-
T, H, PM2.5, PM10, TSP, Light, Noise, CO2, O3, CO, O2, H2S, NH3
-
Display:
-
LCD Screen
-
Material:
-
ABS
-
Output signal:
-
RS485/ETH/WIFI
-
Working environment:
-
-10℃-55℃, 0~95%RH without condensation
-
Alarm Type:
-
Sound@Light
-
Application:
-
Home Office
Quick Details
-
Type:
-
Air quality monitor
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Renke
-
Model Number:
-
RS-MS111-*-1
-
Product name:
-
Atmospheric Air Quality Monitoring Sensors
-
Keyword:
-
air quality monitor
-
Power supply:
-
DC 10-30V
-
Detecting Item:
-
T, H, PM2.5, PM10, TSP, Light, Noise, CO2, O3, CO, O2, H2S, NH3
-
Display:
-
LCD Screen
-
Material:
-
ABS
-
Output signal:
-
RS485/ETH/WIFI
-
Working environment:
-
-10℃-55℃, 0~95%RH without condensation
-
Alarm Type:
-
Sound@Light
-
Application:
-
Home Office
Multi Factors Atmospheric Monitoring System Air Quality Monitoring Sensors
Product Description

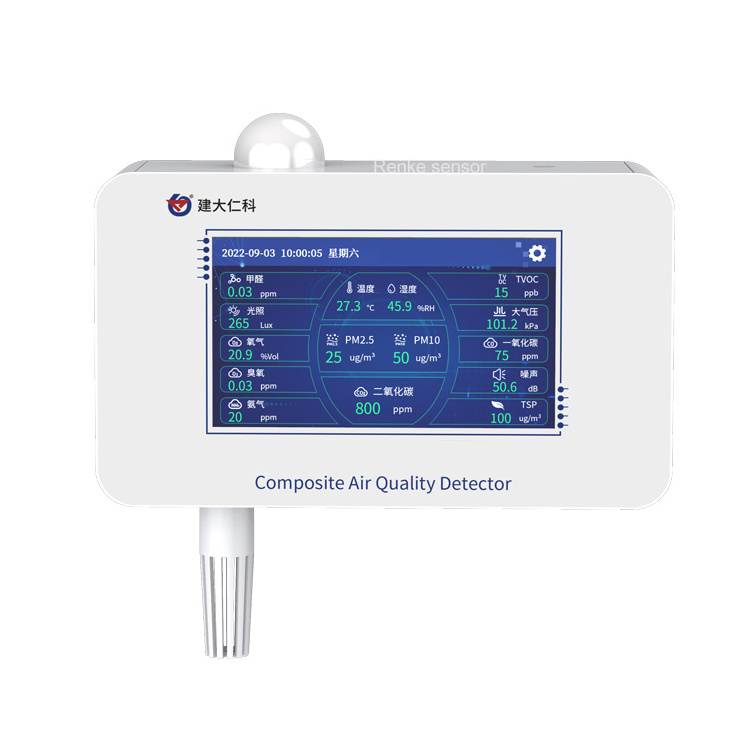

RS-MS111-*-1 is a multifunctional air quality detector independently developed by our company. The device has a built-in large-screen LCD, which is easy to operate. It can detect temperature, humidity, PM2.5, PM10, TSP, atmospheric pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3, CO, CH4, O2, SO2, NO2, H2, H2S, NH3 in the environment. Covers various indicators that reflect air pollution.
|
Power supply
|
DC 10-30V
|
|
Detection item
|
temperature, humidity, PM2.5, PM10, TSP, air pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3, CO, CH4, O2, SO2, NO2, H2,
H2S, NH3 |
|
Working environment
|
-10℃-55℃, 0~95%RH without condensation
|
|
Signal output
|
RS485/WIFI/Ethernet
|
|
Product material
|
ABS
|
|
Installation method
|
wall hanging / ceiling
|
Details Images
Air Quality Sensor Features:
1. All in one measurement, up to 11 factors can be measured simultaneously.
2. Output signals are WIFI, RS485, and Ethernet optional.
3. 4.3-inch large-screen LCD display, the screen is clear, and the touch screen control is easy to operate.
4. Can measure temperature, humidity, PM2.5, PM10, TSP, atmospheric pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3, CO, CH4, O2, SO2, NO2, H2, H2S, NH3 and other factors.
5. Wall-mounted installation, easy installation, 1-year warranty.
6. 10~30V wide voltage range power supply.
|
Detect item
|
Range
|
Resolution
|
Accuracy
|
Preheat time
|
|
PM2.5
|
0~1000ug/m3
|
1ug/m3
|
50%@0.3μm, 98%@>=0.5μm. PM2.5 accuracy: ±3%FS (@100μg/m3, 25℃, 50%RH)
|
≤2min
|
|
PM10
|
0~1000ug/m3
|
|
|
|
|
TSP
|
0~20000ug/m3
|
1ug/m3
|
±%25 or ±40μg/m3, whichever is greater (@1000ug/m3, 25℃, 50%RH)
|
|
|
Temperature
|
-40℃~+80℃
|
0.1℃
|
±0.5℃(25℃)
|
|
|
Humidity
|
0%RH-100%RH
|
0.1%RH
|
±3%RH (60%RH, 25℃)
|
|
|
Atmospheric pressure
|
0~120Kpa
|
0.1Kpa
|
±0.15Kpa@25℃101Kpa
|
|
|
Illuminance
|
0~200,000 Lux
|
1Lux
|
±7%(25℃)
|
|
|
TVOC
|
0~60000ppb
|
1 ppb
|
8%FS(@C2H6O,0.5ppm,25℃,50%RH)
|
|
|
CO2
|
0~5000ppm
|
1ppm
|
±(50ppm+ 3%F·S)
|
2min (available), 10min (max. accuracy)
|
|
Formaldehyde
|
0~5ppm
|
0.01ppm
|
±5%FS (@1ppm, 25℃, 50%RH)
|
≥5 minutes
|
|
O3
|
0~10ppm
|
0.01ppm
|
±6%FS (@5ppm, 25℃, 50%RH)
|
≥5 minutes
|
|
O2
|
0~25%Vol
|
0.1%Vol
|
±2%FS
|
≥5 minutes
|
|
H2S
|
0~100ppm
|
1ppm
|
±2ppm or ±10%
|
≥5 minutes
|
|
CH4
|
0~100%LEL
|
1%LEL
|
±5%FS
|
≥5 minutes
|
|
CO
|
0~1000ppm
|
1ppm
|
±5ppm or ±10%
|
≥5 minutes
|
|
NO2
|
0~20ppm
|
0.1ppm
|
±5%FS
|
≥5 minutes
|
|
SO2
|
0~20ppm
|
0.1ppm
|
±5%FS
|
≥5 minutes
|
|
H2
|
0~1000ppm
|
1ppm
|
±5%FS
|
≥5 minutes
|
|
NH3
|
0~100ppm
|
1ppm
|
±8%
|
≥5 minutes
|
|
Noise
|
30~130db
|
0.1db
|
±0.5dB (at reference pitch, 94dB@1kHz)
|
|
Data view
Related Products
Applications
-Schools
-Greenhouses
-Office buildings
-Factories
-Hospitals
-Hotels
-Transportation lines
-Places where CO2 is generated at high levels
Company Introduction
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.
Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
