Quick Details
-
Model Number:
-
Cargo Bike
-
Size:
-
3400*1310*1400mm
-
Front shock absorbing poles:
-
diameter:31mm
-
Front and rear tube specification:
-
3.25-16 and 4.00-12
-
Rear axle:
-
taper shaft drive rear axle
-
Frame specification:
-
front part tube:6*8cm,rear part tube:4*8cm
-
Carriage specification:
-
W*L:1.1*1.6m.bottom board thickness:1.2mm
-
Engine Type:
-
4-Strokes
-
Fuel:
-
Gas / Diesel
-
Brake(F/R):
-
hand and foot
-
Max. Speed:
-
40 - 60km/h
Quick Details
-
Displacement:
-
201 - 250cc
-
Brand Name:
-
Huaying
-
Place of Origin:
-
Henan, China
-
Model Number:
-
Cargo Bike
-
Size:
-
3400*1310*1400mm
-
Front shock absorbing poles:
-
diameter:31mm
-
Front and rear tube specification:
-
3.25-16 and 4.00-12
-
Rear axle:
-
taper shaft drive rear axle
-
Frame specification:
-
front part tube:6*8cm,rear part tube:4*8cm
-
Carriage specification:
-
W*L:1.1*1.6m.bottom board thickness:1.2mm
-
Engine Type:
-
4-Strokes
-
Fuel:
-
Gas / Diesel
-
Brake(F/R):
-
hand and foot
-
Max. Speed:
-
40 - 60km/h
| TECHNICAL SPECIFICATIONS | |||
|
|||
| Measurement And Weight | |||
| L | 3400mm | Ground Clearance | 170mm |
| W | 1310mm | Turning Radius | 2500mm |
| H | 1400mm | Climbing Capacity | 20° |
| Wheel Base | 2150mm | Handling Angle | 45° |
| Empty Weight | 325kg | Max Load | 250kg |
| Engine | |||
| Engine Style | Single-cylinder,4-stroke,air-cooling | ||
| Engine Type | 162FMJ | Starting Mode | Electric And Kick Starter |
| Bore × stroke | 62.0×49.5 | Clutch | Manual Wet Multi -Plate |
| Compression Ratio | 9.0:1 | Max Power | 8.5kw/8500r/min |
| Displacement | 149.0ml | Rated Power | 8.0kw/8500r/min |
| Ignition | CDI | Max Torque | 10.0Nm/6500r/min |
| Fuel | gasoline | Lubricating Oil | 15W/40 |
| Transmission & Chassis | |||
| Gear Change | 5 Gear | Front Tire | 3.25-16 |
| Max speed | 60km/h | Rear Tire | 4.00-12 |
| Economic Fuel Consumption | 2.8L/100km | Front Brake | Drum |
| Fuel Tank (including res) | 8L | Rear Brake | Drum |
| Wheel Rims Front | Spoke | Brake Operation Type , F | Hand |
| Wheel Rims Rear | Spoke | Brake Operation Type , R | Foot |
| Electrical | |||
| Spark Plug | NGK D7EA | Battery | 12V 9Ah |
| Headlight | 12V35W/35W | ||

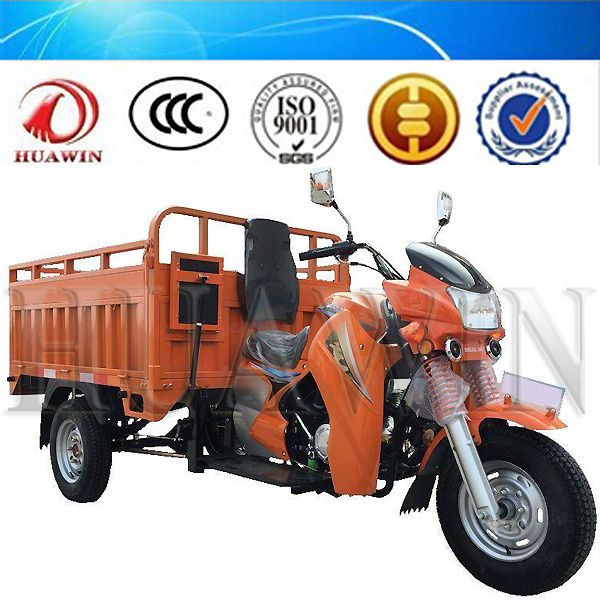

The pictures of this type in our factory:
The loading pictures:
