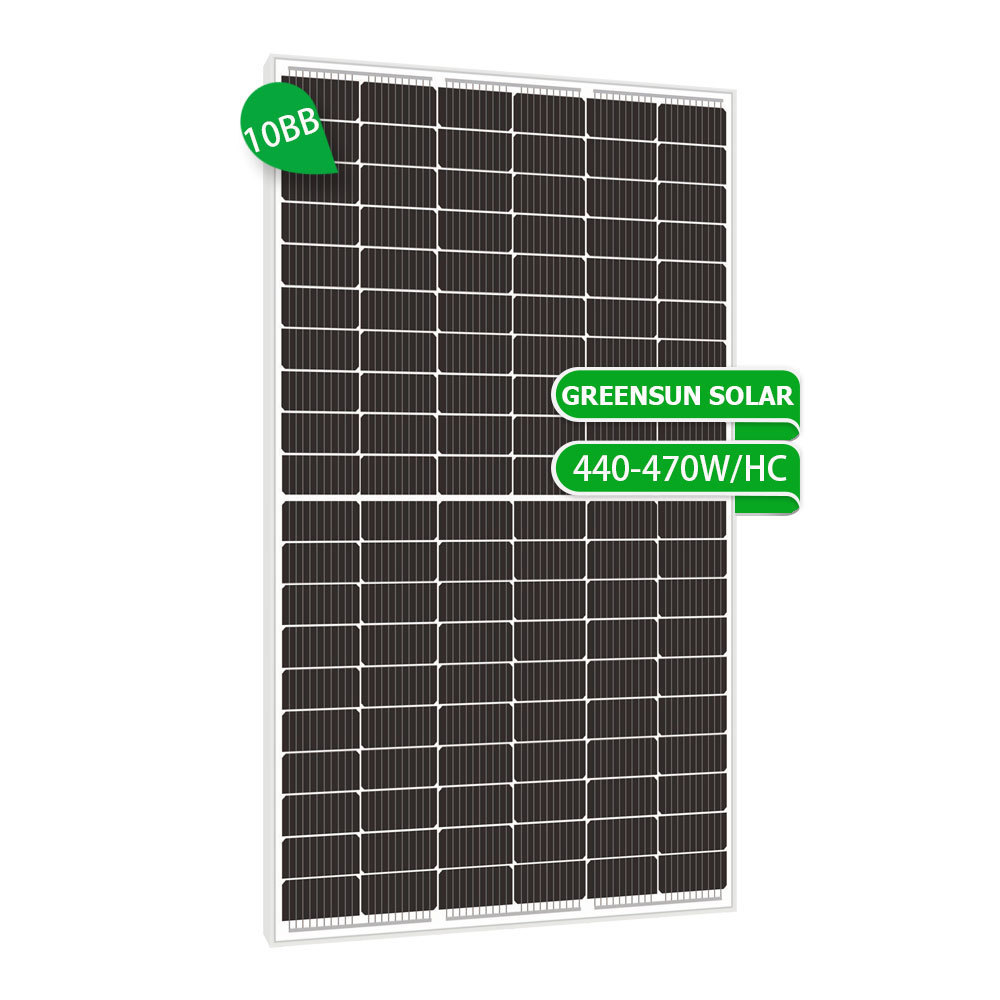

* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM470-120H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1908*1134*35mm
-
Name:
-
mono solar panel 470w
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Delivery:
-
15 days
-
Certificate:
-
CE TUV IEC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, Flexible, BIPV, TOPCON
-
Panel Efficiency:
-
21.6%
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM470-120H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1908*1134*35mm
-
Name:
-
mono solar panel 470w
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Delivery:
-
15 days
-
Certificate:
-
CE TUV IEC
Product Description
|
Model
|
GSM440-120H
|
GSM450-120H
|
GSM460-120H
|
GSM470-120H
|
|||
|
Rated Maximum Power(Pmax) [W]
|
440
|
450
|
460
|
470
|
|||
|
Open Circuit Voltage(Voc) [V]
|
41.44
|
41.56
|
41.68
|
41.80
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
34.21
|
34.31
|
34.41
|
34.50
|
|||
|
Short Circuit Current(Isc) [A]
|
13.55
|
13.81
|
14.09
|
14.37
|
|||
|
Maximum Power Current(Imp) [A]
|
12.87
|
13.12
|
13.38
|
13.64
|
|||
|
Module Efficiency [%]
|
20.4
|
20.8
|
21.2
|
21.6
|
|||
|
Power Tolerance
|
0~+5W
|
|
|
|
|||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.048%/℃
|
|
|
|
|||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.27%/℃
|
|
|
|
|||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.35%/℃
|
|
|
|
|||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|
|
|
|||
Grade A Materials
10BB PERC Mono Half Cells
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Production
PERC Solar Cells
Perc 182mm size solar cell
Grade A quality
More than 21% efficiency
10 Bus Bar, Anti PID
Junction Box
IP68 water proof junction box
Silver or Black frame
Max DC 1500V
25 Years warranty
Factory
Packing & Transport
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
|
Container(
60Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
30
|
30
|
30
|
|
PCS/Container
|
400
|
840
|
924
|
|
Container(
72Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
27
|
27
|
27
|
|
PCS/Container
|
300
|
572
|
715
|
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
|
Payment Terms
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|
|||
|
|
FOB
|
|
|
|
|||
|
|
CNF
|
|
|
|
|||
|
|
CIF
|
|
|
|
|||
|
|
LC
|
L/C amount above 300,000 usd, we can accept L/C at sight
|
|
|
|||
|
|
West Union
|
Accpetable
|
|
|
|||
|
Delivery Time
|
7~15days after receiving payment for one container
|
|
|
|
|||
Payment&Warranty
|
Payment Terms
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|
|||
|
|
FOB
|
|
|
|
|||
|
|
CNF
|
|
|
|
|||
|
|
CIF
|
|
|
|
|||
|
|
LC
|
L/C amount above 300,000 usd, we can accept L/C at sight
|
|
|
|||
|
|
West Union
|
Accpetable
|
|
|
|||
|
Delivery Time
|
7~15days after receiving payment for one container
|
|
|
|
|||
Project
5KW Residential Solar Power System in Poland
220KW Solar Power Plant in Sweden
500KW in Poland 300KW in United Sates
2MW Solar Power Plant in Germany
