Quick Details
-
Size:
-
12.4m*2.50m*1.55m (Outside)
-
Place of Origin:
-
Shandong, China
-
Axle:
-
2Axles.13ton
-
Landing Gear:
-
Standard 28Ton
-
Suspension System:
-
Mechanical Air Suspension
-
Rim:
-
9.0-20*8 Pcs
-
Tire:
-
12.00R22.5*8Pcs
-
King pin:
-
2"(50mm) Or3.5"(90mm)
-
Main Beam:
-
Q345B / T700 Steel
-
Twist Locks:
-
4pcs/8pcs/12pcs
-
Accessories:
-
One standard tool box
-
Color:
-
Custom's Requirement
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
ChenLu
-
Size:
-
12.4m*2.50m*1.55m (Outside)
-
Place of Origin:
-
Shandong, China
-
Axle:
-
2Axles.13ton
-
Landing Gear:
-
Standard 28Ton
-
Suspension System:
-
Mechanical Air Suspension
-
Rim:
-
9.0-20*8 Pcs
-
Tire:
-
12.00R22.5*8Pcs
-
King pin:
-
2"(50mm) Or3.5"(90mm)
-
Main Beam:
-
Q345B / T700 Steel
-
Twist Locks:
-
4pcs/8pcs/12pcs
-
Accessories:
-
One standard tool box
-
Color:
-
Custom's Requirement
Video description
Products Description

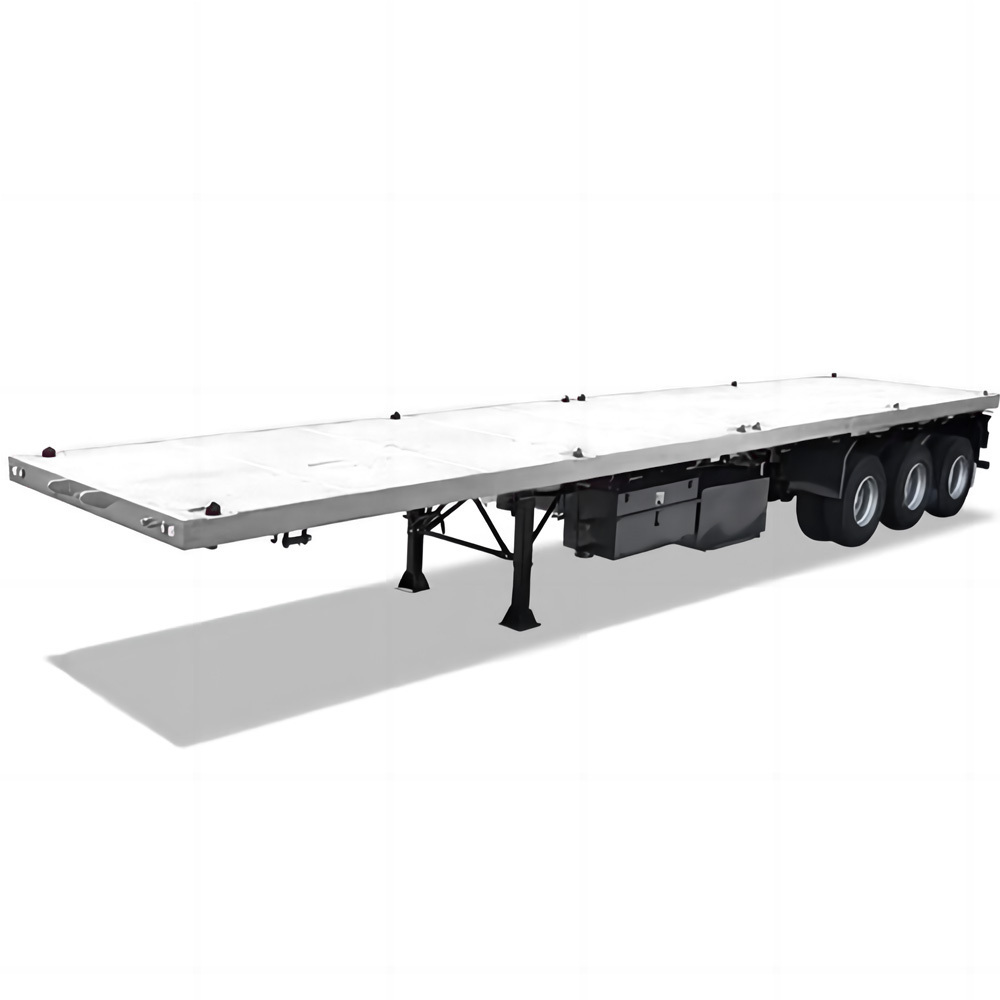

High Quality 40ft Steel Flat Bed Semi Trailer 3-Axle Container Truck Trailer for Heavy Hauling
Description
Flatbed semi-trailer is very versatile and is mainly used for medium and long-distance freight transportation.Flatbed semi-trailer uses high-strength international steel material, and the whole trailer has light weight and guarantees its resistance to twisting,shock and bounce, and meets different road load carrying capacity.
|
Specification
|
|
|
|
|||
|
Dimension
|
12.4m×2.50m×1.55m (Outside)
|
Payload
|
40T
|
|||
|
Tare weight
|
About 6.5 T
|
Twist lock
|
12uints
|
|||
|
Frame Floor
|
The Thickness is 3mm pattern
|
Axle
|
3 axles, 13Ton 16ton brake pads
|
|||
|
Main beam
|
|
|
|
|||
|
Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes.
|
|
|
|
|||
|
Frame Beam
|
|
|
|
|||
|
Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 12mm,width 140mm, main beam height 500mm
|
|
|
|
|||
|
Landing Gear
|
Fuwa BRAND 28T lifting capacity with two speed
|
King Pin
|
2 00 inch bolt-in king pin
|
|||
|
Suspension
|
Mechanical suspension reinforced type
|
Leaf Spring
|
90mm(W)*13mm(T)*10 Layer
|
|||
|
Rim
|
9.0-20*12pcs
|
Tire
|
12R22.5*12 pcs Triangle tire
|
|||
|
Accessories
|
One standard tool box
|
Spare tire rack
|
One
|
|||
|
Painting
|
dusting
|
Shipping Terms
|
By container
|
|||
|
Electrical
system
|
|
|
|
|||
|
24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights
conform to European standard, rear front and side reflectors
|
|
|
|
|||
|
Pneumatic Braking System
|
|
|
|
|||
|
Dual line pneumatic brake system,T30 air chamber ,40L x2 air tanks, Emergency relay valve
|
|
|
|
|||
Details Images
Packing ＆ delivery
About transportation
When transporting flatbed trailers, many customers use container transportation, which has low transportation costs and short transportation time. But the bad thing is that the rear of the platform semi-trailer needs to be assembled.
Some customers use bulk carriers or ro-ro ships. As the cargo ship swells, the flatbed trailer is sprayed with wax and covered with tarps.
