Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dacai
-
Resolution:
-
800*480
-
Active Area:
-
153.2mm*84.8mm
-
Color:
-
65K colour, 16-bit RGB
-
Touch panel:
-
capacitive touch
-
Voltage:
-
4.5-30V
-
Contrast Ratio:
-
200:1
-
Product demension:
-
210.0mm*149.8mm*24mm
-
Communicate Interface:
-
RS232
-
Brightness:
-
220
Quick Details
-
Type:
-
TFT LCD, TFT
-
Display Size:
-
7.0 inch
-
Supplier Type:
-
Manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dacai
-
Resolution:
-
800*480
-
Active Area:
-
153.2mm*84.8mm
-
Color:
-
65K colour, 16-bit RGB
-
Touch panel:
-
capacitive touch
-
Voltage:
-
4.5-30V
-
Contrast Ratio:
-
200:1
-
Product demension:
-
210.0mm*149.8mm*24mm
-
Communicate Interface:
-
RS232
-
Brightness:
-
220
Product Description

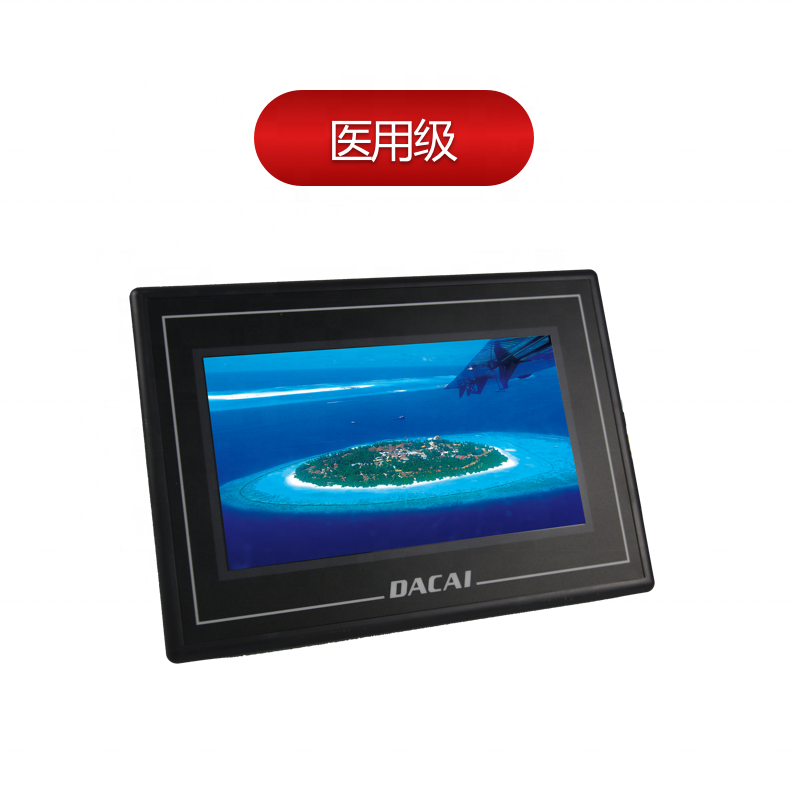

DC 80480K M0 70 _1111_0C ,6P38 vertical is a 7-inch capacitive touch medical grade serial interface screen with 800*480 resolution.(The package will not contain speaker and battery,due to international air express policy,thanks for understanding.)Before mass production, all serial screens of Dacai have carried out a series of process reliability tests: high and low temperature, ESD, group pulse, radiation, touch life and other tests to ensure product quality.
|
Product Specification |
|
|
Model Description |
DC 80480K M0 70 _1111_0T ,6P38 vertical (RS232/TTL, resistive touch ) DC 80480K M0 70 _1111_0C ,6P38 vertical (RS232/TTL, capacitive touch ) DC80480KM070_1111_4 T ,6P38 vertical (RS 485 , resistive touch ) DC80480KM070_1111_4 C ,6P38 vertical (RS 485 , capacitive touch ) |
|
Product Series |
M series,Medical grade |
|
C ore Processor |
400M SOC processor |
|
Operati ng System |
No operating system (OS) , c an run once power on |
|
Protocol Type |
D efault Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU, XGUS protocol |
|
Script language |
LUA script, The screen can run user-written logic, protocol and algorithm functions |
|
Size |
7 inch |
|
Resolution |
800*480 |
|
Installation Display |
Support 0°/90°/180°/270°rotate display |
|
Memory space |
128Mbit |
|
Font Library |
Built-in vector font,edge anti-aliasing,including ASCII,GBK,GB2312 and UNICODE ( Global language ) libraries.Customized computer font display |
|
Image Storage |
Support JPEG,PNG (semi-transparent / full transparent) image,support for any size image storage. Accumulate to store about 185 full-screen images (calculated by size 80 KB /frame,BMP format is not recommended).The image compression ratio is different,this value will float up and down . |
|
Color |
65K color , 16 -bit RGB |
|
Voltage |
4.5-30 V |
|
Power Consumption |
Darkest backlight non-speaker:0. 8 W |
|
|
Darkest backlight with speaker: 1.9 W |
|
|
Brightest backlight non-speaker: 2.2 W |
|
|
Brightest backlight with speaker: 3.3 W |
|
Communicat e Interface |
RS232/TTL( Factory default 232 level ) or RS485 |
|
Communicate Baudrate |
RS232: 1200 ~ 921600bps, typical baud rate: 115200bps RS485: 1200 ~ 115200 bps, typical baud rate: 9600 bps |
|
Interface Specification |
2EDG3.81-6P |
|
Image Local Download |
SD card |
|
Firmware local/remote upgrade |
Insert SD card to upgrade locally / support user motherboard remote serial port to upgrade screen firmware |
|
Image remote upgrade |
Support users to remotely use their motherboard serial port to upgrade screen related picture projects, fonts, configuration files, etc. |
|
Real - time clock( RTC ) |
Support clock,countdown, timer,etc.function ) |
|
Active Area of Displaying(AA) |
L * W = 153.2 mm* 84.8 mm |
|
Product Dimension( L*W*H ) |
210.0 mm* 149.8 mm* 24 mm |
