Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
1570*50mm or customized
-
Weight:
-
0.6 KG
-
Working Temperature Range:
-
0 - 300 ℃
-
Core Components:
-
silicone rubber heater
-
Product name:
-

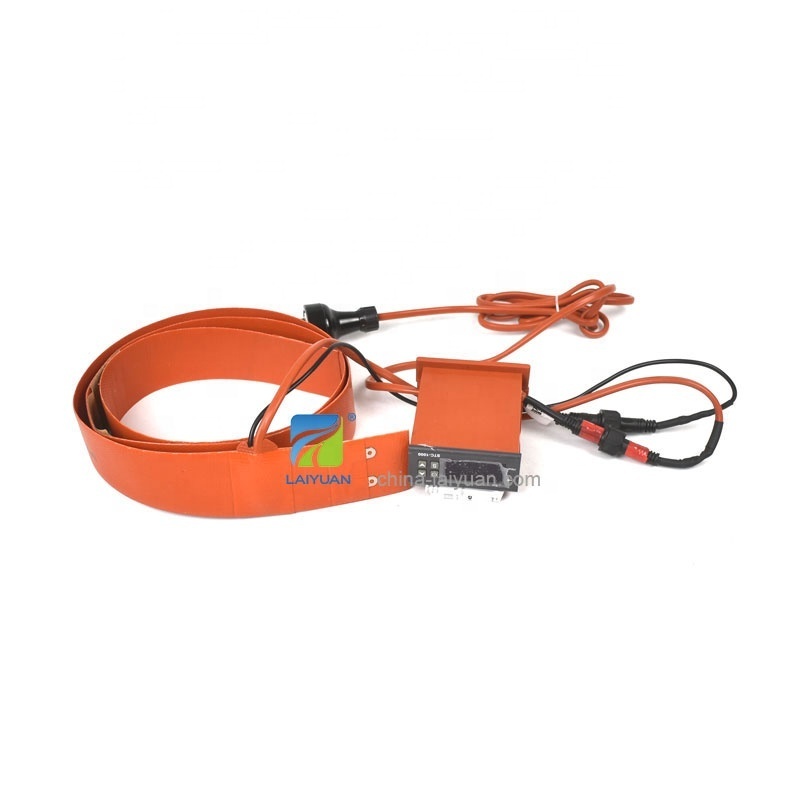

Silicone Rubber Heater Mat Heating Pad With Temperature Control
-
Usage:
-
Oil drum
-
Power density:
-
0.10~1.50w/cm²
-
Output:
-
Up to 5kw/㎡
-
Insulating resistance:
-
≥50MΩ
-
Temperature controller:
-
Dial, Digital thermostat or thermistor, thermal protection
-
Size Deviation:
-
±0.5%
-
Wattage Tolerance:
-
±5%
-
Compressive strength:
-
1500v/5s
-
Certification:
-
CE, ROHS
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
120v or customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
1570*50mm or customized
-
Weight:
-
0.6 KG
-
Working Temperature Range:
-
0 - 300 ℃
-
Core Components:
-
silicone rubber heater
-
Product name:
-
Silicone Rubber Heater Mat Heating Pad With Temperature Control
-
Usage:
-
Oil drum
-
Power density:
-
0.10~1.50w/cm²
-
Output:
-
Up to 5kw/㎡
-
Insulating resistance:
-
≥50MΩ
-
Temperature controller:
-
Dial, Digital thermostat or thermistor, thermal protection
-
Size Deviation:
-
±0.5%
-
Wattage Tolerance:
-
±5%
-
Compressive strength:
-
1500v/5s
-
Certification:
-
CE, ROHS
Products Description
Silicone Rubber Heater
The silicone rubber heater sold by our company is a soft electric heating film element assembled from silicone rubber with high temperature resistance, high thermal conductivity, good insulation, good strength, high temperature resistant fiber reinforcing material, and metal heating film circuit. As a result, it has good heat transfer, it is flexible so that the object to be heated can be closely contacted, and the product has high thermal efficiency. We produce different shapes of silicone heating pads for various applications,
support customization
, welcome to inquire!
Product Pramameters
|
Poduct Name
|
Industrial Electrical Flexible Silicone Rubber Heater Heating Plate
|
|
|
|
|||
|
Material
|
Silicone
|
|
|
|
|||
|
Max. Temperature
|
200 degree
|
|
|
|
|||
|
Insulating Resistance
|
≥50MΩ
|
|
|
|
|||
|
Size Deviation
|
±0.5%
|
|
|
|
|||
|
Dimension
|
Customized
|
|
|
|
|||
|
Output
|
Up to 5KW/M2
|
|
|
|
|||
|
Wattage Tolerance
|
±5%
|
|
|
|
|||
|
Compressive Strength
|
1500V/S
|
|
|
|
|||
|
Thermocouple
|
K or J type,PT100,PT1000
|
|
|
|
|||
|
Temperature Controller
|
Dial, Digital thermostat or thermistor, thermal protection or thermocouples etc
|
|
|
|
|||
|
Power Lead Wire
|
Silicone rubber, SJ Power Cord, or PTFE insulated stranded wire
|
|
|
|
|||
|
High Voltage Resistance
|
1.5KV
|
|
|
|
|||
|
Installation
|
3M adhesive backing /Spring to hug /Screw mounting /No Fixed Installation
|
|
|
|
|||
|
Plug
|
US/UK/Euro
|
|
|
|
|||
|
Certificate
|
CE, ROHS
|
|
|
|
|||
|
Application
|
Oil drum heater 200L
|
Oil drum heater
20L
|
Oil drum heater 200L
|
Oil drum heater 200L
|
|||
|
Size
|
250*1740
|
200*860
|
125*1740
|
150*1740
|
|||
|
Capacity
|
200v 2000w
|
200v 800w
|
200v 1000w
|
200v 1000w
|
|||
|
The temperature regulates
|
30~150℃
|
|
|
|
|||
|
Weight
|
Invite: 0.5kg
|
Invite: 0.4kg
|
Invite: 0.3kg
|
Invite: 0.35kg
|
|||
Product Features
1. Thinness, lightness, sticky and flexibility
2. Improve heat transfer, accelerate warming and decrease power under the process of operation
3. Heat fast and high thermal conversion efficiency
4. Flexible customized shapes
5. Surface Sensing Thermostats
6. Adjustable Thermostats dial or digital
7. Equipped with Thermocouples (K, J or PT100 etc)
8. Equipped with Thermistor
9. Equipped with Thermal Protectors
10. A fitted stainless steel spring makes the mounting easy
11. Can adjust and display temperature as your need
Product Application
Silicone Heating Plates beneficial to take out liquid and coagulum from drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.
Therefore the product is mainly used for:
1. Drums and other vessels and viscosity control and asphalt storage
2. Food heating pad and candy making hot plates
3. Industry heating blanket
4. Thermal transfer equipment
5. Prevent condensation in motors or instrument cabinets
6. Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings
7. Composite bonding processes
8. Airplane engine heaters and aerospace industry
9. 3D printer Hotbed
10. Curing of plastic laminates
11. Computer peripherals such as laser printers, duplicating machines
Production and Processing
Packing and Delivery
About Packaging
1. Inner anti-collision broken plastic,outer wooden case or carton box.
2. If your packages need to be customized, please contact us for communication.
