Quick Details
-
Weight:
-
8000 kg
-
Dimension(L*W*H):
-
7000*1135*3450mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO CE
-
Rear tyre pressure:
-
0.4Mpa
-
Front tyre pressure:
-
0.5Mpa
-
Type specification:
-
Rail tyre
-
Parking brake:
-
Manual disk brake
-
Service brake:
-
Air brake
-
Rotary reducer:
-
WE25
-
Drum lift time:
-
3.5s
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LTMG
-
Weight:
-
8000 kg
-
Dimension(L*W*H):
-
7000*1135*3450mm
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO CE
-
Rear tyre pressure:
-
0.4Mpa
-
Front tyre pressure:
-
0.5Mpa
-
Type specification:
-
Rail tyre
-
Parking brake:
-
Manual disk brake
-
Service brake:
-
Air brake
-
Rotary reducer:
-
WE25
-
Drum lift time:
-
3.5s
Product Shows
Advantages
|
|

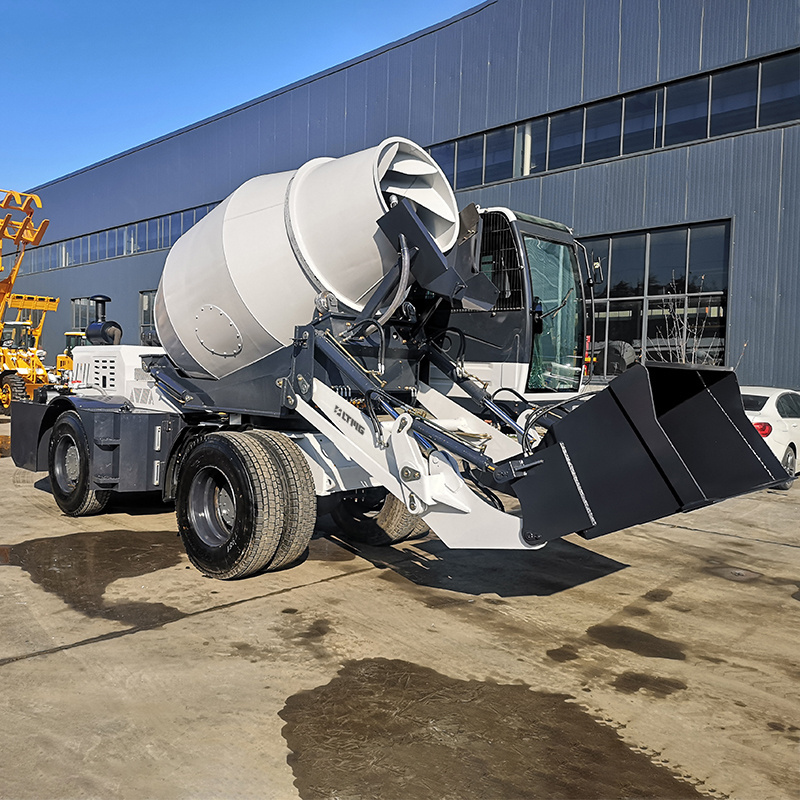

LTM40
|
|
|
The drum rotates 270 ° and can be lifted and lowered
|
|
Overall dimension (L*W*H)
|
7000*1135*3450mm
|
|
Wheel base (mm)
|
2350mm
|
|
Wheel tread
|
2030mm
|
|
Curb Weight（kg）
|
7600kg
|
|
Maximum speed (km / h)
|
40
|
|
Maximum climbing gradient（°）
|
40°
|
|
Steering angle
|
28°±1.5°
|
|
Braking form
|
Pneumatic cam type
|
|
Model
|
YN48GBZ
|
|
Type
|
4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged
|
|
Total piston displacement
|
4.8
|
|
Rated Power (kW/r/min)
|
92/2400
|
|
Nm/rpm
|
445-455/1400-1600
|
|
Emission standards
|
Naitonal II emission standard
|
|
Torque converter
|
280 split gearbox torque converter
|
|
Gearbox mode
|
280 power shift transmission
|
|
Gears
|
4 forward shift 4reverse shift
|
|
Maximum speed
|
40km/h
|
|
Geometric volume of drum
|
6.3m³
|
|
Rotation speed of drum
|
15-20 rpm
|
|
Concrete output
|
4m³/Batch
|
|
Drum lift time
|
3.5s
|
|
Reducer
|
4F open gear drive reduction
|
|
Motor
|
BM5E4
|
|
Rotary reducer
|
WE25
|
|
Service brake
|
Air brake
|
|
Parking brake
|
Manual disk brake
|
|
Type specification
|
Rail tyre
|
|
Front tyre pressure
|
0.5Mpa
|
|
Rear tyre pressure
|
0.4Mpa
|
ODM/OEM
