Quick Details
-
Brand Name:
-
kenchi, KENCHI
-
Voltage:
-
380, 380vV50Hz
-
Dimension(L*W*H):
-
1200*670*1750mm
-
Weight (KG):
-
400 KG
-
Function:
-
grinding
-
Material:
-
SUS 304
-
Capacity:
-
60-120kg/h
-
Main shaft rotation speed:
-
2920rpm
-
Material granularity:
-
10nm
-
Sieve screen fineness:
-
60-120 meshs
-
Pulverizing motor:
-
5.5 kw
-
Dust removing motor:
-
1.5 kw
Quick Details
-
Output (kg/h):
-
60 - 120 kg/h
-
Power (kW):
-
7
-
Place of Origin:
-
China
-
Brand Name:
-
kenchi, KENCHI
-
Voltage:
-
380, 380vV50Hz
-
Dimension(L*W*H):
-
1200*670*1750mm
-
Weight (KG):
-
400 KG
-
Function:
-
grinding
-
Material:
-
SUS 304
-
Capacity:
-
60-120kg/h
-
Main shaft rotation speed:
-
2920rpm
-
Material granularity:
-
10nm
-
Sieve screen fineness:
-
60-120 meshs
-
Pulverizing motor:
-
5.5 kw
-
Dust removing motor:
-
1.5 kw
Product Detail
| Function | Crushing, Dust collection |
| Material | SUS304 or SUS316 |
| Capacity | 100-300kg/h |
| Main shaft rotation speed | 3800 rpm |
| Material granularity | 12 mm |
| Sieve screen fineness | 60-120 meshs |
| Pulverizing motor | 5.5 kw |
| Dust collection motor | 1.5 kw |
| Contral | Button |
| Standard | GMP |

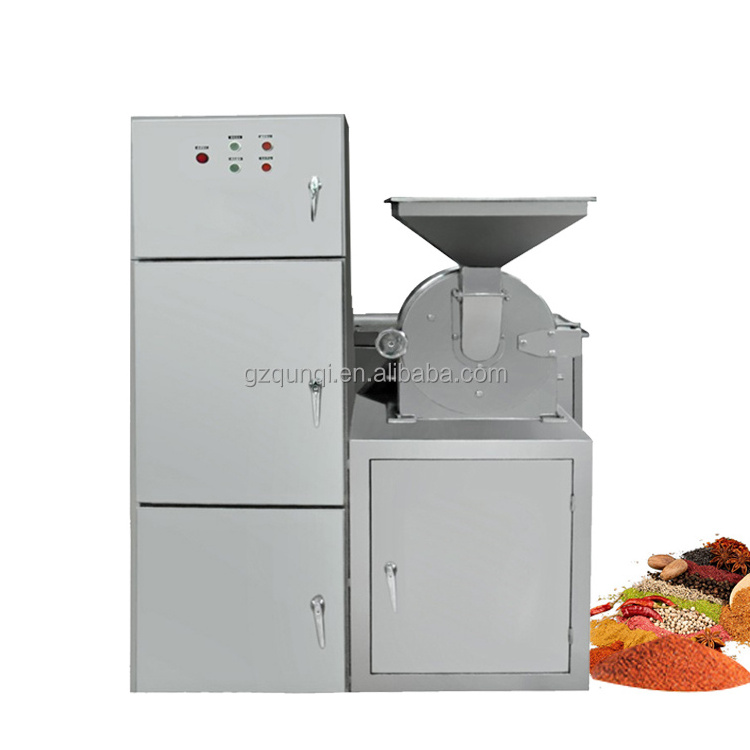

Description:
This machine is suitable for crushing brittle materials in chemical, herbs, food and other industries. It is a new generation of crushing equipment integrating crushing and dust collection, which is widely used.
Working method:
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the discharge bin by centrifugal force, The dust from grinding is filtered and recycled via the cloth bag or filter of the collection bin. thus avoiding dust flying, improve the utilization of raw material and decrease the production cost.
Features:
1. With dust collection system, resolves the problem of flying dust during the shattering process.
2. Firm and stable running and high efficiency.
3.Whole machine is made of stainless steel SS304.
4.Designed according to GMP standard.
5. No dead corner, easy to cleaning, low noise.
Drawing:
Before And After Comparison:
