Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Smart automation
-
Model Number:
-
90ZYT
-
Torque:
-
customed
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
VDE
Quick Details
-
Speed(RPM):
-
customed
-
Continuous Current(A):
-
customed
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Smart automation
-
Model Number:
-
90ZYT
-
Torque:
-
customed
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
VDE
dc electric motor for go kart

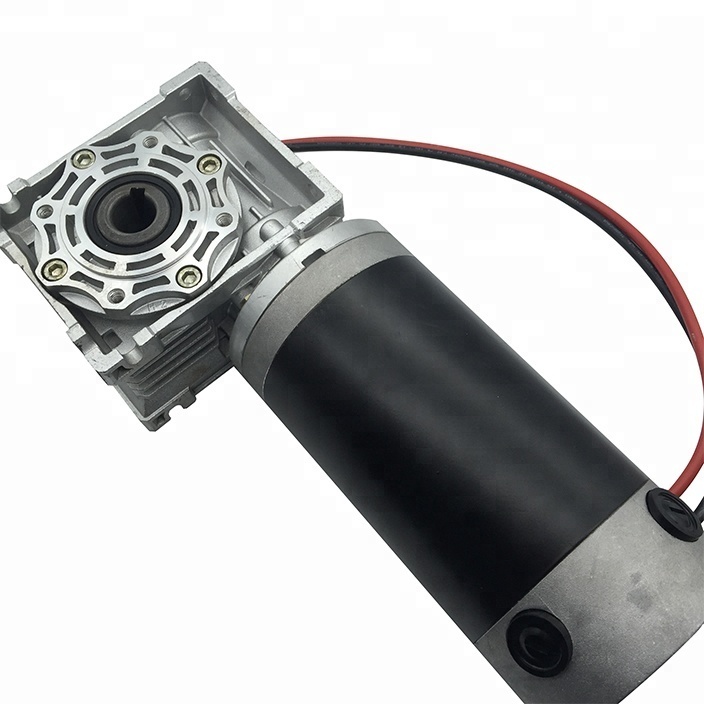

NMRV40.90ZYT SERIES PM DC WORM GEAR MOTOR
NMRV40.90ZYT SERIES Gear Motor Drawing:
90ZYT Series Motor Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B CE and ROHS certified
|
Model |
Rated voltage VDC |
No load speed rpm |
Rated speed rpm |
Rated torque N.m |
Output power W |
Stall torque N.m |
Motor Length mm |
|
90ZYT01L |
12/24/36/48 |
2000 |
1500 |
1.0 |
160 |
4.1 |
155 |
|
90ZYT02L |
12/24/36/48 |
2000 |
1500 |
1.5 |
320 |
7.1 |
199 |
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
NMRV40.90ZYT01L Worm Gear Motor Specification:
|
Reduction ratio |
5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
|
Transmission efficiency |
90% |
85% |
85% |
80% |
75% |
75% |
70% |
65% |
60% |
55% |
50% |
50% |
|
No load speed(rpm) |
400.0 |
266.7 |
200.0 |
133.3 |
100.0 |
80.0 |
66.7 |
50.0 |
40.0 |
33.3 |
25.0 |
20.0 |
|
Rated speed(rpm) |
300.0 |
200.0 |
150.0 |
100.0 |
75.0 |
60.0 |
50.0 |
37.5 |
30.0 |
25.0 |
18.8 |
15.0 |
|
Rated torque (N.m) |
4.5 |
6.4 |
8.5 |
12.0 |
15.0 |
18.8 |
21.0 |
26.0 |
30.0 |
33.0 |
40.0 |
50.0 |
NMRV40.90ZYT02L Worm Gear Motor Specification:
|
Reduction ratio |
5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
|
Transmission efficiency |
90% |
85% |
85% |
80% |
75% |
75% |
70% |
65% |
60% |
55% |
50% |
50% |
|
No load speed(rpm) |
400.0 |
266.7 |
200.0 |
133.3 |
100.0 |
80.0 |
66.7 |
50.0 |
40.0 |
33.3 |
25.0 |
20.0 |
|
Rated speed(rpm) |
300.0 |
200.0 |
150.0 |
100.0 |
75.0 |
60.0 |
50.0 |
37.5 |
30.0 |
25.0 |
18.8 |
15.0 |
|
Rated torque (N.m) |
6.8 |
9.6 |
12.8 |
18.0 |
22.5 |
28.1 |
31.5 |
39.0 |
45.0 |
49.5 |
60.0 |
75.0 |
BRUSHLESS VERSION
