Quick Details
-
Brand Name:
-
LIAO
-
Model Number:
-
F12-1865150
-
Battery Size:
-
3.2V 12Ah
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
325 g
-
The charging ratio:
-
1C
-
The discharge rate:
-
6C
-
Dimension:
-
150*65*18mm
-
Cycle life:
-
more than 2000 times
-
Impedance:
-
≤1.2mΩ
-
Standard Charge Current:
-
0.2C
-
Max continuous discharge current:
-
3C
-
Charge cut-off voltage:
-
3.65V
-
Discharge cut-off voltage:
-
2V
-
Storage Temp.:
-
-20~45℃
-
-20℃ Discharge performance:
-
≥55% Nominal capacity
-
60℃ Discharge performance:
-
≥98% Nominal capacity
-
Certification:
-
CE,UN38.3,IEC62133,EN62133
Quick Details
-
Storage Type:
-
-20~45℃
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
LIAO
-
Model Number:
-
F12-1865150
-
Battery Size:
-
3.2V 12Ah
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
325 g
-
The charging ratio:
-
1C
-
The discharge rate:
-
6C
-
Dimension:
-
150*65*18mm
-
Cycle life:
-
more than 2000 times
-
Impedance:
-
≤1.2mΩ
-
Standard Charge Current:
-
0.2C
-
Max continuous discharge current:
-
3C
-
Charge cut-off voltage:
-
3.65V
-
Discharge cut-off voltage:
-
2V
-
Storage Temp.:
-
-20~45℃
-
-20℃ Discharge performance:
-
≥55% Nominal capacity
-
60℃ Discharge performance:
-
≥98% Nominal capacity
-
Certification:
-
CE,UN38.3,IEC62133,EN62133
Product Description
Specification
The

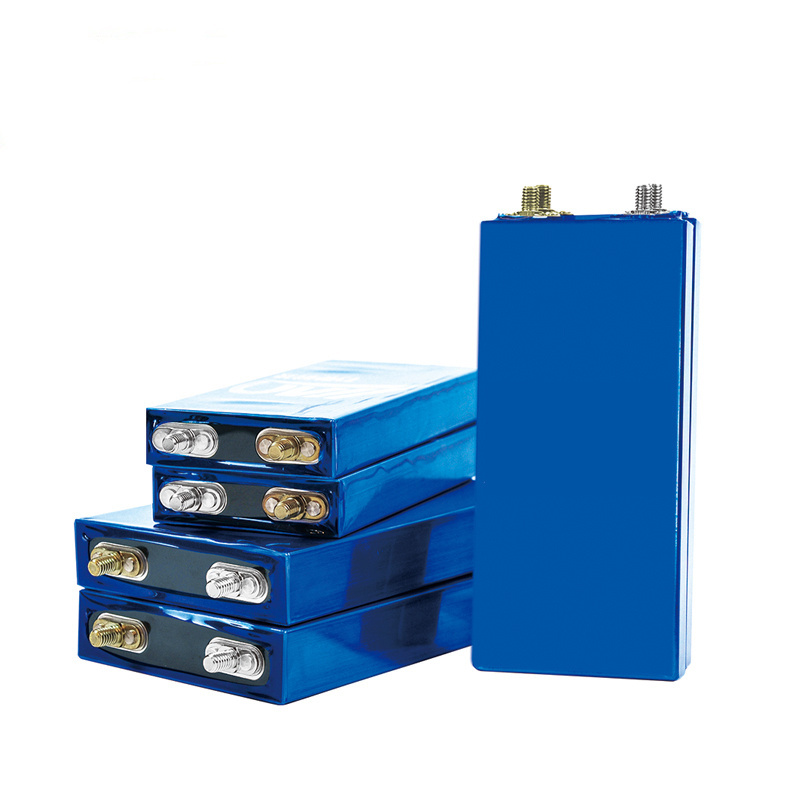

3.2V 12Ah prismatic LiFePO4 battery
cell passed the relevant tests of the Northern Automobile Quality Supervision, Inspection and Appraisal Institute on September 7, 2011. The battery cell proved has high safety and will not catch fire or explode under extreme conditions such as high temperature, short circuit, drop, and needle puncture.
|
item
|
value
|
|
Warranty
|
6 months
|
|
Anode Material
|
LFP
|
|
Chargeable
|
Yes
|
|
Application
|
Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
|
|
Battery Size
|
3.2V 12Ah
|
|
Brand Name
|
LIAO
|
|
Certification
|
CE,UN38.3,IEC62133,EN62133
|
|
Model Number
|
F12-1865150
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Weight
|
325 g
|
|
The charging ratio
|
1C
|
|
The discharge rate
|
6C
|
|
Storage Type
|
interior
|
|
Dimension
|
150*65*18mm
|
|
Cycle life
|
more than 2000 times
|
|
Impedance
|
≤1.2mΩ
|
|
Standard Charge Current
|
0.2C
|
|
Max continuous discharge current
|
3C
|
|
Charge cut-off voltage
|
3.65V
|
|
Discharge cut-off voltage
|
2V
|
|
Storage Temp.
|
-20~45℃
|
|
-20℃ Discharge performance
|
≥55% Nominal capacity
|
|
60℃ Discharge performance
|
≥98% Nominal capacity
|
Prismatic Cell Compared With Cylindrical
1. Higher safety performance.
1. Higher safety performance.
2. More cycle lifes >3000 times.
3. Higher energy, Can Deliver higher discharge current.
4. Easier composed ways.
5. Good consistency.
5. Good consistency.
Excellent service and reliable quality help us win a worldwide reputation, for example:
* Germany, France, Netherlands, Spain,
United Kingdom…
* USA, Canada, Mexico, Brazil…
* Australia, Philippine, Thailand, Singapore…
* Korea, Japan, India…
* South Africa, Nigeria…
* And other countries
1. MOQ:
Usually 100 pcs for battey cell and 50 pcs for battery pack. However, small quantity is negotibable for trial orders.
2. Sample:
Sample order is welcomed, generally not free.
3. OEM＆ODM:
Welcomed.
