China Hydraulic rubber hose pipe large diameter rubber hydraulic hose

China Hydraulic rubber hose pipe large diameter rubber hydraulic hose

FOB Reference Price: Get Latest Price

≥3000 Meters

US $3

≥4000 Meters

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: R1

Product name:: Flexible Hydraulic Hose SAE R1/1SN

Material:: Rubber

Application:: Transport base fuel lubricating oil other mineral oils

Color:: Black

Certification:: ISO9001

Packing:: Woven Bag Wrapped

Sample:: Fee

Length:: 20m 40m 50m 100m

Surface:: Smooth or Wrapped

Size:: 1/4-2''

Quick Details

Processing Service:: Moulding, Cutting

Place of Origin:: Tianjin, China

Brand Name:: BNTFLEX

Model Number:: R1

Product name:: Flexible Hydraulic Hose SAE R1/1SN

Material:: Rubber

Application:: Transport base fuel lubricating oil other mineral oils

Color:: Black

Certification:: ISO9001

Packing:: Woven Bag Wrapped

Sample:: Fee

Length:: 20m 40m 50m 100m

Surface:: Smooth or Wrapped

Size:: 1/4-2''

Product Description

HYDRAULIC HOSE

DIN EN 853 1SN/SAE J517 100 R1AT

STEEL WIRE BRAIDED HYDRAULIC HOSE

Correspond/Exceed the standards of DIN EN853 1SN/ISO 1436

KEY ADVANTAGES

• Inner tube:oil resistant synthetic rubber
• Reinforcement : one high tensile steel wire braid

• Cover : weather,abrasion and temperature resistant synthetic rubber cover

• Continuous service temperature range :-40℃~+100℃

• Applicable specs: EN 853 1SN; SAE 100 R1AT; ISO 1436 1SN/R1AT

MAIN APPLICATIONS

The hydraulic hose range is dedicated to hydraulic systems and equipment in many different sectors, such as construction machines, mining, industrial processes, agriculture, road construction equipment, drilling, forestry machines, material handling and lifting, road transportation, marine and offshore, and many others. High pressure hydraulics is a means to transmit, control and distribute energy and power using a pressurised liquid, most often oil and water-based fluids, as a medium.

HOSE SIZE							增强层外径R.O.D	胶管最大外径O.D	最大工作压力 MAX W.P.	最小爆破压力 MIN B.P	最小弯曲半径 MIN B.R	长度 LENGTH
DN	DASH	mm	inch	m m	mm	Mpa	Mpa	mm	mm
5	-3	5.0±0.4	3/16˝	9.5±0.6	12.5	25.0	100.0	90	50/20
6	-4	6.0±0.5	1/4˝	11.1±0.6	14.1	22.5	90.0	100	50/20
8	-5	8.0±0.5	5/16˝	12.7±0.6	15.7	21.5	86.0	115	50/20
10	-6	10.0±0.5	3/8˝	15.1±0.6	18.1	18.0	72.0	130	50/20
12.5	-8	13.0±0.5	1/2˝	18.3±0.8	21.5	16.0	64.0	180	50/20
16	-10	16.0±0.5	5/8˝	21.4±0.8	24.7	13.0	52.0	200	50/20
19	-12	19.0±0.5	3/4˝	25.4±0.8	28.6	10.5	42.0	240	50/20
25	-16	22.0±0.5	1˝	33.3±0.8	36.6	8.7	36.0	300	40/20
32	-20	25.0±0.5	1-1/4˝	33.3±0.8	44.8	6.2	26.0	420	40/20
38	-24	32.0±0.5	1-1/2˝	46.8±1.2	52.1	5.0	20.0	500	40/20
51	-32	38.0±0.5	2˝	60.3±1.6	65.9	4.0	16.0	630	40/20

Detailed Images

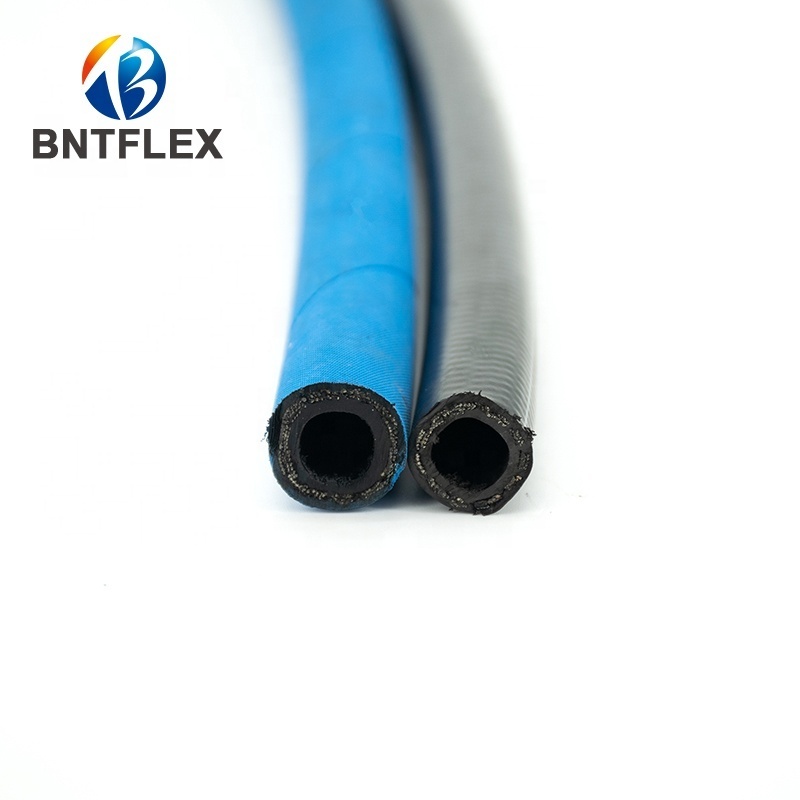

STEEL WIRE BRAIDED HYDRAULIC HOSE DIN EN 853 1SN/SAE J517 100 R1AT

• Inner tube:oil resistant synthetic rubber
• Reinforcement : one high tensile steel wire braid• Cover : weather,abrasion and temperature resistant synthetic rubber cover
•Continuous service temperature range:-40℃~+100℃
•Applicable specs: EN 853 1SN; SAE 100 R1AT; ISO 1436 1SN/R1AT

STEEL WIRE BRAIDED HYDRAULIC HOSE DIN EN 853 1SN/SAE J517 100 R1AT

STEEL WIRE BRAIDED HYDRAULIC HOSE DIN EN 853 1SN/SAE J517 100 R1AT
