Quick Details
-
Model Number:
-
YCF8-63PVS
-
Assembly Fuse:
-
YCF8-1085/YCF8-1485
-
Rated Voltage:
-
1500VDC
-
Rated Current(A):
-
2 3 4 5 6 8 10 12 15 20 25 30 32 40 50
-
Fuse size:
-
10*85/14*85
-
Use category:
-
GPV
-
Certificate:
-
CE,CB,TUV
-
Standard:
-
IEC 60269-6
-
Installation method:
-
TH-35 Din-rail installation
-
Product Type:
-
Photovoltaic/direct-current
-
Time constant(ms):
-
1-3ms
Quick Details
-
Breaking Capacity:
-
Low
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
YCF8-63PVS
-
Assembly Fuse:
-
YCF8-1085/YCF8-1485
-
Rated Voltage:
-
1500VDC
-
Rated Current(A):
-
2 3 4 5 6 8 10 12 15 20 25 30 32 40 50
-
Fuse size:
-
10*85/14*85
-
Use category:
-
GPV
-
Certificate:
-
CE,CB,TUV
-
Standard:
-
IEC 60269-6
-
Installation method:
-
TH-35 Din-rail installation
-
Product Type:
-
Photovoltaic/direct-current
-
Time constant(ms):
-
1-3ms
Product catalog
Product Description

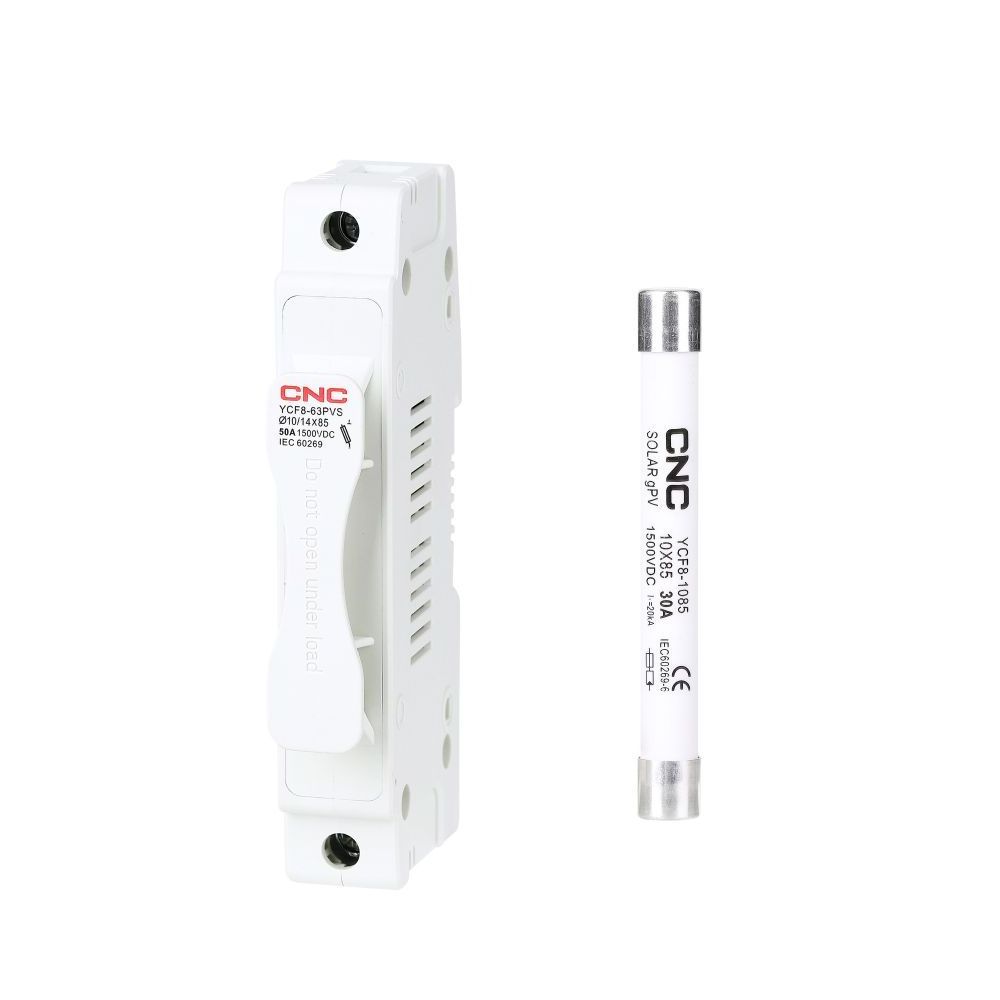

Din Rail 16A Link 40A 1500v Panel Box Dc Gpv Solar Photovoltaic Pv Fuse
Product Detail
| Assembly Fuse | YCF8-1085/YCF8-1485 |
| Rated Voltage | 1500VDC |
| Rated Current(A) | 2 3 4 5 6 8 10 12 15 20 25 30 32 40 50 |
| Fuse size | 10*85/14*85 |
| Use category | GPV |
| Certificate | CE,CB,TUV |
| Standard | IEC 60269-6 |
| Installation method | TH-35 Din-rail installation |
| Product Type | Photovoltaic/direct-current |
| Time constant(ms) | 1-3ms |
| Product Keywords | Fuse Link 40A,PV 1500v fuse box,solar panel fuse box |
General
Photovoltaic fuse YCF8- PVS series is applicable to DC distribution lines with rated
voltage not exceeding DC1500V, rated current not exceeding 50A and rated short
circuit capacity not exceeding 50kA; It is used for line overload and short circuit
protection. It is mainly used in energy storage systems and solar photovoltaic
combiner boxes as short circuit and overload protection for solar photovoltaic power
generation devices, batteries and other semiconductor devices.
Standards: IEC 60269-6 UL248-19
Certificate: CE, CB, TUV, etc
