Quick Details
-
Voltage:
-
380V, Customized
-
Dimension(L*W*H):
-
1800 *1400 *1100mm
-
Power (kW):
-
15KW
-
Weight:
-
700
-
product name:
-

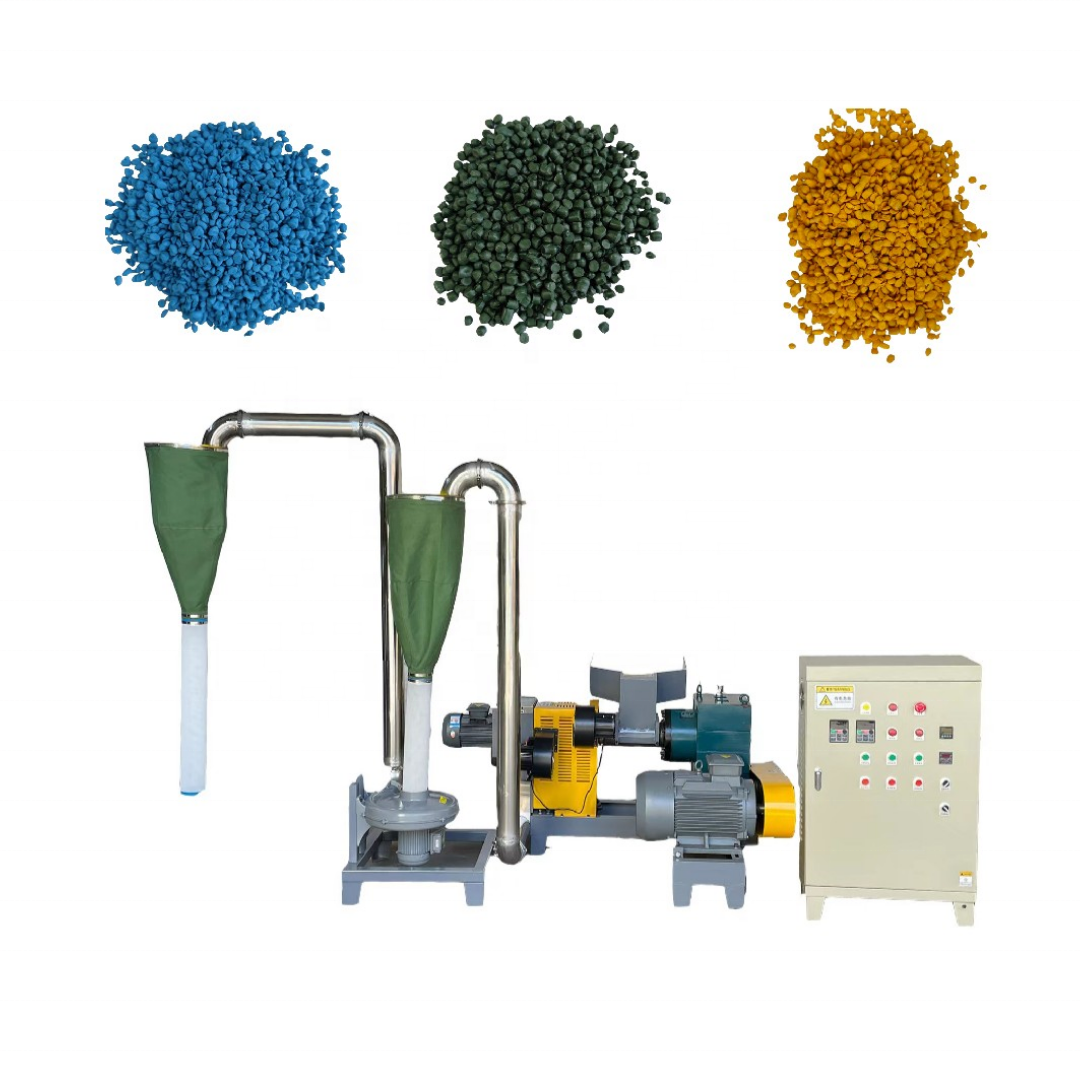

Air-Cooled Recycling Pelletizer Machine with Single Screw Design
-
keyword:
-
pelletizer machine
-
Output:
-
75mm screw machine:40kgs/hr, 90mm screw machine: 70-80kgs/hr
-
suitable material:
-
PE PP PO PLA PVC film
-
Cooling way:
-
air Cooling
Quick Details
-
Output (kg/h):
-
40 - 50 kg/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
winwin
-
Voltage:
-
380V, Customized
-
Dimension(L*W*H):
-
1800 *1400 *1100mm
-
Power (kW):
-
15KW
-
Weight:
-
700
-
product name:
-
Air-Cooled Recycling Pelletizer Machine with Single Screw Design
-
keyword:
-
pelletizer machine
-
Output:
-
75mm screw machine:40kgs/hr, 90mm screw machine: 70-80kgs/hr
-
suitable material:
-
PE PP PO PLA PVC film
-
Cooling way:
-
air Cooling
Product Overview
PRODUCT SPECIFICATIONS
Use:
It is used for PE PP PO PLA PVC film, etc. The machine is easy operation and convenient
Features:
Machine with good quality air blowers, inverters, gearbox and main motor.
Use ceramic heaters
It is used for PE PP PO PLA PVC film, etc. The machine is easy operation and convenient
Features:
Machine with good quality air blowers, inverters, gearbox and main motor.
Use ceramic heaters
|
NO.
|
Main specifications
|
|
|
|
1
|
Main specifications:
A: For 75mm screw recycling machine 1: Motor 11KW-6, one PC, variable frequency speed regulation 2: Screw diameter 75mm 3: Reducer 146 ,one PC 4: Fans 0.75KW,two PCS 5: Production capacity: about 40kgs per hour depending on material 6: Pelletizing motor 1.5KW, one PC frequency conversion speed regulation 7: Suitable materials PE PP PO PLA PVC, etc. 8: The total power of this machine is 15KW and the working current is 12-15A. 9: Length, width and height equipment 2200X1700X2100cm, 700kg |
|
|
|
2
|
B：For 90mm screw recycling machine
1: Motor 22KW-6, one PC, variable frequency speed regulation 2: Screw diameter 75mm 3: Reducer 173 ,one PC 4: Fans 0.75KW,two PCS 5: Production capacity: about 70-80kgs per hour depending on material 6: Pelletizing motor 1.5KW, one PC frequency conversion speed regulation 7: Suitable materials:PE PP PO PLA PVC, etc. 8: Length, width and height equipment 2300X1900X2100cm, 1100kg |
|
|
