Quick Details
-
Marketing Type:
-
Lab Coater
-
Core Components:
-
N/A
-
Applicable Industries:
-
Lithium IonBattery
-
Machine name:
-
Automatic coating machine
-
After-sales Service Provided:
-
Online support
-
Type:
-
Li ion battery lab research
-
Rated voltage:
-
110V/220V
-
Stroke length:
-
0 - 300 mm adjustable
-
Max. Coating Dimensions:
-
150mm(W) * 300mm(L)
-
Product Dimensions:
-
550*310*330mm
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Weight (KG):
-
50
-
Marketing Type:
-
Lab Coater
-
Core Components:
-
N/A
-
Applicable Industries:
-
Lithium IonBattery
-
Machine name:
-
Automatic coating machine
-
After-sales Service Provided:
-
Online support
-
Type:
-
Li ion battery lab research
-
Rated voltage:
-
110V/220V
-
Stroke length:
-
0 - 300 mm adjustable
-
Max. Coating Dimensions:
-
150mm(W) * 300mm(L)
-
Product Dimensions:
-
550*310*330mm
Laboratory Film Casting Machine With 150mm Width Coating Film Applicator
SPECIFICATION
TOB-TM300 is a Automatic Film Coater with Vacuum aluminum plate designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when coating on thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.
This model is without heating function, Heating lid is available at extra cost for drying . please select mode TOB-VFC-150 if we need hot function.
|
Machine model |
Automatic film coating machine TOB-TM300 |
|
Source voltage |
AC 110/220V, 50/60HZ |
|
Power |
200W |
|
Coating speed |
0-100mm/s, Adjustable |
|
Advantages |
Built-in vacuum pump , small size, save space Adjustable blade width Accuracy 0.01mm |
|
Stroke length |
0 - 300 mm adjustable by using Adjustable Position Switch |
|
Max. Coating Dimensions |
150mm(W) * 300mm(L) |
|
Platform |
Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 410mm(L) * 200mm(W)*30mm(T) |
|
Slicker adjustable range |
0.01-3.5mm |
|
Dimension (L*W*H) |
550*310*330mm |
|
Weight |
About 50kg |
|
Warranty |
One Year limited warranty with lifetime support |

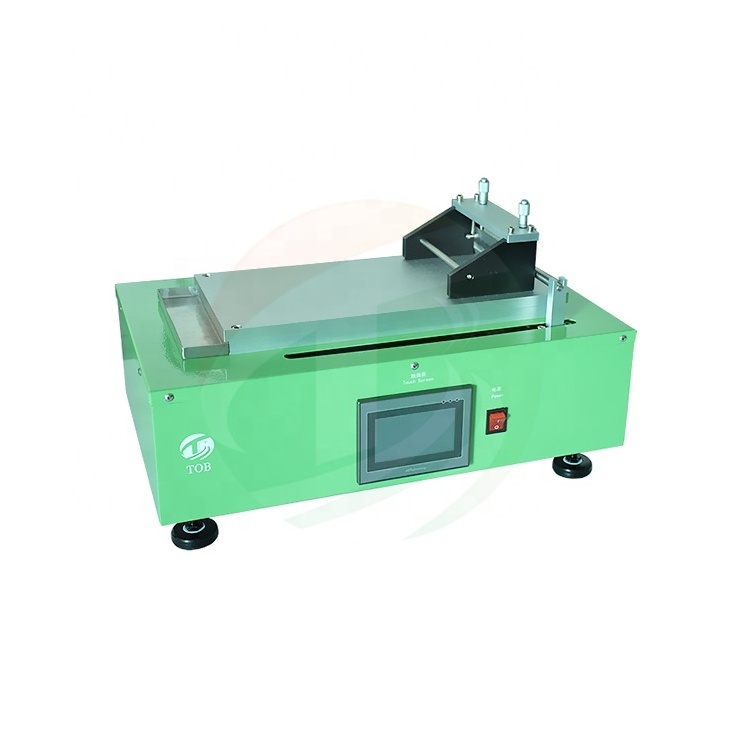

TOB-TM300 Lab Film Coating Machine
Coating Machine Accessories
TOB-VFC-150 Vacuum Coating Machine
Packing
