Quick Details
-
Blade Length (mm):
-
6100 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
KANGHAI
-
Power (kW):
-
11 kW
-
Weight (KG):
-
15000 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V/Customized, 380V
-
Dimension(L*W*H):
-
7200*2200*2200
-
Year:
-
2024
-
Material Strength (N/mm2):
-
450 mm
-
Strokes (min-1):
-
15
-
Table Height above Floor (mm):
-
600 mm
-
Control System:
-
ESTUN E21S
-
Material of Blade:
-
6CrW2Si
-
Color:
-
Can be customized
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
-
Function:
-
Sheet Metal Cutting
-
After-sales Service Provided:
-
Metal Sheet Cutting
Quick Details
-
Max. Cutting Width (mm):
-
6000
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
1°30'
-
Blade Length (mm):
-
6100 mm
-
Backgauge Travel (mm):
-
20 - 600 mm
-
Throat Depth (mm):
-
150 mm
-
Brand Name:
-
KANGHAI
-
Power (kW):
-
11 kW
-
Weight (KG):
-
15000 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V/Customized, 380V
-
Dimension(L*W*H):
-
7200*2200*2200
-
Year:
-
2024
-
Material Strength (N/mm2):
-
450 mm
-
Strokes (min-1):
-
15
-
Table Height above Floor (mm):
-
600 mm
-
Control System:
-
ESTUN E21S
-
Material of Blade:
-
6CrW2Si
-
Color:
-
Can be customized
-
Cutting Material:
-
Metal Stainless Steel Carbon Steel
-
Function:
-
Sheet Metal Cutting
-
After-sales Service Provided:
-
Metal Sheet Cutting
Product Description
Introduction

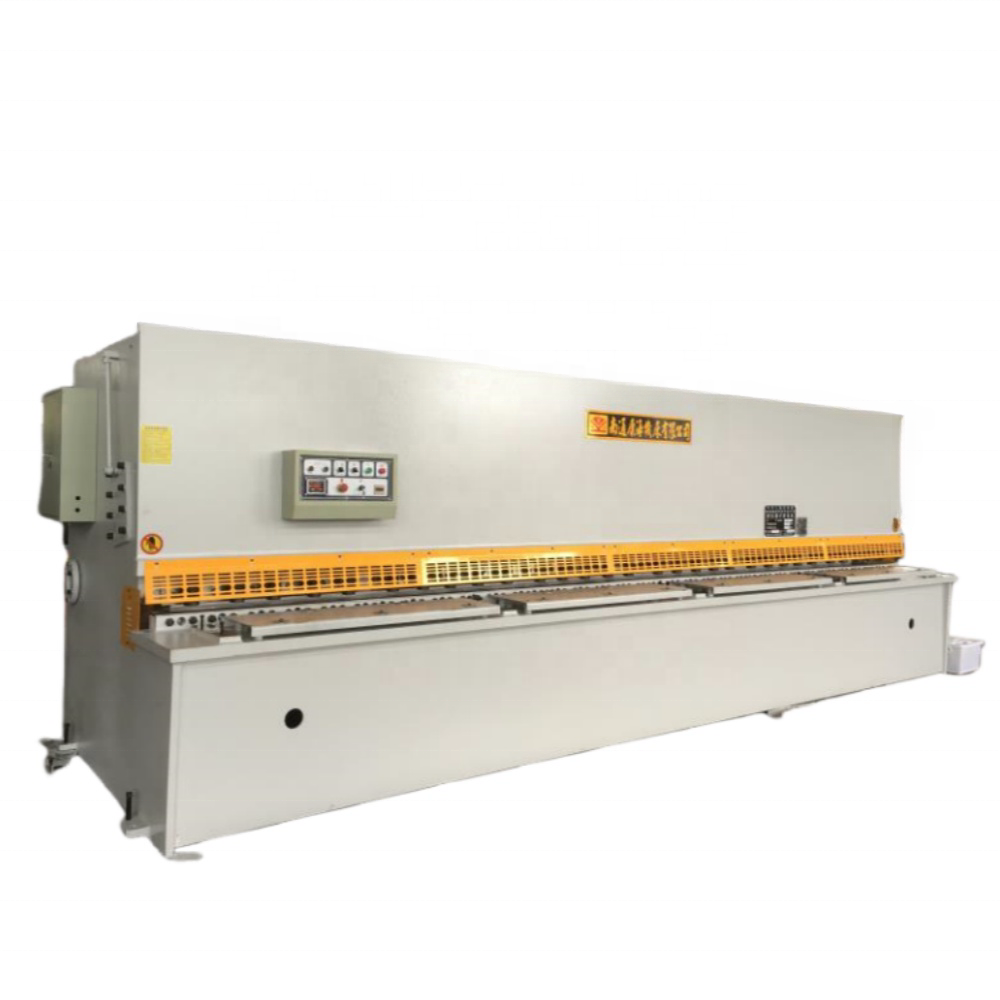

This machine is the latest generation of hydraulic shearing machine. With advanced hydraulic integrated valve blocks and less pipeline connections, the compact structure with is more reliable and easier to maintain. The machine is composed of
frame, tool holder, hydraulic system, material pressing device, blade clearance adjustment, front support and electrical system.
Features
1. All steel welded structure with good rigidity and stability, vibrating treatment for removal of internal stress.
2.The structural components are removed rust by shot blasting and coated with anti-rust paint.
3. Easy operation and reliable performance.
4.
Diamond-shaped top blade and rectangular bottom blade, with long service life.
5. Light alignment device and
electric mechanical back gauge.
6.The rolling support balls on worktable reduces scratches and frictions of plates.
7. The clearance between the top and bottom blade is adjusted by the handle and the dial indicates the value.
8. The safety fence is interlocked with the electrical system to ensure the safe operation.
Specification
|
Cutting Length
|
6000mm
|
|
Plate Thickness
|
6mm
|
|
Material Strength
|
450N/mm
2
|
|
Shear Angle
|
1°30’
|
|
Back Gauge Range
|
20-600mm
|
|
Strokes
|
15min-1
|
|
Table Height above Floor
|
900mm
|
|
Length of Blade
|
6100mm
|
|
Brand Name
|
KANG HAI
|
|
Main Motor Power
|
11KW
|
|
Machine Overall Dimensions
|
7200mm×2200mm×2200mm
|
Detailed Images
Main Motor and Gear Pump
With less noise and prolonging the service life.
Hydraulic Valve
Hydraulic transmission with high reliability.
Schneider Main Electrical Components
Reliable and safe, with long service life.
Blade Clearance Adjustment
Manual mechanism for adjusting blade clearance rapidly.
Rolling Steel Balls
Rolling steel balls on worktable reduce friction of workpiece.
ESTUN E21S Control System
Easy control system to ensure operation precision.
Product Parameters
|
Model
(QC12Y Series)
|
Plate Thickness
(mm)
|
Cutting Length
(mm)
|
Shear Angle
(°)
|
Back Gauge Range
(mm)
|
Strokes
(min-1)
|
Main Motor Power
(KW)
|
Overall Dimensions
(L/mm×W/mm×H/mm)
|
|
QC12Y-4×2500
|
4
|
2500
|
1°30’
|
20-500
|
15
|
4
|
3000×1600×1700
|
|
QC12Y-4×3200
|
4
|
3200
|
1°30’
|
20-600
|
15
|
5.5
|
3800×1700×1800
|
|
QC12Y-4×4000
|
4
|
4000
|
1°30’
|
20-600
|
15
|
5.5
|
4800×1800×1800
|
|
QC12Y-6×2500
|
6
|
2500
|
1°30’
|
20-600
|
15
|
7.5
|
3200×1700×1800
|
|
QC12Y-6×3200
|
6
|
3200
|
1°30’
|
20-600
|
15
|
7.5
|
4000×1800×1800
|
|
QC12Y-6×4000
|
6
|
4000
|
1°30’
|
20-600
|
15
|
7.5
|
4800×1800×1800
|
|
QC12Y-6×6000
|
6
|
6000
|
1°30’
|
20-600
|
15
|
11
|
7200×2200×2200
|
|
QC12Y-8×2500
|
8
|
2500
|
1°30’
|
20-600
|
15
|
11
|
3200×1800×1800
|
|
QC12Y-8×3200
|
8
|
3200
|
1°30’
|
20-600
|
15
|
11
|
4000×1800×1850
|
|
QC12Y-8×4000
|
8
|
4000
|
1°30’
|
20-600
|
15
|
11
|
4800×1800×1800
|
