Quick Details
-
Power:
-
0
-
Min. Lifting Height:
-
1000mm
-
Table Size:
-
10500*2000mm
-
Overall Dimensions:
-
11x2.08x1.3m
-
Weight:
-
3100 kg
-
Product name:
-
dock ramp
-
Application:
-
container , warehouse,logistics center
-
Feature:
-
Easy Operation Safety Convenience
-
Color:
-
customized Container Dock Leveler
-
Platform:
-
Anti-skid Checkered Plate
-
Model:
-
Container Dock Leveler
-
Load capacity:
-
1-15t
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CFMG
-
Power:
-
0
-
Min. Lifting Height:
-
1000mm
-
Table Size:
-
10500*2000mm
-
Overall Dimensions:
-
11x2.08x1.3m
-
Weight:
-
3100 kg
-
Product name:
-
dock ramp
-
Application:
-
container , warehouse,logistics center
-
Feature:
-
Easy Operation Safety Convenience
-
Color:
-
customized Container Dock Leveler
-
Platform:
-
Anti-skid Checkered Plate
-
Model:
-
Container Dock Leveler
-
Load capacity:
-
1-15t
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO

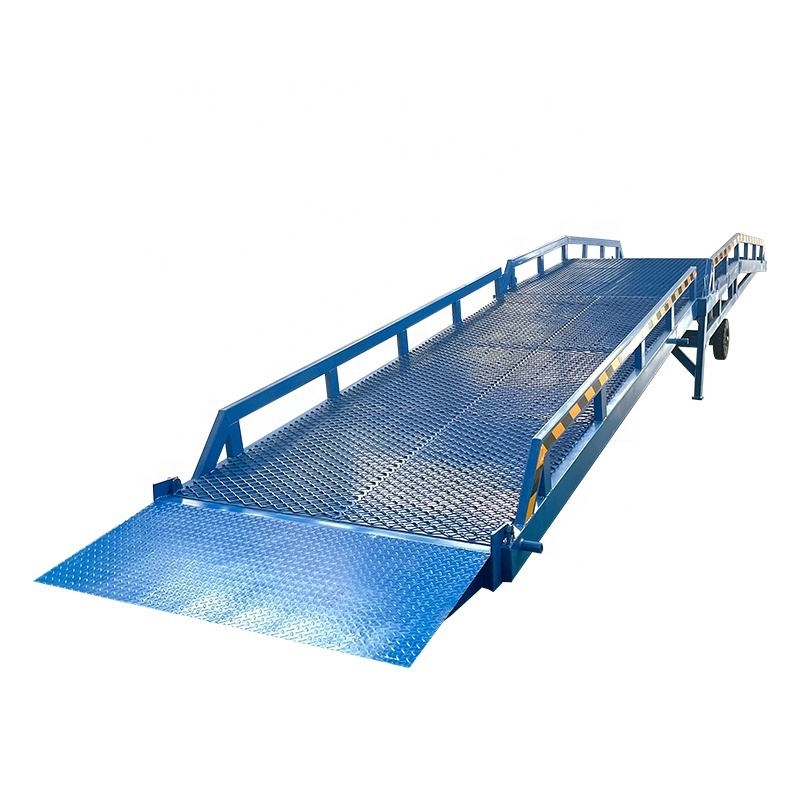

6ton 8ton 10ton 15ton hot sale new design used container loading dock yard mobile unloading ramp 2 wheels logistic use
Mobile container load ramp is designed with load capacity 6-30 tons, making the goods loading and unloading easier from container by forklift, is widely used in the wharf,the platform,warehouse and also according to the different needs of users, its dimension and load bearin g can be customized.
---- It can be designed and produced according to customers' requirements.
---The ramp using the hydraulic pump as lifting power, and no need electric power source, can easily adjust the height by hand-cranked.
---Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform
---We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.
---Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.
| SPECIFICATIONS FOR HYDRAULIC MOVABLE DOCK RAMP | |||||
| MODEL NUMBER | CAPACITY | SIZE | ADJUSTMENT HEIGHT | STEEL THICKNESS | WEIGHT |
| DCQ Y-6 | 6000KG | 11.1*2.1*1.1M | 1.1-1.8M | 3 | 2450KG |
| DCQ Y-8 | 8000KG | 11.1*2.1*1.1M | 1.1-1.8M | 3 | 2650KG |
| DCQ Y-10 | 10000KG | 11.1*2.1*1.1M | 1.1-1.8M | 4 | 2850KG |
| DCQ Y-12 | 12000KG | 11.1*2.2*1.1M | 1.1-1.8M | 5 | 3350KG |
| DCQ Y-15 | 15000KG | 11.1*2.4*1.1M | 1.1-1.8M | 6 | 4500KG |
Main Features
1. Both forklift suspensive board and floor have antiskid plate.
2. Shot blasting machine doing rust removal and powder coating process, which can extend their service life to 15 years or more.
3. We accept standard and customized orders .
