Quick Details
-
Weight:
-
heavy
-
Weight (KG):
-
200 kg
-
use:
-
water treatment
-
Function:
-
Solid-liquid Separation
-
Certification:
-
ISO9001:2015
-
Product name:
-
industrial wastewater filtration self cleaning filter
-
Application:
-
Filtration
-
Filter Type:
-
self clean
-
Industry:
-
oil filtration/food beverage filtration
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
TOP
-
Material:
-
wood/container, SUS304/316L
-
Weight:
-
heavy
-
Weight (KG):
-
200 kg
-
use:
-
water treatment
-
Function:
-
Solid-liquid Separation
-
Certification:
-
ISO9001:2015
-
Product name:
-
industrial wastewater filtration self cleaning filter
-
Application:
-
Filtration
-
Filter Type:
-
self clean
-
Industry:
-
oil filtration/food beverage filtration

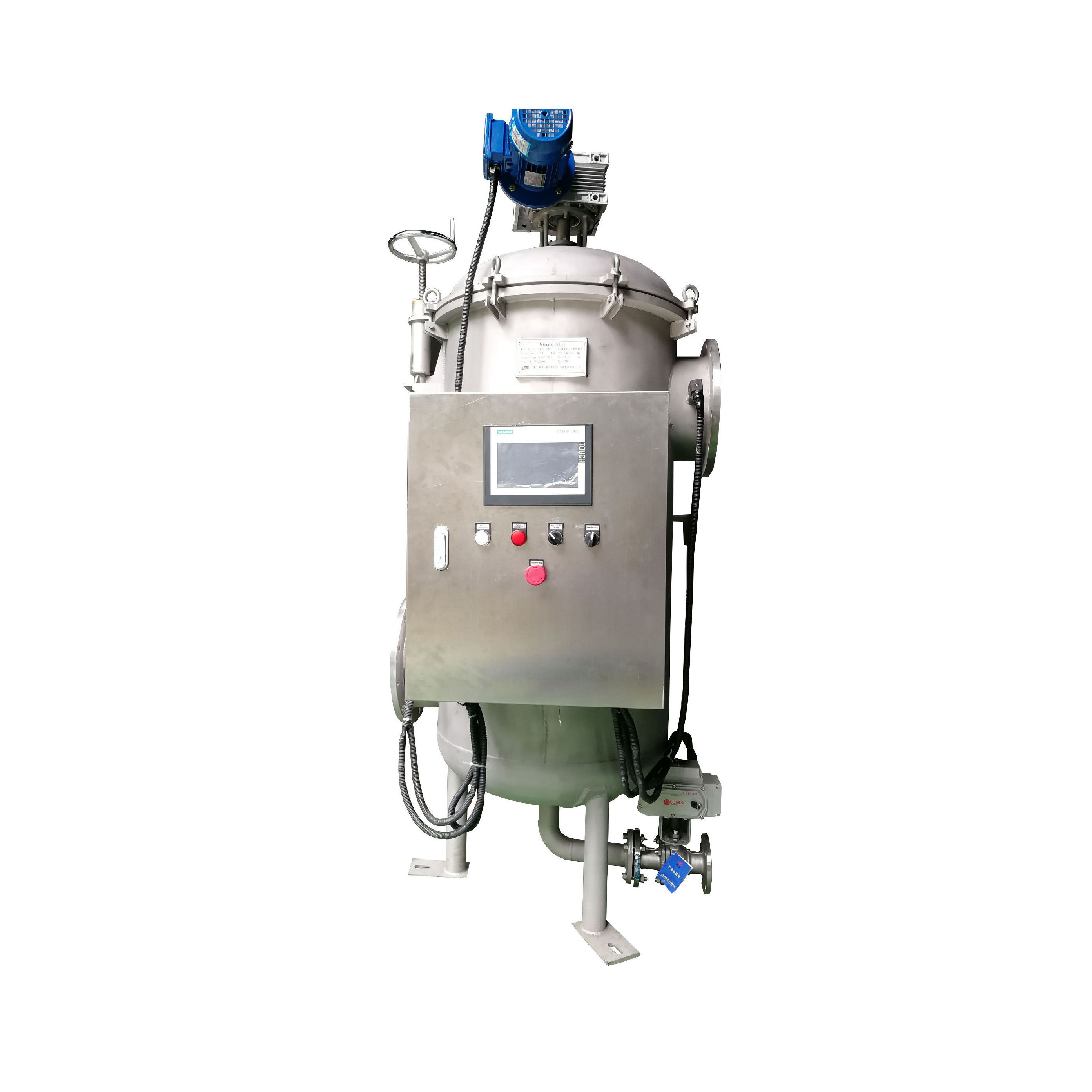

High precision mechanical internal scraping automatic self cleaning filter
Product I ntroduction :
TPSC is the high efficiency scraping self-cleaning filter removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. TPSC filter is designed for fine and accurate filtration ranging from20-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids viscosity up to 800000cps.
Features:
l Automatic 24-hour on-line filtration, no frequent changing out and cleaning
l No disposable filter media consumption, save filter media cost and environment cost
l Adopt outside scraping, Stainless steel scraping blade, good impurity removing performance
l Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
l Very low pressure drop, stable flowrate, save energy consumption
l Close filtration, no dangerout liquid leakage, good for safe production
l Discharge waste liquid with high impurity concentration, avoid valuable liquid loss
Application:
Products are widely used in water treatment, papermaking ,petroleum ,bio-pharmaceuticals, printing ink, grease, food and beverage, etc.
Technical parameter:
|
Model |
TPW11 |
TPW22 |
TPW34 |
TPW75 |
TPW100 |
TPW136 |
|
Filter area(cm2) |
0.11 |
0.22 |
0.34 |
0.75 |
1.00 |
1.36 |
|
Volume (L) |
16 |
30 |
50 |
145 |
195 |
320 |
|
Inlet/Outlet (mm) |
DN40-DN50 |
DN50-DN80 |
DN50-DN100 |
DN65-DN100 |
DN80-DN125 |
DN100-DN150 |
|
Drain outlet (mm) |
DN40 |
DN50 |
||||
|
Applicable liquid |
Viscidity (<800000cps),Impurity<1000ppm |
|||||
|
Filtration Precision |
20-500μm |
|||||
|
Cleaning pressure diff. |
0.05MPa |
|||||
|
Diff pressure switch |
Differential pressure transmitter(DPT) or Differential pressure switch(DPS) |
|||||
|
Gear motor |
180W,380V, IP55 |
|||||
|
Filter element type |
V-SLOT, 316L/304 |
|||||
|
Housing material |
316L/304/CS |
|||||
|
Scraping blade material |
304/316L |
|||||
|
Seal material |
NBR/VITON(FKM) |
|||||
|
Discharging valve |
Pneumatic ballvalve/ Electric ball valve |
|||||
*Above parameters only for reference, customized available for detailed requirements
