Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Dimension(L*W*H):
-
1300*900mm
-
Weight (KG):
-
800 KG
-
Product name:
-
new design wooden crafts acrylic 1390 CO2 laser wood cutting machine
-
Water chiller:
-
CW3000
-
Motor:
-
Leadshine stepper motor
-
Driver:
-
Leadshine driver
-
Control system:
-
Ruida Control System/Leetro/Topwisdom
-
Laser tube type:
-
Sealed CO2 Glass Tube
-
Laser tube power:
-
100W
-
Laser tube brand:
-
EFR
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt/rack and pinion, PMI guide rails
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ce
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
75000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Dimension(L*W*H):
-
1300*900mm
-
Weight (KG):
-
800 KG
-
Product name:
-
new design wooden crafts acrylic 1390 CO2 laser wood cutting machine
-
Water chiller:
-
CW3000
-
Motor:
-
Leadshine stepper motor
-
Driver:
-
Leadshine driver
-
Control system:
-
Ruida Control System/Leetro/Topwisdom
-
Laser tube type:
-
Sealed CO2 Glass Tube
-
Laser tube power:
-
100W
-
Laser tube brand:
-
EFR
-
Lens:
-
US II-VI lens
-
Transmission:
-
belt/rack and pinion, PMI guide rails
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ce
-
After-sales Service Provided:
-
Field installation, commissioning and training

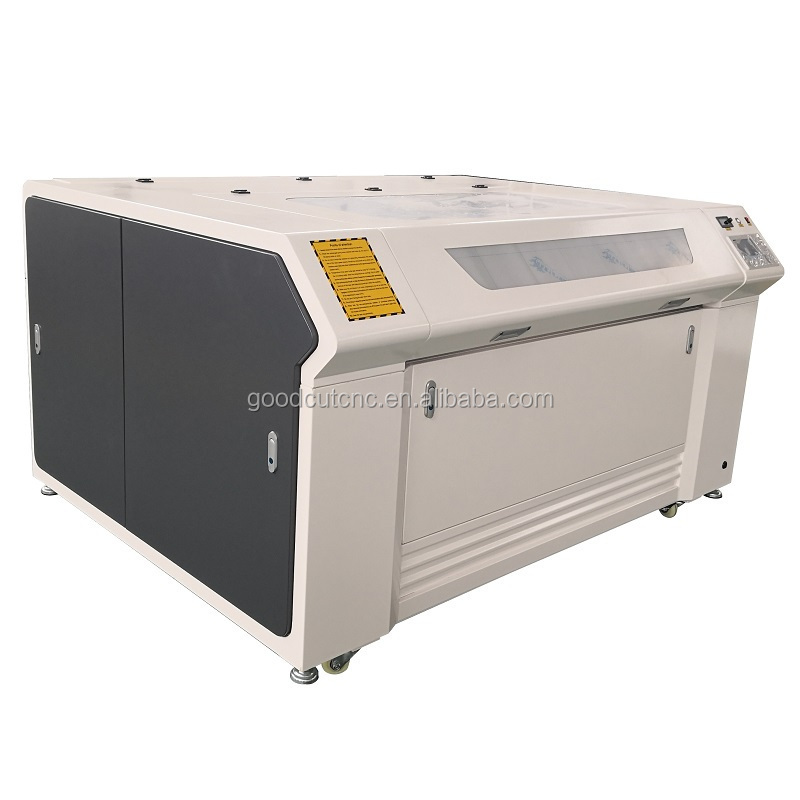

new design wooden crafts acrylic 1390 CO2 laser wood cutting machine
Descripton:
1. Drive system with high precision linear guide and slide block, high precision, wear resistance, small resistance, high speed; arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise.
2. Red Cross accurate positioning, convenient and quick in finding engraving and cutting position.
3. Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect.
4. Equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.
Parameters:
|
Products model |
GC6040 |
GC9060 |
GC1390 |
|
Working area |
600x400mm |
900x600mm |
1300x900mm |
|
Laser Types |
Hermetic And Detached CO2 Laser Tube |
||
|
Engraving speed |
0-75,000mm/min |
||
|
Cutting speed |
0-40,000mm/min |
||
|
Location precision |
≤0.01mm |
||
|
Resetting positioning accuracy |
≤0.01mm |
||
|
Power supply |
AC 220V/50~60Hz (110V is optional) |
||
|
Gross power |
<1,000W |
||
|
Operating temperature |
0 - 45° |
||
|
Operating humidity |
5 - 95% |
||
|
Minimum shaping character |
English 1×1mm |
||
|
360°slope engrave |
YES |
||
|
Motors driving system |
Stepper (servo is optional) |
||
|
Cooling mode |
Water-cooling and protection system |
||
|
Operating system |
Windows XP, VISTA, Windows7, Windows8 |
||
|
Software |
RDWorksV8(compatible with CorelDraw, AutoCad, Illustrator, PS) |
||
|
Graphic format supported |
DXF,AI,PLT,DST,DSB,CDR,BMP,JPG,GIF,PNG,MNG etc |
||
|
Standard accessories |
Water pump, air pump, exhaust fan, water pump |
||
|
Optional parts |
Electrical up/down table, rotary clamp, red light pointer, water chiller |
||
Features:
1. X&Y axis with HIWIN high accuracy square rail, perfect performance.
2. Only manufacturer adopts square tube framework machine body 40% higher than simple iron sheet structure, never distortion. Prevents machine from quivering and resonance during long time work.
3. High efficiency tube with stable laser path, life time reaches to 10000 hours.
4. Red cross point offers highest accuracy position.
5. Humanized and modern design makes work happy, safe and easy.
6. Transparent acrylic watching door, easy checking work process.
7. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
Applicable Material:
1) Advertising industry
2) Carved gifts and crafts industry
3) Packing and printing industry
4) Leather clothing industry
5) Architectural model industry
6) Production totem industry
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf,
Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
Our service for 1390 laser cutting and engraving machine:
* Pre-sale and In-sale
Consulting service, sample’s process experiment, equipment selection, training to the engineers and the user of the buyer.
Training:
After the acceptance check by the buyer, we offer training and maintenance guidance.
Training content:
1.Laser safety protection knowledge, the basic principles of lasers and laser marking machine construction.
2.Control system operating skills, equipment operation and precautions.
3.Equipment routine maintenance, laser adjustment and parts replacement operation skills.
* After-sale:
1.24 months guarantee for whole machine free of charge, except tube and lens 10 months
2.Perfect 7*24 hours technical support by e-mail
3.Calling or online service, professional training to your workers
4.Use friendly English software, user manual and detailed Videos/CD
5.Priority to become our agent in your city,we offer you our factory price
