2）The five pieces of package is from inside to outside.
3）Preservative film--- Foam --- Preservative film --- Plywood case --- Paint the mark.
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD--laser
-
Dimension(L*W*H):
-
192*168*154CM
-
Weight (KG):
-
400 KG
-
Laser source:
-
Sealed Glass Co2 Laser Tube(Reci/EFR/Yongli)
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Keywords:
-
1390 Laser Engraving Cutting Machine
-
Laser tube type:
-
CO2 Sealed Glass Laser Table
-
Working area:
-
1300*900mm/900mm*600mm/1600mm*1000mm
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
Power supply:
-
AC110-220V/50-60HZ(Custom Made)
-
Control system:
-
Ruida 6445G Control System
Quick Details
-
Engraving Area:
-
1300mm*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-64m/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD--laser
-
Dimension(L*W*H):
-
192*168*154CM
-
Weight (KG):
-
400 KG
-
Laser source:
-
Sealed Glass Co2 Laser Tube(Reci/EFR/Yongli)
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
Keywords:
-
1390 Laser Engraving Cutting Machine
-
Laser tube type:
-
CO2 Sealed Glass Laser Table
-
Working area:
-
1300*900mm/900mm*600mm/1600mm*1000mm
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
Power supply:
-
AC110-220V/50-60HZ(Custom Made)
-
Control system:
-
Ruida 6445G Control System
Product Description
|
Model
|
WD-1390
|
|
Laser Type
|
CO2
|
|
Laser power
|
60W/80W/100W/130W/150W/180W/200W/300W
|
|
Engraving Speed
|
0-64m/min
|
|
Cutting Speed
|
0-36m/min
|
|
Repeat Accuracy
|
+/-0.05mm
|
|
Moving System
|
CNC control system
|
|
Overall Power Consumption
|
<=1250W
|
|
Working Voltage
|
220+/-10%50HZ(60HZ)
|

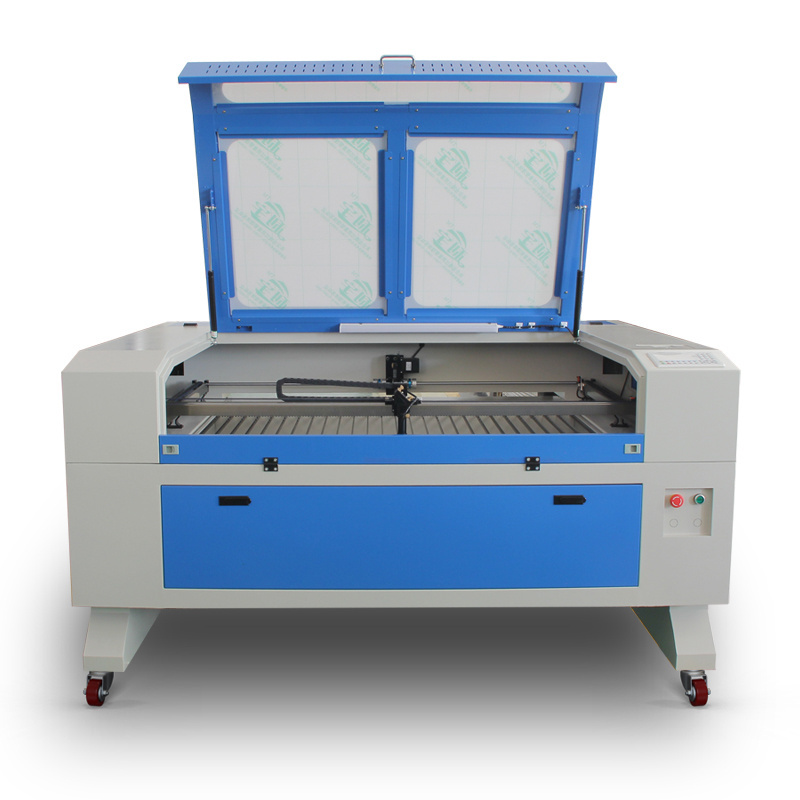

1390 CO2 laser engraving cutting machine
1390 CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.
1390 laser cutting machine MDF Plywod Acrylic 100w laser engraving are widely used in clothing, shoes, luggage, computer embroidery clipping, model,electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts.
Household appliances, laser processing and other industries.
Configuration parameters of the Industrial 1390 machine
1)using Gan Cheng or Ruida offline system, support USB and network cable interface link,
2)using 15MM high-strength Taiwan linear guide, i
3)ndustrial aluminum, high-strength sheet metal shell,
4)industrial laser head, ray driver, 57 stepper motor.
1390 LASER ENGRAVING/CUTTING MACHINE
1-WD-1390 Co2 laser engraving cutting machine’s equipped with enclosed laser tube, three-wire straight rail, RUIDA or TROCEN control system, Industrial laser head, high power stepping motor.
2-This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer. The machine front and back doors can open to accommodate larger materials.
2-This machine is equipped with RUIDA Control System,supports CorelDraw and Auto CAD and other advance software. It must connect to computer with USB cable when you change the settings of files. You can transfer the file with USB memory stick to the machine, or download it to the machine directly with USB cable from computer. The machine front and back doors can open to accommodate larger materials.
2010/3020/304
0
Mini Laser engraving machines
3050/4060/6090
M2 control Laser cutting machines
4060/6090/1060/1080
Ruida control Laser cutting machines
4060/6090
Laser engraving machines
130/1410/1610/1810
Laser engraving machines
1325/1625/3015/2010
Big Laser cutting machines
Detailed Images
Sample
Packing & Delivery
Package：
1）Firstly,there are for angle irons to fix the footstands(Casted iron,more stable).
Our Company
Liaocheng Ketai Laser (Worldslaser) Equipment Co.,Ltd
Liaocheng Dongchangfu Ketai(Worldslaser) Laser Equipment Co., established in 2007,which is located in that beautiful "Jiangbei Water City"Shandong Liaocheng .
Worldslaser Equipment Co.,Ltd has strong technical strength with a complete technical development system and strong ability to innovate,the production of manufacturing has a strict management philosophy and system. We have a professional team with strong customer service awareness of the staff with consummate technology and innovation ability and have rich work experience to pursuit the excellent quality of products .Our company continues to exceed the level of technology research development and standardized of scientific management, excellent product quality and customer respect service philosophy, making our products to win a good corporate honor in the global market .
We specialize in the production of laser engraving cutting machine, laser seal engraving machine, small laser engraving machine, fiber laser marking machine, Co2 laser marking machine, metal laser cutting machine, fiber laser cutting machine, CNC cutting machine, as well as accessories, laser tube, linear guide , the laser head, the laser machine working platform and KT series engraving and cutting machine. Our company independent research and development constantly extend the product range to meet a variety of customer requirement. Our products are widely used in advertising, decoration, textile and garment producing artistic processing, furniture manufacturing industry, craft or gift industry, flexible materials industry, the metals industry and the electronics and chip industries.
Our Service
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery.
FAQ
Q1.What should I do if I can not operate the cnc machine?
1.Customer can come to our factory to learn the machine operation
2.we have the machine operation videos online.
Q2. How long is the delivery time?
For standard machines, it would be 10-15 days;
For nonstandard machines and customized machines according to client s specific requirements, it would be 25 to 35 days.
Q3. How's the payment?
Normal payment term is Telegraphic Transfer(T/T), L/C,D/P, Western Union Escrow etc,if this is not acceptable for you,please send email for negotiate.
Q4.How about the documents after shipment?
All original documents to send by DHL, for example :the Packing List, Commercial Invoice, B/L,and other certificates as required by clients.
Q5.What's the guarantee, in case the machine breaks down?
The machine has one year warranty.,We will offer 24 hours online service support.. Parts except for consumable parts will be replaced for free if the problems are caused by quality fail.
