Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
600Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Yeacomm
-
Place of Origin:
-
Fujian, China
-
Product name:
-
5G Wifi CPE Router
-
Network:
-
5G/4G/3G
-
WIFI:
-
802.11 a/b/g/n/ac/ax
-
VPN:
-
PPTP/L2tp/IPSEC
-
Interface:
-
2 LAN /1 WAN
-
SIM card slot:
-
1*NANO Sim Card Slot
-
Power supply:
-
DC 12V 3A
Quick Details
-
Max. LAN Data Rate:
-
1900Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
600Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Yeacomm
-
Place of Origin:
-
Fujian, China
-
Product name:
-
5G Wifi CPE Router
-
Network:
-
5G/4G/3G
-
WIFI:
-
802.11 a/b/g/n/ac/ax
-
VPN:
-
PPTP/L2tp/IPSEC
-
Interface:
-
2 LAN /1 WAN
-
SIM card slot:
-
1*NANO Sim Card Slot
-
Power supply:
-
DC 12V 3A
Details Images
Specification
Overview

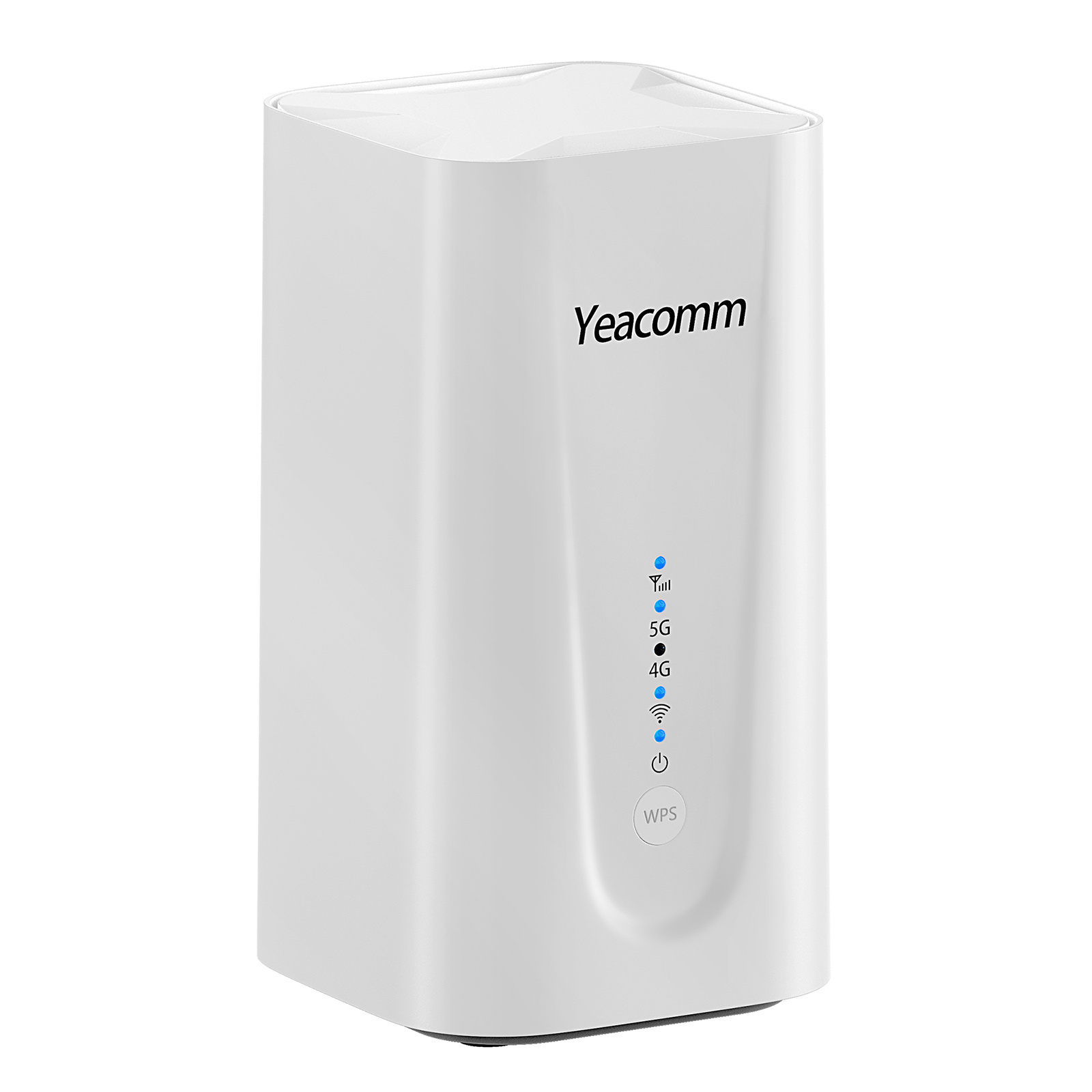

NR330-U is a high-performance 5G indoor CPE, which supports NR(SA&NSA), TDD-LTE, and FDD-LTE. It converts cellular network data into WIFI and wired network port data, supports 2 Gigabit LAN ports, 2.4GHz+5GHz dual-band WIFI -AP. Suitable for home or businessscenarios that requiring the rapid deployment of wired broadband networks and WIFI hotspots.
|
LAN/WAN Port
|
One Gigabit ethernet port (RJ45 waterproof joint)，self-adaption MDI/MDIX
|
|
LAN Port
|
One Gigabit ethernet port (RJ45 waterproof joint)，self-adaption MDI/MDIX
|
|
Phone Interface (Optional)
|
One RJ11 port (only for optional version)
|
|
Indicator Light
|
Singal, 5G, 4G, WIFI, and Power indicator light
|
|
SIM/UIM Card
|
Three-core DC locomotive power socket, built-in power reverse protection
|
|
USB Port
|
Type C 2.0
|
|
Reset Button
|
Reset the parameters to factory setting
|
Frequency Band:
5G Sub-6: n1/n28/n41/n78/n79
LTE-FDD : B1/B2/B5/B7/B8
LTE-TDD: B34/B38/B39/B40/B41
WCDMA: B1/2/5/8
Optional (with SDX55 chipset):
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 LTE-FDD: B1/2/3/5/7/8/18/19/20/26/28/32
LTE-TDD： B34/B38/39/B40/B41/B42/B43/B46
WCDMA：B1/B5/B6/B8/B19
Theoretical Bandwidth:
5G Sub-6:
Downlink 2.5Gbps, uplink 600Mbps
LTE Cat12: Downlink 600Mbps, uplink 150Mbps
|
WIFI Parameters:
|
|
|
|
Product Name
|
Yeacomm NR330-U 5G indoor CPE
|
|
|
WIFI Protoco
|
Support IEEE802.11 a/b/g/n/ac/ax
|
|
|
WIFI Frequency Band
|
2.4GHz+5GHz
|
|
|
Theoretical Bandwidth
|
5GHz 4x4MIMO 11ax, 1.2Gbps
2.4GHz 4x4MIMO 11ax, 0.573Gbps
|
|
