Combi Brick-Shaped Packing Machine for liquid beverages

Combi Brick-Shaped Packing Machine for liquid beverages

FOB Reference Price: Get Latest Price

≥1 Sets

US $32000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

FILLING RANGE:: 125ml/200ml/250ml/1000ml

SPEED:: 2400BPH

MODEL:: LVIV-TP

name:: Combi Brick-Shaped Packing Machine for liquid beverages

Quick Details

Packaging Material:: Plastic, Paper, Metal, Glass, Wood, Combi Brick-Shaped Packing Machine for liquid beverages

MATERIAL:: SS304

WARRANTY:: ONE YEAR

FILLING RANGE:: 125ml/200ml/250ml/1000ml

SPEED:: 2400BPH

MODEL:: LVIV-TP

name:: Combi Brick-Shaped Packing Machine for liquid beverages

Combi Brick-Shaped Packing Machine for liquid beverages

Product Description

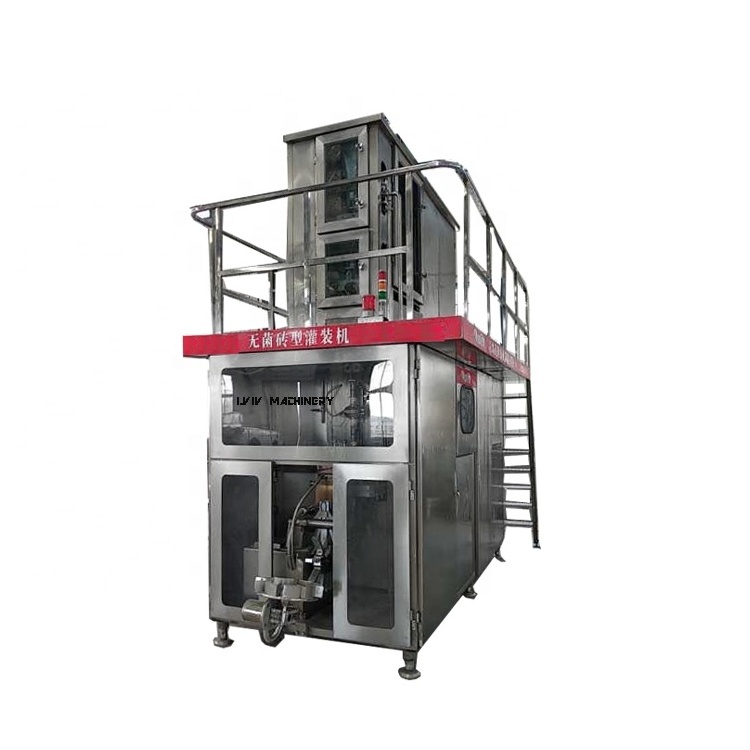

Aseptic brick shape liquid juice filling machinery equipment

Product Application

Lviv machinery have been focusing on the improvement in machinery theory and performance in the food machinery industry. Our company is a world class China Filling,Packaging Machine manufacturers and Filling,Packaging Machine suppliers,and for years we have passed ISO9001, National GMP Technology Standard Evaluation, inspections by National Pharmaceutical Equipment Inspection Center, Filling,Packaging Machine are designed and manufactured strictly according to standards such as ISO, SMS, IDF, DIN, QB/T2003, 2004, 3A as well as our internal standards. Laboratory tests to ensure that each piece of qualified Filling,Packaging Machine sent to customers.

It is widely used in dairy products such as milk, yogurt, lactic acid drinks, Japanese tofu, soy sauce, cooking oil, drinks, mineral water, cleaning supplies, alcohol, etc.

5000BPH Milk carton packing machine

This is thereal Aseptic machine for packing milk, yogurt and so on ,all kinds of milk product.

Fully automatic form feed - print date - sterilize - filling - shaping

5000BPH ASEPTIC brick shape Carton Filling Machine
MODEL	LVIV-TP5000
SPEED	5000BPH
POWER	15KW/HR
OPERATION MODE	PLC control, man-machine interface operation.
FILLING RANGE	125ML/200ML/250ML
SHELF LIFE	In 25 - 30℃, juice 12 months, milk 6 months.
POWER INPUT	220V 50Hz or 220V 60Hz or 110V 60Hz
AIR PRESSURE	0.5-0.8 Mpa
AIR CONSUMPTION	3 m3/min
PACKAGING MATERIALS	PE/PAPER/PE/AL/PE/PE aseptic packaging material roll
WEIGHT	3000KGS
SIZE(LXWXH)	3800X1500X3850 MM
PACKAGING	WOODEN CASE

2300BPH Juice carton packing machine

This kind of machine just for filling juice, coconut water, beverage and so on .

Fully automatic form feed - print date - sterilize - filling - shaping

2300BPH brick shape Carton Filling Machine
MODEL	LVIV-TP2300
SPEED	2300BPH
POWER	12KW
OPERATION	2WORKERS
FILLING RANGE	125ML/200ML/250ML/1000ML
FILLING ACCURACY	±1%
POWER INPUT	220V 50Hz or 220V 60Hz or 110V 60Hz
AIR PRESSURE	0.5-0.8 Mpa
AIR CONSUMPTION	CONSUMPTION OF 0.9M2/MIN
FILM THICKNESS	FILM THICKNESS
WEIGHT	1800KGS
SIZE(LXWXH)	4400X1520X3530MM

Main Features

1)Disposable auto-complete feed, sterilization, box making, filling, forming, sealing action,

the molding of composite materials using hydrogen peroxide spray and high-intensity ultraviolet radiation and sterile hot air drying, packaging, materials completion of the aseptic chamber of the filling and after the filling of the seal are in a positive pressure conditions, thus ensuring a sterile packaging materials and materials to be packaged through a juice beverage after the UHT sterilization at room temperature shelf life of long up to one year.

2)In addition, the aircraft PLC optical correction, frequency control, pneumatic solenoid valve, vacuum systems, liquid level control, smart electronic thermostat adjustment, automatic fault alarm system and sterile room, etc.

3)Germany, Japan and other countries of the famous brand ,

4)whole machine is used stainless steel, beautiful appearance, convenient operation.

Detailed Images
