Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
China
-
Brand Name:
-
Sunny
-
Model Number:
-
TPS-30
-
Type:
-
TPS Series Three Phase, Three Phase
-
Product name:
-
Auto Rescue Device
-
Model:
-
TPS-30
-
Inverter Capacity:
-
25KW
-
AC Input:
-
380Vac / 415Vac +/- 20% Three Phase Input. 50/60Hz ± 10%
-
DC Voltage:
-
84Vdc
-
Charger Type:
-
Controlled Rectifier CVCC
-
Charging Time:
-
10 Hours for 90% of Full Battery Capacity
-
Inverter:
-
IGBT based PWM Sine Wave
-
Protection:
-
Output Overload & Short circuit
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
China
-
Brand Name:
-
Sunny
-
Model Number:
-
TPS-30
-
Type:
-
TPS Series Three Phase, Three Phase
-
Product name:
-
Auto Rescue Device
-
Model:
-
TPS-30
-
Inverter Capacity:
-
25KW
-
AC Input:
-
380Vac / 415Vac +/- 20% Three Phase Input. 50/60Hz ± 10%
-
DC Voltage:
-
84Vdc
-
Charger Type:
-
Controlled Rectifier CVCC
-
Charging Time:
-
10 Hours for 90% of Full Battery Capacity
-
Inverter:
-
IGBT based PWM Sine Wave
-
Protection:
-
Output Overload & Short circuit
|

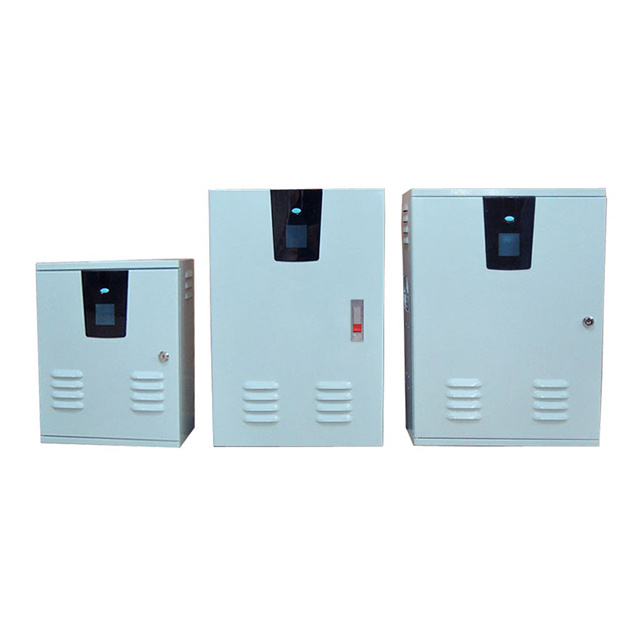

Auto Rescue Device for Lift (TPS Series)
|
|
|
Three Phase u LCD display u Smart CPU Control u Easy to installation u Option for Brake Voltage (60VDC/110VDC/220VDC) |
|
Auto sensor to level - show the capacity of load & battery
|
** F or Monarch / Step System **
|
Model |
TPS-1 0 |
TPS-11 |
TPS-15 |
TPS-25 |
TPS-3 0 |
|
|
Inverter Capacity |
11KW ( Weight:under 1000KGS ) |
15KW ( Weight:under 1000KGS ) |
18KW (Weight:under 1000KGS) |
22KW
|
25KW |
|
|
AC Input |
380Vac / 415Vac +/- 20% Three Phase Input. 50/60Hz ± 10% |
|||||
|
DC Voltage |
36Vdc |
48Vdc |
60Vdc |
72Vdc |
84 Vdc |
|
|
12V/ 7 Ah× 3 |
12V/ 7 Ah×4 |
12V/ 7 Ah×5 |
12V/ 7 Ah×6 |
12V/ 7 Ah× 7 |
||
|
Charger Type |
Controlled Rectifier CVCC |
|||||
|
Charging Time |
10 Hours for 90% of Full Battery Capacity |
|||||
|
Inverter
|
Technology
|
IGBT based PWM Sine Wave |
||||
|
Output Voltage
|
380Vac / 415Vac Three Phase 50/60Hz ± 0.1Hz |
|||||
|
Efficiency
|
85% |
|||||
|
Overload
|
105% continuous |
|||||
|
Harmonic Distortion
|
<3% on Linear load |
|||||
|
Crest Factor
|
4:1 |
|||||
|
Power Factor |
0.8 |
|||||
|
Phase Displacement |
120° ± 1° |
|||||
|
LCD Display |
Start ARD when Black out Battery Charge Status Battery 20% 40% 60% 80% 100% Battery Full Over Load Open on level |
|||||
|
Protection |
Output Overload & Short circuit DC Under & Over Voltage |
|||||
*Specifications are subject to change without prior notice due to constant improvement in design & technology.
