Quick Details
-
Lift Speed:
-
8 8/0.8
-
Weight (KG):
-
100 kg
-
Product name:
-
380v 440V CD1 electric wire rope hoist electric cable hoist
-
Lifting Height:
-
6 m/ 9m or customized
-
Capacity:
-
1ton 2ton 3ton 5ton 10ton 20ton
-
Color:
-
Blue Red Yellow or customized
-
Hook:
-
Forged
-
Motor:
-
pure copper motor
-
OEM:
-
welcome
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Brazil
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JuRen
-
Lift Speed:
-
8 8/0.8
-
Weight (KG):
-
100 kg
-
Product name:
-
380v 440V CD1 electric wire rope hoist electric cable hoist
-
Lifting Height:
-
6 m/ 9m or customized
-
Capacity:
-
1ton 2ton 3ton 5ton 10ton 20ton
-
Color:
-
Blue Red Yellow or customized
-
Hook:
-
Forged
-
Motor:
-
pure copper motor
-
OEM:
-
welcome
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Brazil
CD1 electric wire rope hoist electric cable hoist
| CD1 Electric Wire Rope Hoist | ||||||
| Lifting capacity | 0.5 ton | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton |
| Lifting height | 6-12m | 6-30m | 6-30m | 6-30m | 6-30m | 9-30m |
| loop Track minimum Radius | 1.5m | 1.5-4m | 2-4m | 2-4m | 2.5-5m | 3.5-9m |
| Wire Rope Type | 6x37+NF | 6x37+NF | 6x37+NF | 6x37+NF | 6x37+NF | 6x37+NF |
| I beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 28a-63c |
| Voltage V | 380/220/400/440 | 380/220/400/440 | 380/220/400/440 | 380/220/400/440 | 380/220/400/440 | 380/220/400/440 |
| Frequency HZ | 50 | 50 | 50 | 50 | 50 | 50 |
| Phase | 3 | 3 | 3 | 3 | 3 | 3 |

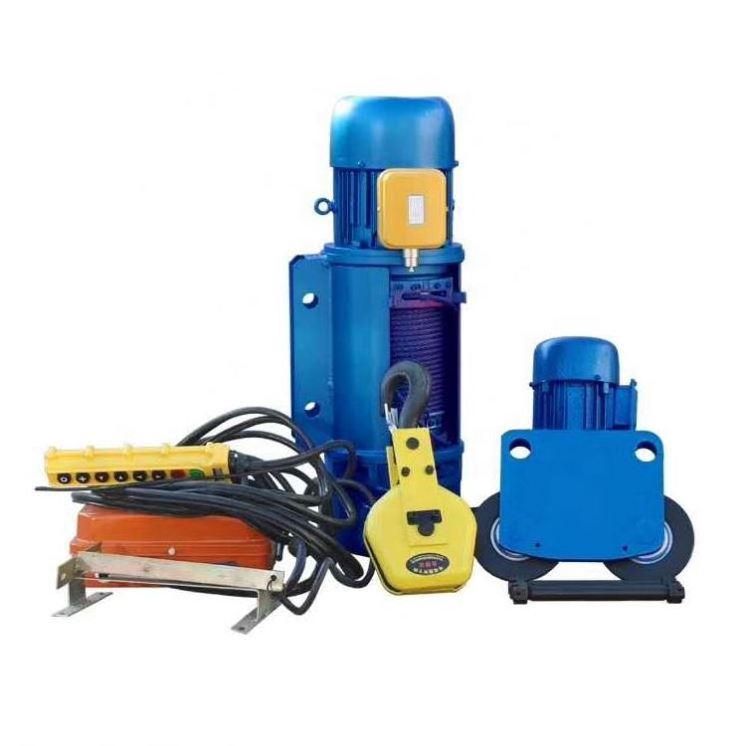

CD1 type wire rope electric hoist is a kind of light small lifting equipment with advantages of tight structure light weight, small volume, wide common use and convenient operation etc.
If reducers with hard gear surface are applied, i will have long life and high mechanical efficiency. Conic rotor brake motors are equipped which has asfety limiter in both up and down direcuons.
CD1 electric wire rope hoist include main hoist, electric trolley, hook, handle button, Control electric box.
If you like, we can add the overload prevent device to protect the motor.
Good Nanjing motor !!!
