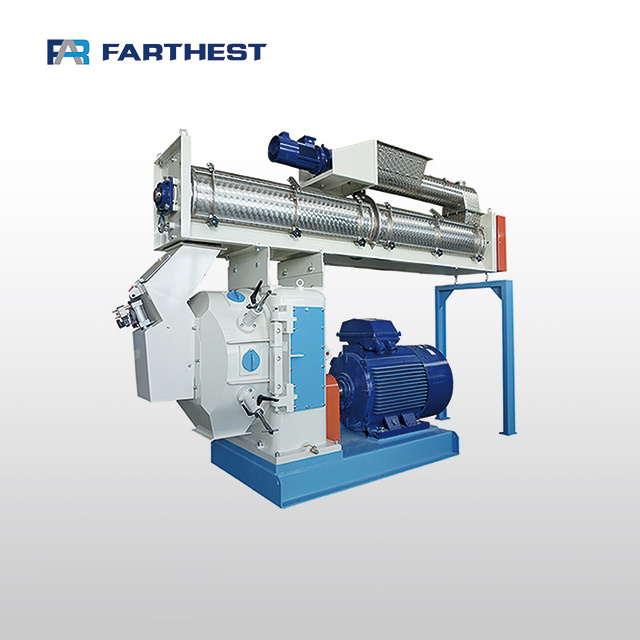

Farthest 8 Ton/h Electric Bird Feed Mill Livestock Feed Producing Equipment

Farthest 8 Ton/h Electric Bird Feed Mill Livestock Feed Producing Equipment

FOB Reference Price: Get Latest Price

≥1 Sets

US $24000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: Actual

Weight:: 1000 kg

After-sales Service Provided:: Engineers available to service machinery overseas

die:: stainless steel

Color:: blue and white

motor:: Siemens(China)

ID of Die:: 400/420 mm

Output:: 3-14 TPH

Certification:: CE, ISO9001

Quick Details

Max. Capacity:: 8 ton/h

Place of Origin:: Jiangsu, China

Brand Name:: FAR

Voltage:: 380V

Dimension(L*W*H):: Actual

Weight:: 1000 kg

After-sales Service Provided:: Engineers available to service machinery overseas

die:: stainless steel

Color:: blue and white

motor:: Siemens(China)

ID of Die:: 400/420 mm

Output:: 3-14 TPH

Certification:: CE, ISO9001

Product Description

Farthest 8 Ton/h Electric Bird Feed Mill Livestock Feed Producing Equipment

Features

1. Gear directly-connecting driving is adopted for high efficiency ;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise

and long service life ;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC ;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is

available to ensure reliable bearing lubrication;
7. 3 pc s of quick disassembling type precisely-cast die clamp s are adopted to connect the die

and quill flange, resulting in convenient and quick disassembling of die ;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life ;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more

convenient disassembling and assembling and more reliable use.

Main Technical Parameter

Parameters

Model

Output

( t/h )

Main Power

(k w )

Power O f Conditioner
( k w)

Power O f Feeder
( k w)

ID Of Die
(mm)

Pellet Size
(mm)

SZLH 400

3-12

75/90

5.5

1.5

40 0

2-18

SZLH 420

3-14

90/110

5.5

1.5

42 0

2-18

Details

Our Services

About Our Factory

Certification

Packaging & Shipping

Exported Equipment

FAR products have been exported to South Korea, Iraq, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.

Exhibition

Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23 ^rd - 25 ^th Sep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18 ^th -20 ^th May, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.

FAQ

Questions

1. Q: Are you a trading company or a manufacturer?

A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?

A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.

3. Q: How long is your guarantee?

A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.

4. Q: Will you send engineers to install the plant?

A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
