Quick Details
-
Control System Brand:
-
xturbo
-
Cutting Area:
-
6.5m
-
Cutting Thickness:
-
5mm
-
Control Software:
-
xturbo
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XT LASER
-
Weight (KG):
-
4500 KG
-
Product name:
-
fiber laser tube cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working area:
-
6.5m
-
Power supply:
-
380V/50HZ
-
Control system:
-
xturbo System
-
Cooling system:
-
Water Cooling System
-
Cutting head:
-
wsx
-
Max cutting speed:
-
60m/min
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
60m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
xturbo
-
Cutting Area:
-
6.5m
-
Cutting Thickness:
-
5mm
-
Control Software:
-
xturbo
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XT LASER
-
Weight (KG):
-
4500 KG
-
Product name:
-
fiber laser tube cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working area:
-
6.5m
-
Power supply:
-
380V/50HZ
-
Control system:
-
xturbo System
-
Cooling system:
-
Water Cooling System
-
Cutting head:
-
wsx
-
Max cutting speed:
-
60m/min
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Marketing Type:
-
Ordinary Product
XTlaser 3000W High Speed 3 Days Fast Delivery CNC fiber laser cutting machines sheet metal tube pipe
Products Description

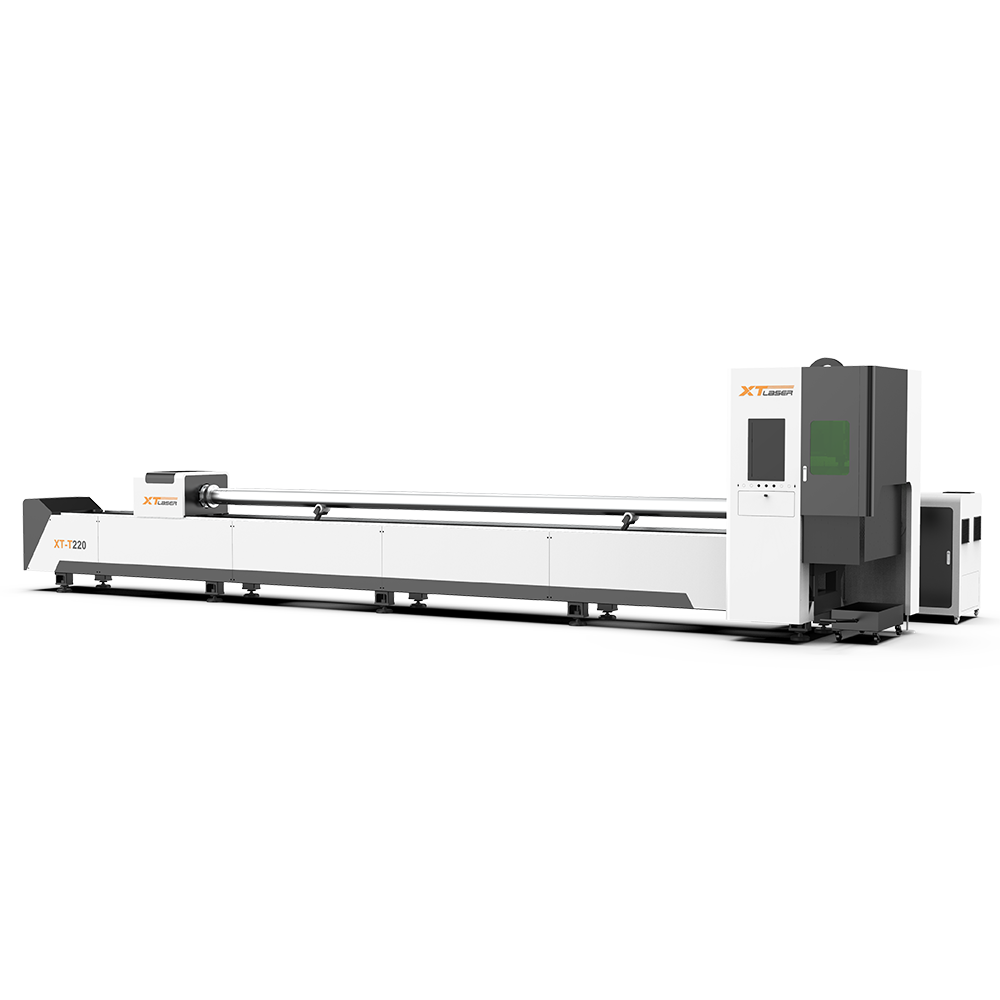

T SERIES High Speed Tube Fiber Laser Cutting Machine 1500W-4000W
Machine Features：
1. Precision pneumatic chuck, efficient and stable, precise positioning, time-saving and material saving, with stronger dynamic performance than others;
2. It can be paired with automation modules to achieve fully automated loading and unloading, saving tailings
3. The abnormal operation alarm system of the device enables users to have a better human-machine experience.
Specifications
|
Model
|
XT-T160
|
XT-T220
|
XT-T230
|
XT-T350
|
|
Pipe Section Shape
|
Round/Square Tube/Rectangular
|
Round/Square Tube/Rectangular
|
Round/Square Tube/Rectangular
|
Round/Square Tube/Rectangular
|
|
Tube Size Range
|
Round：Φ16-Φ155mm
Square：□16-□155mm Rectangular：Rectangular:Long Side≤155mm |
Round：Φ20-Φ220mm
Square：□20-□220m Rectangular：Rectangular:Long Side≤220mm |
Round：Φ20-Φ220mm
Square：□20 – □220mm Rectangular：Circumcircle Φ≤220mm |
Round：Φ20-Φ345mm
Square：□20 – □240mm Rectangular：Circumcircle Φ≤345mm |
|
Maxi Length of Pipe
|
6.3m
|
6.3m
|
6.5m/9.2m
|
6.5m/9.2m
|
|
Max Weight of Pipe
|
100Kg 16Kg/m
|
200Kg 30Kg/m
|
200Kg 30Kg/m
|
500Kg 83Kg/m
|
|
Max Blanking Length
|
2m
|
2m
|
2m
|
2m
|
|
Shortest Remnant
|
150mm
|
150mm
|
200mm
|
200mm
|
|
Positional Accuracy
|
±0.03mm
|
±0.03mm
|
±0.03mm
|
±0.03mm
|
|
Re-positional Accuracy
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
|
Chuck Max Speed
|
80r/min
|
80r/min
|
120r/min
|
120r/min
|
|
Max Speed of Chuck Feed Axis
|
90m/min
|
90m/min
|
120m/min
|
120m/min
|
|
Max Speed of Laser Head Axis
|
90m/min
|
90m/min
|
90m/min
|
90m/min
|
Cut Multi Types of Tubes
Land C-shaped tubes, etc.
Intelligent Digital Chucks
It is unnecessary to change claws while clamping 20-200mm tubes. Minimize tailing length.
Automatic Support Installation
It employs intelligent tube support design which can solve the deformation problems in the process of long tube cutting.
The guide rail and rack have undergone strict testing. Equipped with high-quality chillers such as Hanli.
Application and samples
Fiber Laser Cutting Equipment is suitable for
metal cutting
with Stainless Steel , Mild Steel Plate(tube), Carbon Steel, Alloy Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Package and Delivery
Overseas After-sales Services
Since 2017, XTLASER service activities have been officially launched, creating a
"30 minute quick response, 3 hour service"
after-sales service chain to provide customers with a
"24-hour"
comprehensive service guarantee for worry free production. At present, XTLASER has established over 40 service outlets worldwide, and the "0 Worry" global service line activity is underway.
H series and HT series 3000w fiber laser cutting machines can achieve fast delivery in 3 days, and T series professional pipe cutting machines can achieve fast delivery in 5-7 days. We guarantee that every customer receives the machine quickly and with high quality.
H series and HT series 3000w fiber laser cutting machines can achieve fast delivery in 3 days, and T series professional pipe cutting machines can achieve fast delivery in 5-7 days. We guarantee that every customer receives the machine quickly and with high quality.
