Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Voltage:
-
AC220V, 1PH/380V, 3PH
-
Dimension(L*W*H):
-
1200*1200*200mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
700
-
Core Components:
-
cnc carving machine price
-
Working area:
-
1200x1200x200mm
-
Lathe Structure:
-
Welding structure
-
Spindle motor:
-
3.5kw air cooling spindle
-
Table structure:
-
T-slot table with clamps
-
Working Mode:
-
Leadshine easy servo motor and driver
-
X,Y axis transmission:
-
Rack and gear
-
Z axis transmission:
-
Taiwan TBI ball screw
-
Max. Speed:
-
0-32 000mm/min
-
Max. Working Speed:
-
0-20 000mm/min
-
Certification:
-
CE ISO
Quick Details
-
Working Table Size(mm):
-
1200x1200
-
Machine Type:
-
1212 cnc router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Voltage:
-
AC220V, 1PH/380V, 3PH
-
Dimension(L*W*H):
-
1200*1200*200mm
-
Power (kW):
-
4.5
-
Weight (KG):
-
700
-
Core Components:
-
cnc carving machine price
-
Working area:
-
1200x1200x200mm
-
Lathe Structure:
-
Welding structure
-
Spindle motor:
-
3.5kw air cooling spindle
-
Table structure:
-
T-slot table with clamps
-
Working Mode:
-
Leadshine easy servo motor and driver
-
X,Y axis transmission:
-
Rack and gear
-
Z axis transmission:
-
Taiwan TBI ball screw
-
Max. Speed:
-
0-32 000mm/min
-
Max. Working Speed:
-
0-20 000mm/min
-
Certification:
-
CE ISO

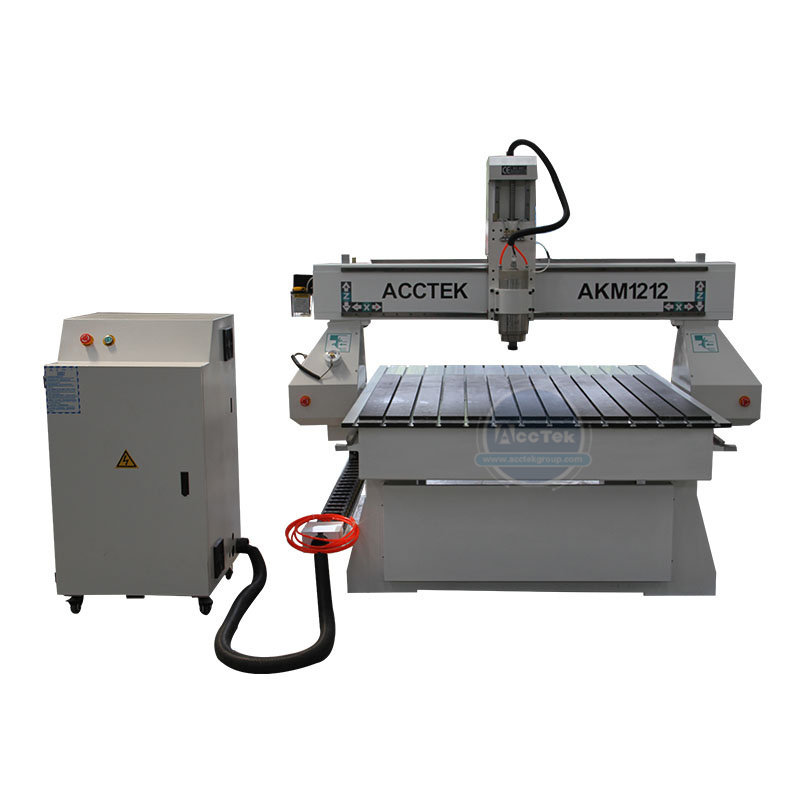

High Speed Furniture Manufacturing Machinery Wood CNC Machine 1212 CNC Carving Machine Price
FAQ
1) I know little about this machine, what kind of machine I should choose?
It is easy to choose. Just tell us what you want to do with cnc router, then let us give you perfect solutions and suggestions.
2) When I got this machine, but I did not know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk online with WhatsApp, Wechat etc .
3) If some problems happened during warranty period, what should I do?
We will supply free parts in machine warranty period after talking with our service team. We also supply free after-service forever, so any doubts, just us know, we will give you solutions as soon as possible.
4) What is the MOQ?
MOQ for our products is 1 set machine.
If you buy 3 sets one time, you will have the agent price, enjoy better price.
5) I am the first time to import the goods, how to do it?
We are experienced with many years, this work is not complex, we can help you.
Machine Description
1)
High temperature tempering treatment, welded steel tube machine bed and gantry, high rigidity, bearing strength better.
2)
Y axis with double stepper motor and Leadshine driver, moving stably.
3)
Linear square guide rail with automatic oil lubrication device, ensuring long life time working, reduce the time of machine maintenance.
4)
China air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work.
5)
With rack and gear transmission for X Y axis it can have faster speed than ball screw machines.
Ball screw transmission for Z axis, ensuring the machine fast speed and higher precision.
6)
Good software compatibility, with machine ,we provide Artcam, Aspire, Powermill software etc .
7)
With Mach3 control system, very popular control system with high quality.
Technical Parameters
|
Model
|
AKM1212
|
|
Working Area
|
1200*1200*200mm
|
|
Spindle Motor
|
3.2kw water cooling spindle
|
|
Working Mode
|
Stepper motor and Leadshine driver
|
|
Control System
|
Mach3 control system
|
|
Drive Mechanism
|
XY axis rack and gear, Z axis Taiwan TBI ball screw
|
|
Table Surface
|
T-slot table with clamps
|
|
Max Motion Speed
|
32 000 mm/min
|
|
Max Engraving Speed
|
20 000 mm/min
|
|
Lubrication System
|
Oil lubrication system
|
|
Graphic Format Supported
|
G Code, *uoo, *mmg, *plt
|
|
Software
|
Artcam, Aspire, Powermill
|
|
Working Voltage
|
AC220 1PH or 380V 3PH, 50 or 60Hz (others can be customized)
|
|
Packing Size
|
2060*1920*1670mm
|
|
Net Weight
|
650kg
|
|
Gross Weight
|
700kg
|
Application
1)
Advertising industry.
Engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
2)
Woodworking industry.
Solid wood furniture, custom furniture, furniture decoration, musical instrument manufacturing, wooden
handicrafts, art models, artistic font characters, logos, plate plane carving, artistic murals, screen relief carving and cutting, decoration processing, gift packaging, wave boards, Cutting the three-dimensional surface and shape of various wooden industrial products such as electrical appliances, sporting goods, etc.
3)
Decorate industry.
Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
4)
Craft & gift industry.
Engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
5)
Plate processing.
Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board,epoxy resin, ABS, PP, PE and other carbon mixed compounds.
6)
Mold industry.
It can engrave various molds, wooden molds, fonts, aviation wooden molds, propellers, building
models, sand table models, motorboat models, automobile foam molds, etc
Package & Delivery
Package
1)
Whole film packaging machine.
2)
Anti-collision package edge.
3)
Fumigation-free plywood wooden box with an iron-binding belt.
4)
According to the customer's requirements for loading the whole container or LCL at Qingdao Port.
Delivery Terms
1)
The machine will be produced after received your deposit, its need about 15-25 working days to produce the machine after get your deposit.
2)
After the machine is ready, we will test it very carefully, and ensure everything is OK.
3)
Then we will show you the machine photos and the testing video.
4)
After you agree, please finish the balance payment.
5)
Finally, all things are tested well, then we arrange the delivery.
After Sale Services
1)
Guarantee
3 years guarantee of the whole machine.
2)
Software issue
Our technician is able to re-install or set up by remote for free.
3)
Hardware issue
Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any problem during the warranty period.
4)
Support online
Our technician is able to teach you online to run the machine or eliminate the fault for free.
5)
Training in AccTek factory
We are able to train your staff after placed order in our factory for free.
6)
On-site training (Recommended, the most effective way)
We are able to send technician to your workshop to do the installation and training.
You will need bear the related costs(flight, visa, hotel, training costs, etc.)
