SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
N0.2-1.25
-
Output Voltage (V):
-
400
-
Application:
-
Power Plant
-
Name:
-
Micro Steam Turbine 200KW Model N0.2-1.25 for Biomass Power Plant
-
Certificate:
-
ISO9001,CE
-
Rated power:
-
200KW
-
Frequency:
-
50HZ/60HZ
-
Installation Service:
-
Provided
-
Governing System:
-
PLC
-
Rotating speed:
-
3000 R/min
-
Generator type:
-
Three-phase asynchronous
-
Model:
-
N0.2-1.25
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
DTEC
-
Model Number:
-
N0.2-1.25
-
Output Voltage (V):
-
400
-
Application:
-
Power Plant
-
Name:
-
Micro Steam Turbine 200KW Model N0.2-1.25 for Biomass Power Plant
-
Certificate:
-
ISO9001,CE
-
Rated power:
-
200KW
-
Frequency:
-
50HZ/60HZ
-
Installation Service:
-
Provided
-
Governing System:
-
PLC
-
Rotating speed:
-
3000 R/min
-
Generator type:
-
Three-phase asynchronous
-
Model:
-
N0.2-1.25
Product Overview

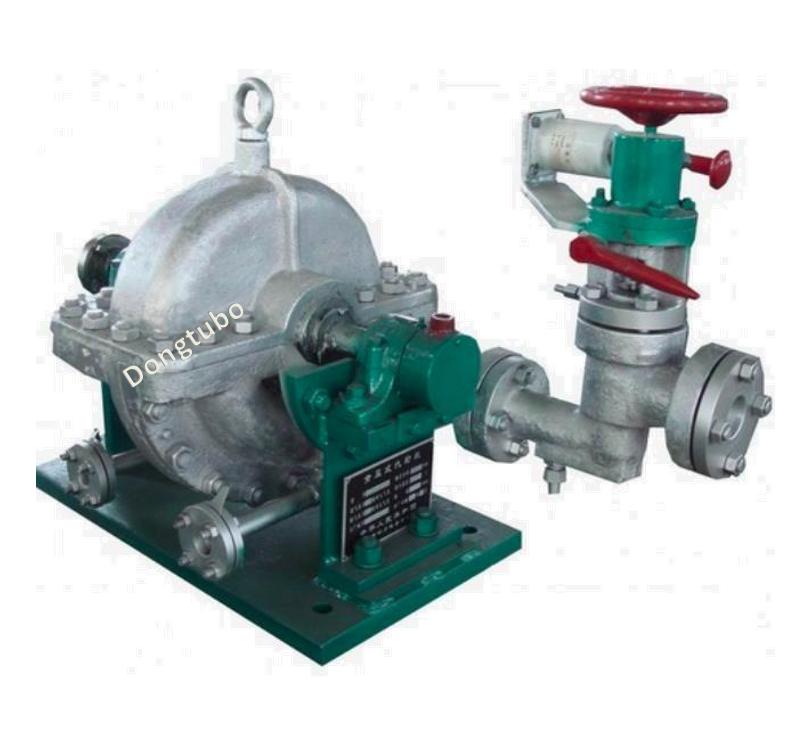

N0.2-1.25 Micro Steam Turbine
This Micro Steam Turbine is of high efficiency and suitable for small biomass power plant.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Power
|
200KW
|
|
2
|
Rated speed
|
3000RPM
|
|
3
|
Rated Inlet Pressure
|
1.25Mpa
|
|
4
|
Rated Inlet Temperature
|
190℃
|
|
5
|
Rated Inlet Steam Flow
|
4 t/h
|
|
6
|
Rated Exhaust Pressure
|
0.007Mpa
|
|
7
|
Rotor stages
|
Multi-stage
|
|
8
|
Connection between turbine and generator
|
Coupling
|
PRODUCT CONFIGURATION
High Accuracy valave
Famous brand PLC
High performance generator
SALES AND SERVICE NETWORK
Successful Project
Project in Greece
Project in Philipines
Project in Taiwan
SIMILAR PRODUCTS
FAQ
Q1: Why choose us?
A1: Dongturbo is a company rich experience in power equipment & parts supply as well as the complete power generation soluation supply for more than 13 years.
Q2: How long is the delivery time?
A2: Usually our standard delivery time is 60 days, for speical models, the delivery time will be longer. Q3: What is your payment terms?
A3: We accept T/T and L/C.
Q4: Do you offer installation service?
A4: Yes, we offer on-site installation service based on customer's requirments. Q5: What is the warranty time?
A5: Our warranty is 13 months from the FOB date or 12 months from the arrival date at project site, which comes first.
