Quick Details
-
Rated Lifting Moment:
-
480 kN.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
liebty
-
Weight (KG):
-
32700 kg
-
Product name:
-
Truck Mounted Crane
-
Type:
-
Liftling Equipment
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
Quick Details
-
Rated Loading Capacity:
-
12 ton
-
Max. Lifting Height:
-
30.5m
-
Engine Brand:
-
top brand
-
Rated Lifting Moment:
-
480 kN.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
liebty
-
Weight (KG):
-
32700 kg
-
Product name:
-
Truck Mounted Crane
-
Type:
-
Liftling Equipment
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
Contact
Sales Manager: Ryann
Huang
WhatsApp/WeChat/mobile: +86 19858195297
E-mail: ryann@liebty.com
Company: Liebty Machinery Technology (Hangzhou) Co.,Ltd
Address: Room 208, Building 3, No.1866, Binxing Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China
Product Description

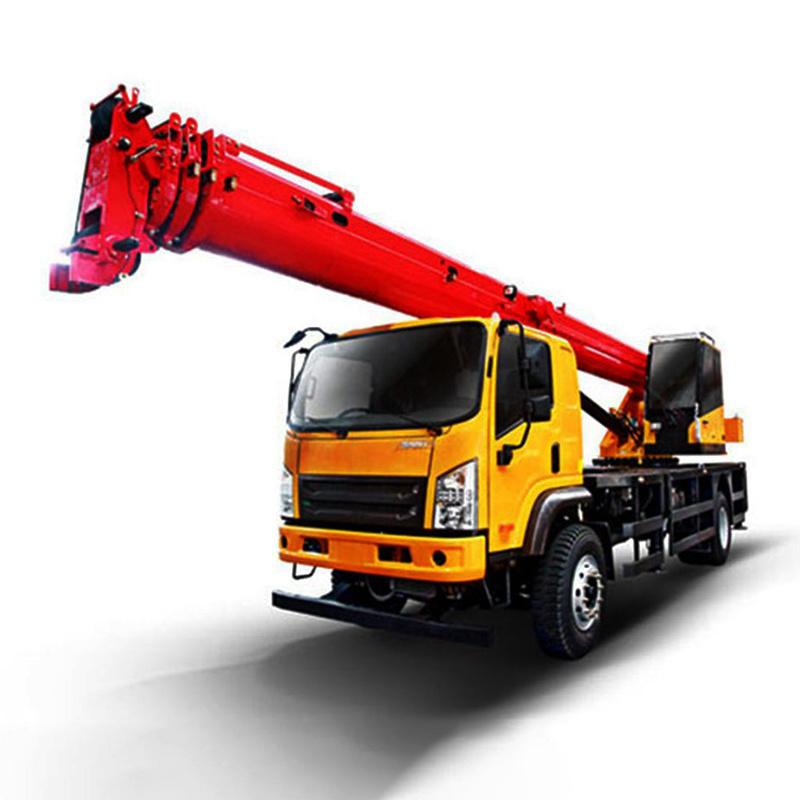

Chinese Top Brand STC120C 12 Ton Truck Crane With Telescopic Boom For Sale
Feature:
Good quality
It is adopted with international advanced distributed integrated bus data communication network, allowing processing of large amounts of data, fast speed and high stability. With streamlined full-width cab, it provides wider vision and more comfortable operation.
High safety and reliability
It is equipped with voice alarm system to prevent misoperation and ensure the safety of operation and personnel. The load moment limiter system with high precision, high stability and high intellectualization is applied to provide a full protection for lifting operations.
GCP system
The remote monitoring and management system can monitor equipment operating condition, collect operation parameter, and implement remote fault diagnosis and management. Customers can master the operating conditions of the crane, and inquire and order parts at home.
Product Parameters
|
Dimension
|
Unit
|
STC120C
|
|
Overall length
|
mm
|
12000
|
|
Overall width
|
mm
|
2500
|
|
Overall height
|
mm
|
3640
|
|
Power
|
|
|
|
Engine
|
|
YUCHAI
|
|
Engine rated power
|
kW/(r/min)
|
162/2300
|
|
Engine rated torque
|
N.m/(r/min)
|
960/1400
|
|
Travel
|
|
|
|
Max. travel speed
|
km/h
|
80
|
|
Min. turning diameter
|
m
|
10.5
|
|
Max. grade ability
|
%
|
40
|
|
Fuel consumption for 100km
|
L
|
28
|
|
Main performance
|
|
|
|
Max. rated total lifting capacity
|
t
|
16
|
|
Base boom
|
m
|
10.5
|
|
Fully extended boom
|
m
|
32
|
|
Fully extended boom+ jib
|
m
|
40
|
|
Working speed
|
|
|
|
Boom luffing time
|
s
|
50
|
|
Boom full extension time
|
s
|
65
|
|
Max. swing speed
|
r/min
|
2.1
|
|
Max. speed of main winch (single rope) (no load)
|
m/min
|
105
|
|
Max. speed of aux. winch (single rope) (no load)
|
m/min
|
105
|
