24 in 1 catv modulator
-
Video Input Impedance:
-
75Ω
-
Audio Pre-weighted:
-
50μs
-
Power Supply:
-
AC 220V
-
Dimensions:
-
19 Inch 4 U housing
-
Video Input Level:
-
1.0Vp-p
-
Flatness:
-
±1dB
-
Factory experience:
-
17years
-
Output level:
-
110db
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOLCK
-
Model Number:
-
WK-24M
-
Application:
-
CATV Head-end System
-
Type:
-
24 in 1 catv modulator
-
Video Input Impedance:
-
75Ω
-
Audio Pre-weighted:
-
50μs
-
Power Supply:
-
AC 220V
-
Dimensions:
-
19 Inch 4 U housing
-
Video Input Level:
-
1.0Vp-p
-
Flatness:
-
±1dB
-
Factory experience:
-
17years
-
Output level:
-
110db
Factory Price Fixed 24 Channel Catv Rf
Modular Home Analog Modulator

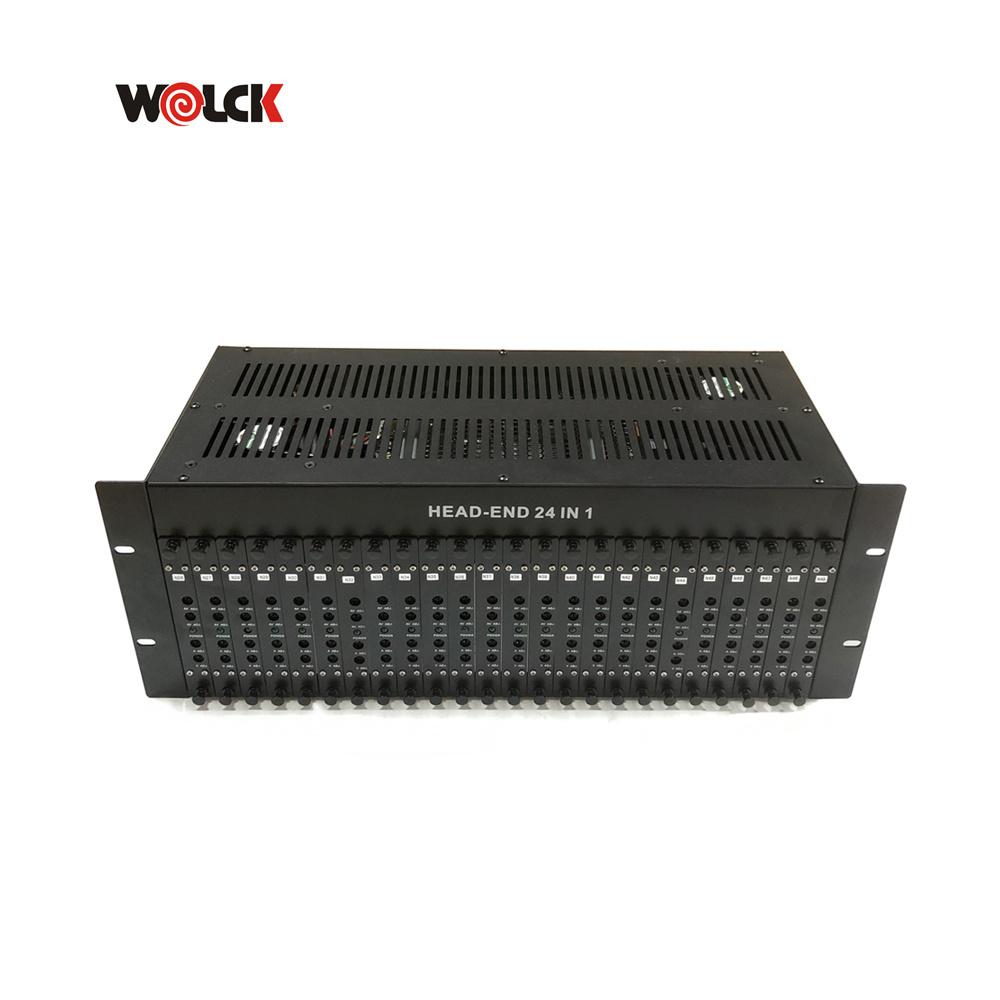

This model is a space saving and fixed channel modulator system. It consists of 24 individual, vertically mounted, fixed frequency modulators and an efficient switching type power supply module. It is designed for 19” rack mounting.
Each modulator is SAW filtered and is factory set to the desired channel and proper offset. Precise frequency is maintained with PLL circuitry. It offers excellent video performance and high reliability in 4U rack.
This 24 channels module type modulator is low cost and high stability, specially designed for MATV or SMATV system. Professional design with simple installation. It is easily operated or maintained by users.
|
Fixed channel
|
47～860MHz
|
|
Output level
|
≥105dBμV
|
|
Adjustable range of output level
|
0～-20dB （adjustable）
|
|
Image / sound power ratio
|
-10dB～-30dB continuously adjustable
|
|
Output impedance
|
75Ω
|
|
Parasitic output suppression ratio
|
≥60dB
|
|
Image carrier frequency accuracy
|
≤±5KHz（in VHF band）； ≤±10KHz（in UHF band）
|
|
RF output reflection loss
|
≥12dB（in VHF band）； ≥10dB（in UHF band）
|
|
Video input level
|
1.0Vp-p（corresponding to 87.5% modulation）
|
|
Video input impedance
|
75Ω
|
|
Differential gain
|
≤5%（when modulation is 87.5%）
|
|
Differential phase
|
≤5°（when modulation is 87.5%）
|
|
Chroma / Luminance Delay Difference
|
≤45 ns
|
|
Flatness in video band
|
±1dB
|
|
Video modulation range
|
0～90% continuously adjustable
|
|
continuously adjustable
Video signal-to-noise ratio |
≥55dB
|
|
Audio input level
|
1Vp-p（±50KHzfrequency deviation）
|
|
Audio input impedance
|
600Ω
|
|
Audio signal-to-noise ratio
|
≥57dB
|
|
Audio pre-emphasis
|
50μs
|
|
Power supply
|
AC 220V±10% 50Hz±2Hz，60W
|
|
Working environment temperature
|
0～40℃
|
|
Volume
|
19 inches 4U
|
