Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
renhotec
-
Model Number:
-
Connector For Speaker Box
-
Product name:
-
Connector For Speaker Box
-
Orientation:
-
straight
-
Material:
-
Plastic
-
Color:
-
Red BLACK
-
Mounting Type:
-
Panel Mount
-
Rated Current:
-
120A 250A 300A 500S
-
IP rating:
-
IP67
-
Rated Voltage:
-
600V AC
-
CONDUCTOR PLATING:
-
Nickel Plated
Quick Details
-
Type:
-
HVIL
-
Application:
-
Automotive
-
Gender:
-
Male&Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
renhotec
-
Model Number:
-
Connector For Speaker Box
-
Product name:
-
Connector For Speaker Box
-
Orientation:
-
straight
-
Material:
-
Plastic
-
Color:
-
Red BLACK
-
Mounting Type:
-
Panel Mount
-
Rated Current:
-
120A 250A 300A 500S
-
IP rating:
-
IP67
-
Rated Voltage:
-
600V AC
-
CONDUCTOR PLATING:
-
Nickel Plated
Connector For Speaker Box Line Connector Speaker Parts Copper Speaker Binding Post Refers To The Terminal Installed
New Energy Vehicle High Voltage Interconnection and
Charging Equipment Solution
- BMS/Energy Storage - EV/HEV - Rail Mass Transit - Process Control/Automation - Heavy Equipment
If You Still Not Found a Suitable Product, Please Contact Us>>

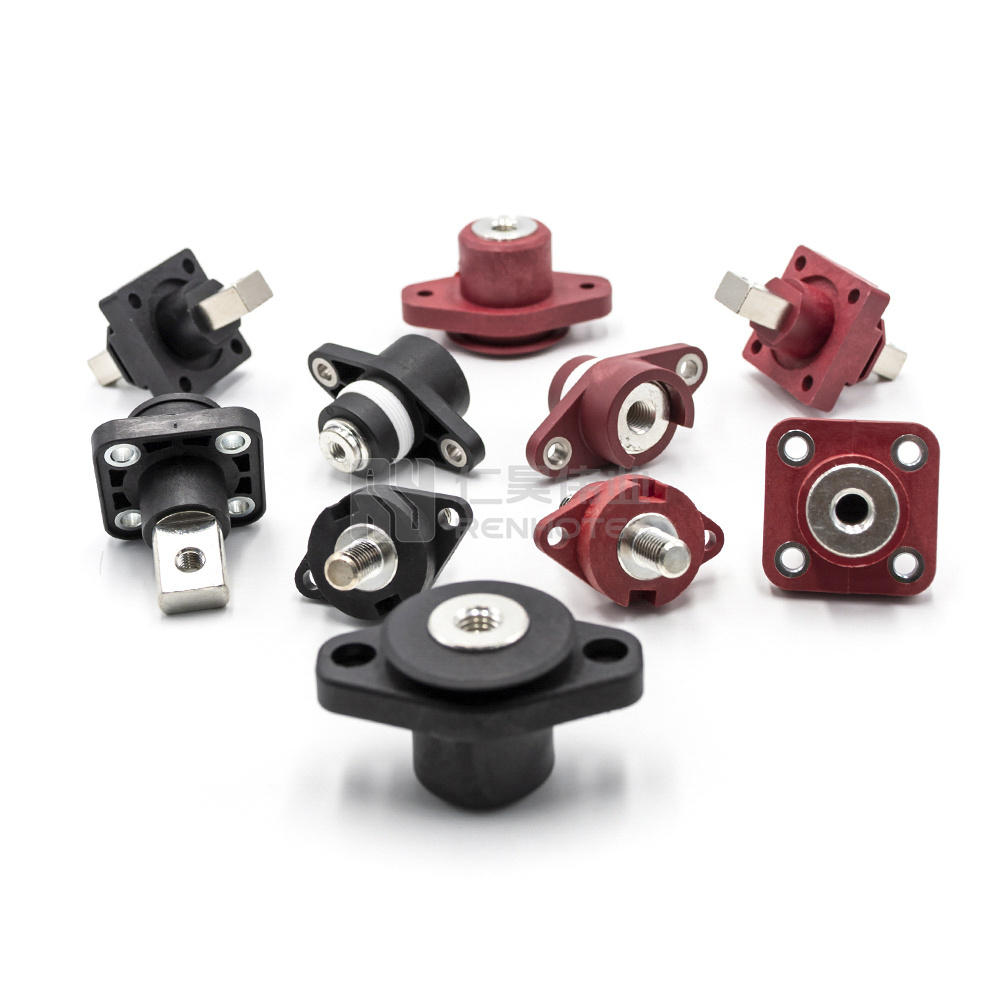

Full Series Battery Storage Connector
All types of High Voltage Connector from OEM Manufacturer in China
Products Introduction
The Energy Storage Connector Compression Lug is a Field Installable, High Reliable Alternative to Common Compression Lugs. Using Industry Standard Crimp, Screw, and Busbar Termination Options, Thus Eliminating the Need to Purchase Special Torque Tools. This Connector Available in Smaller Sizes, and Features a Quick Lock and Press-to-release Design.
Incorporating the Latest Flexcoil Finger Connecting Technology, Our Energy Storage Connector is a Compact, Quick Mating, and Robust Product Line.
Products Benefits
Touch Proof
360°Rotating Plug
Compactrobust Design
Various Termination Options
Three Color are available
Quick Lock and Press-to- Release Design
Products Feature
| Battery Storage Connector | |
| Connector Type | Plug / Socket |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Number of Positions | 1 Pin |
| Rated Current | 60A-350A |
| Termination Style | Crimp |
| Wire Range | 10- |
| IP Rating | Non/IP67 |
| Color Option | Red / Black / Orange |
| Material |
Shell : PA66
Contact : Cooper alloy,Silver plating |
||
| Electrical Performance |
Rated Voltage : 1000V/DC
Rated Current: From 60A to 500A MAX Withstand Voltage: 2500V AC Insulation Resistance: ≥1000MΩ |
||
| Mechanical Performance |
Terminal:6-12mm
Cable Range: 10~95mm2 Connection Type :Terminal machine Mating Cycles : >500 Shielding :360° |
||
| Environmental Performance |
IP Degree: IP67
Operating Temperature :-40℃~125℃ Flammability Rating: UL94 V-0 |
||
