Quick Details
-
Model Number:
-
sandwich panel
-
Fireproof Limit:
-
>3Hours
-
Anti-pressure:
-
>3.5Mpa
-
size:
-
2270* 610 * 50/60/75/90/100/120/150/180 mm
-
Core Material:
-
Cement,EPS and Sand,Fly ash
-
Light weight:
-
1 person can take up two pieces
-
Application:
-
wall/roof/floor
Quick Details
-
Type:
-
EPS Sandwich Panels
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZJT
-
Model Number:
-
sandwich panel
-
Fireproof Limit:
-
>3Hours
-
Anti-pressure:
-
>3.5Mpa
-
size:
-
2270* 610 * 50/60/75/90/100/120/150/180 mm
-
Core Material:
-
Cement,EPS and Sand,Fly ash
-
Light weight:
-
1 person can take up two pieces
-
Application:
-
wall/roof/floor
ZJT light weight exterior cement board panel / ready made external concrete wall panel
Specification:
partition eps cement wall board
46 dB sound insulation
0.221 W/mk thermal insulation
Light weight
Eco- friendly
EPS cement Sandwich panel is a kind of light weight energy-saving wall material taking Fiber reinforced Calcium silicone board or Cement Calcium Silicone Board as face panel, cement, EPS, fly ash as core and forming by one time compound.

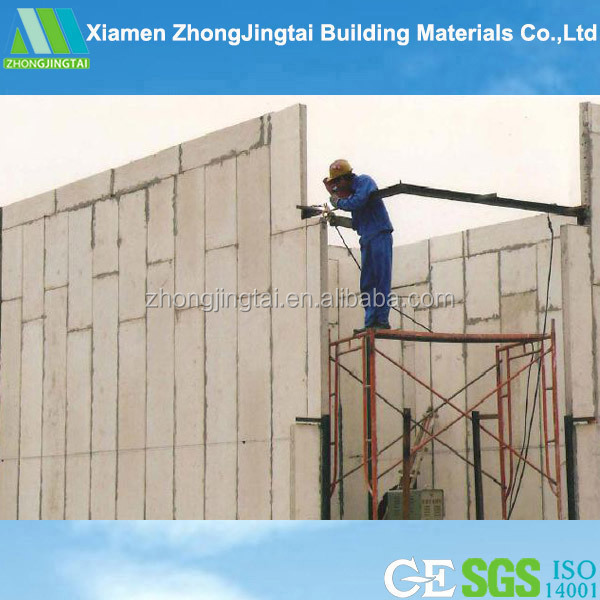

1. Product Pictures
2. Raw Materials of the Sandwich Board
3. Product Performance
| Specification | (PCS/M2)/20'GP |
| 2440mm*610mm*50mm | 264pcs /393m2 |
| 2440mm*610mm*60mm | 240pcs/357m2 |
| 2440mm*610mm*75mm | 204pcs/304m2 |
| 2440mm*610mm*90mm | 168pcs/250m2 |
| 2440mm*610mm*100mm | 144pcs/214m2 |
| 2440mm*610mm*120mm | 104pcs/155m2 |
| 2440mm*610mm*150mm | 96pcs/143m2 |
| 2440mm*610mm*180mm | 84pcs/125m2 |
4.Why choose our compound sandwich panel?
| features | more detail | ||||||||||||
| 1 | green | 100% free of harmful substances and are of A non-radioactive products, standard GB6566-2001. | |||||||||||
| 2 | lightweight economic | The volume-weight only 750-800kg/m3 , the weight of 75mm thickness ZJT board is 60kg/m2, equal to 1/6 of brick weight, 1/7 of 120mm thickness masonry. | |||||||||||
| 3 | increase valid space | the thickness of ZJT wall decreases 85mm by using 75mm thickness ZJT boards. Thus, valid space increases 1/m2 per 11.8mm. in other words, it can increase 6/m2 per 100/m2 . | |||||||||||
| 4 | moistureproof waterproof | will keep dry and leave no stains. During humid days, the boards will not condense water either. suitable to be installed in such wet areas as kitchens, bath rooms, basements because of its moistureproof and waterproof. | |||||||||||
| 5 | fireproof | Fireproof limit of ZJT boards is more than 4 hours and does not emit toxic gases under 1000 degree. The nonflammable performance reaches national A-class standard. | |||||||||||
| 6 | heat insulation | ZJT board is composed of special material to keep heat and thermal within a favorable condition. At same time, the ZJT boards are able to adjust moisture automatically and keep moisture at a balance level. | |||||||||||
| 7 | sound insulation | The raw materials of ZJT boards have good performance in sound insulation. ZJT board with 90mm thickness gains sound insulation of 42dB. | |||||||||||
| 8 | walls can be nailed and grooved | ZJT board can be grooved to have conductor arrangement or nailed to hang heavy object. The surface of ZJT board is smooth enough to make finisher processing directly with tile, wall trim and so on. | |||||||||||
| 9 | good integration | By using steels at the joints, the strength of walls is high enough to do partition in large story height and long span structures and it anti-seismic performance is several times higher than masonry. | |||||||||||
| 10 | easy and fast construction |
It can be cut to adjust length and width at will. The process of installation is easy and fast, without the need of plastering.
|
|||||||||||
Notes: All kinds of panels can be customized by customers' specific requirements,such as density and length of panel .
Application :
*All kinds of new and old building construction of indoor and outdoor decoration
*Indoor and outdoor decoration of office buildings, hospitals, shops, restaurants, bars and other public buildings;
*Interior and exterior wall decoration of family homes, luxury apartments, villas etc ; *Particularly suitable for high-rise building exterior wall insulation decoration .
Packaging & Delivery
|
Packaging Details: |
1. Free packing (with normal pallet and packing belt) 2. Standard exporting packing (wrapped with plastic thin film, wedge protect and good pallet) |
|
Delivery Detail: |
10-15 days |
