- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
50Hz
-
Welding Area:
-
81.5*20-50mm
-
Dimensions:
-
1790*720*160
-
Use:
-
Hot Air Welding
-
Weight (KG):
-
250 KG
-
Power (kW):
-
2.5
-
Marketing Type:
-
New Product 2022
-
Name:
-
tarpaulin welding machine
-
Application:
-
Hot Air Welding Machine
-
Operation Mode:
-
Semi-automatic
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huijian
-
Voltage:
-
110V/220V/380V/Customize
-
Frequency:
-
50Hz
-
Welding Area:
-
81.5*20-50mm
-
Dimensions:
-
1790*720*160
-
Use:
-
Hot Air Welding
-
Weight (KG):
-
250 KG
-
Power (kW):
-
2.5
-
Marketing Type:
-
New Product 2022
-
Name:
-
tarpaulin welding machine
-
Application:
-
Hot Air Welding Machine
-
Operation Mode:
-
Semi-automatic
Product Description

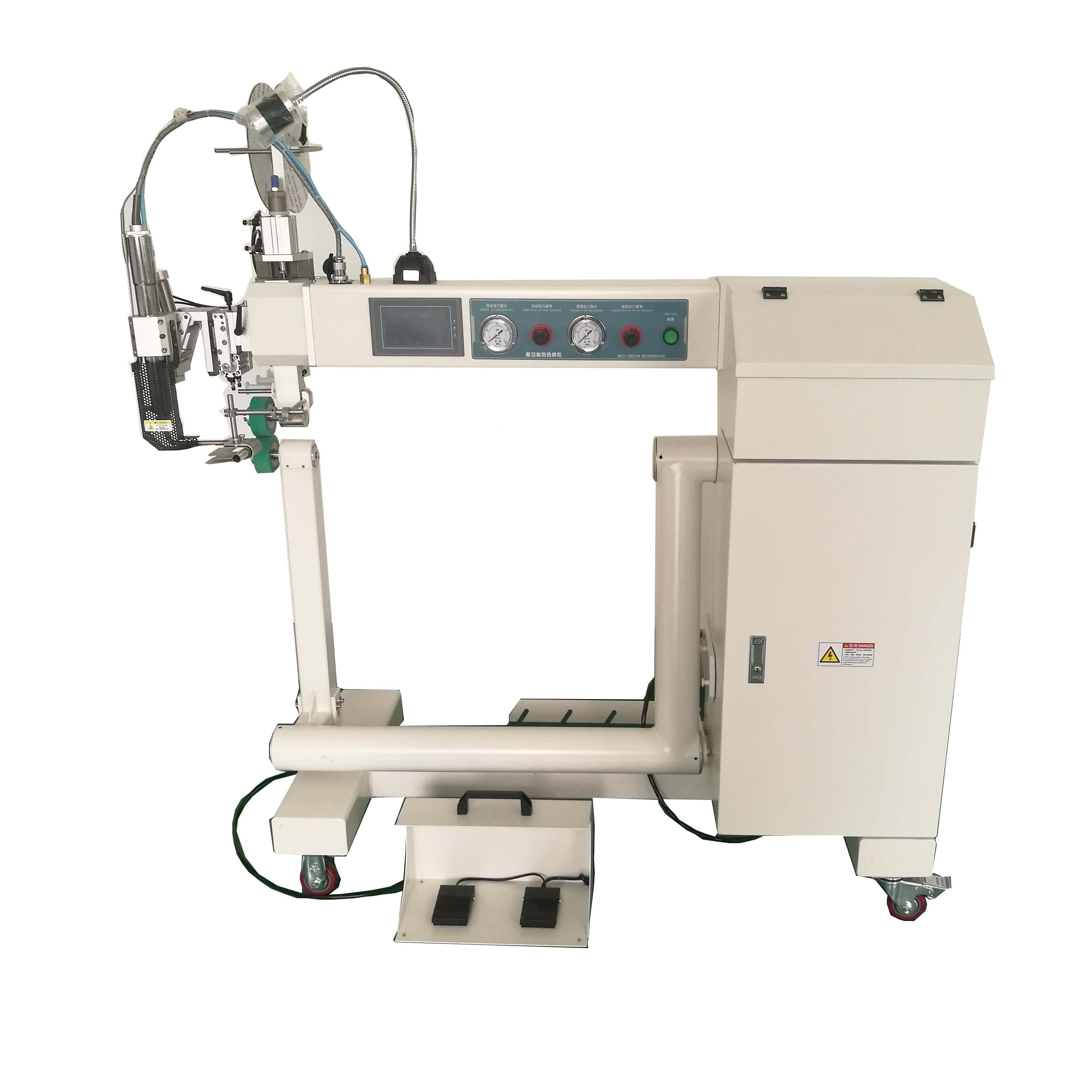

Product Application: Multifunction Hot Wedge & Hot Air Welding Machine
1. Suitable for wide range material seal
2. PLC/HMI easy operation touch screen , English Interface.
3. Quick, repeatable head adjustments for precision weld
4. Precise Temperature control, hot air heating up to 750 ' C
5.Arm length can be customized, 800 mm (standard), 1500 mm, 1800MM. etc
6. Available in hot wedge, hot air or equipped with both for optimal product production.
7. High Quality Imported components, Japan Mitsubishi PLC, OMRON, AIRTAC Pneumatic Parts, etc
8. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc
9. Machine can be customized according to your products, to achieve more convenient operation
1. Suitable for wide range material seal
2. PLC/HMI easy operation touch screen , English Interface.
3. Quick, repeatable head adjustments for precision weld
4. Precise Temperature control, hot air heating up to 750 ' C
5.Arm length can be customized, 800 mm (standard), 1500 mm, 1800MM. etc
6. Available in hot wedge, hot air or equipped with both for optimal product production.
7. High Quality Imported components, Japan Mitsubishi PLC, OMRON, AIRTAC Pneumatic Parts, etc
8. Quick, easy guide change for multiple seam configurations, overlap, hem, hem with cord, butt seal with tape, etc
9. Machine can be customized according to your products, to achieve more convenient operation

Specification
MODEL
|
CH-A12
|
POWER SUPPLY
|
AC-220V 50HZ
|
POWER
|
3000W
|
TEMPERATURE OF HEATING CONTROL
|
Up to 700℃ for hot air Heat control
|
TEMPERATURE OF HOT WEDGE
|
Up to 450℃ for hot wedge
|
SPEED
|
1-18m/min
|
PRESSURE
|
0.35-0.5Mpa
|
PINCH ROLLER WIDTH
|
20/30/40/50mm
|
NOZZLE WIDTH
|
20/30/45m
|
OPTION FUNCTION
|
Hot Wedge
|
DIMANSION
|
1500MM*750MM*1600MM ( L*W*H)
|
NET WEIGHT
|
245KG
|

Application

Packing & Delivery

FAQ
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect
power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
