Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3750X2280X1980mm
-
Power (kW):
-
12
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
4 axis cnc kit
-
Application:
-
wood chair, door, kitchen cabinet making
-
Controller:
-
Taiwan SYNTEC 6MB Controller
-
Spindle:
-
Italy 9KW HSD air cooling ATC spindle
-
Motors:
-
Japan 850W YASKAWA servo motors
-
Drives:
-
Japan YASKAWA drivers
-
Max rapid speed:
-
80000mm/min
-
Max working speed:
-
80000mm/min
-
Guide rail:
-
Taiwan HIWIN Square Rail
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3750X2280X1980mm
-
Power (kW):
-
12
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
4 axis cnc kit
-
Application:
-
wood chair, door, kitchen cabinet making
-
Controller:
-
Taiwan SYNTEC 6MB Controller
-
Spindle:
-
Italy 9KW HSD air cooling ATC spindle
-
Motors:
-
Japan 850W YASKAWA servo motors
-
Drives:
-
Japan YASKAWA drivers
-
Max rapid speed:
-
80000mm/min
-
Max working speed:
-
80000mm/min
-
Guide rail:
-
Taiwan HIWIN Square Rail

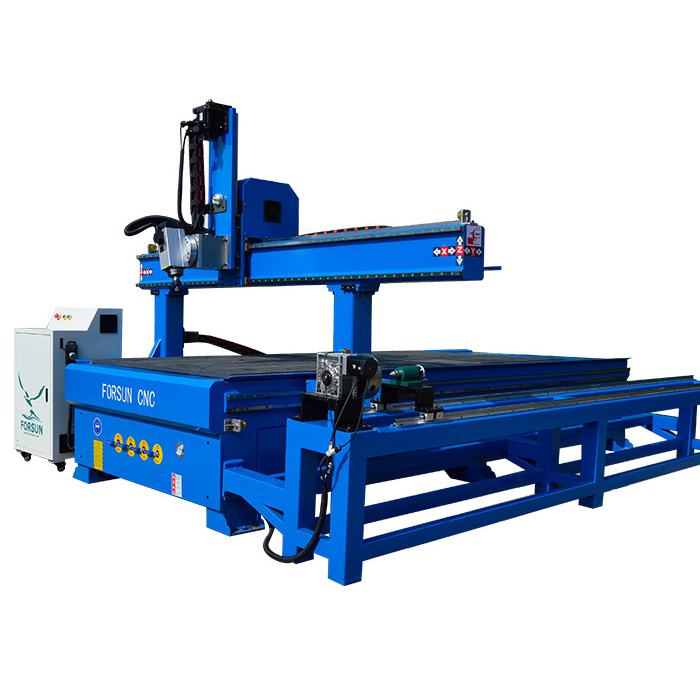

1325 spindle swing 180 degree 3d carving 4 axis 5 axis cnc router for polyurethane spray foam cutting
Standard Configuration of 4 Axis CNC Router:
1.Working size:1300*2500*400mm,C axis:+180°
2.Taiwan SYNTEC control system
3.Italy HSD 9.0KW air cooling spindle
4.Rotate head for spindle rotary
5.Japan YASKAWA servo driver and motor
6.Taiwan HIWIN linear guide
7.Helical rack and pinion for X,Y,TBI ball screw for Z axis
8.Japan Shimpo reducer for X,Y Axis
9.T slot vacuum table
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ
Spare parts of 4 Axis CNC Cutting Machine:
| 1.Controller | Syntec controller system 1.With separate control board,easy and convient to operate. 2.More than 20 years experience on cnc,with mature technology |
| 2.Spindle | Italy 9.0kw Spindle 1.Change tool automatically,save time and labor. 2.Strong power and long lifetime.the rotate speed max to 24000rpm |
| 3.Rotate head | Rotate head 1.Make spindle rotate at C axis to 180°,suitable for side drilling and cutting |
| 4.Servo system | Japan YASKAWA Servo driver and motor 1.With strong power and high precision |
| 5.Reducer |
Japan Shimpo Reducer 1.The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable |
| 6.Tool sensor | Auto tool Calibration 1.Promise the working precision for you. |
Technical data of wood cnc router:
|
Technical Data |
||
|
NO |
Description |
Parameter |
|
1 |
Positioning Accuracy |
±0.03/300mm |
|
2 |
Max. Rapid Travel Rate |
80000mm/min |
|
3 |
Max. Working Speed |
45000mm/min |
|
4 |
Spindle Speed |
0-24000RPM |
|
5 |
Command Language |
G Code |
|
6 |
Flash Memory |
512M |
|
7 |
Collet |
ER32 |
|
8 |
X,Y Resolution |
<0.03mm |
|
9 |
Running Environment Temperature |
0 - 45 Centigrade |
|
10 |
Relative Humidity |
30% - 75% |
|
11 |
Packing Size |
3720*2280*2100mm |
|
12 |
N.W. |
2500KG |
|
13 |
G.W. |
2700KG |
1) Mold: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Packing details of 4 axis woodworking machinery:
Why choose us cnc router?
Services of our cnc router machine
Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
