Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yingsheng
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1670*1000*1450mm
-
Weight:
-
400 kg
-
Product name:
-

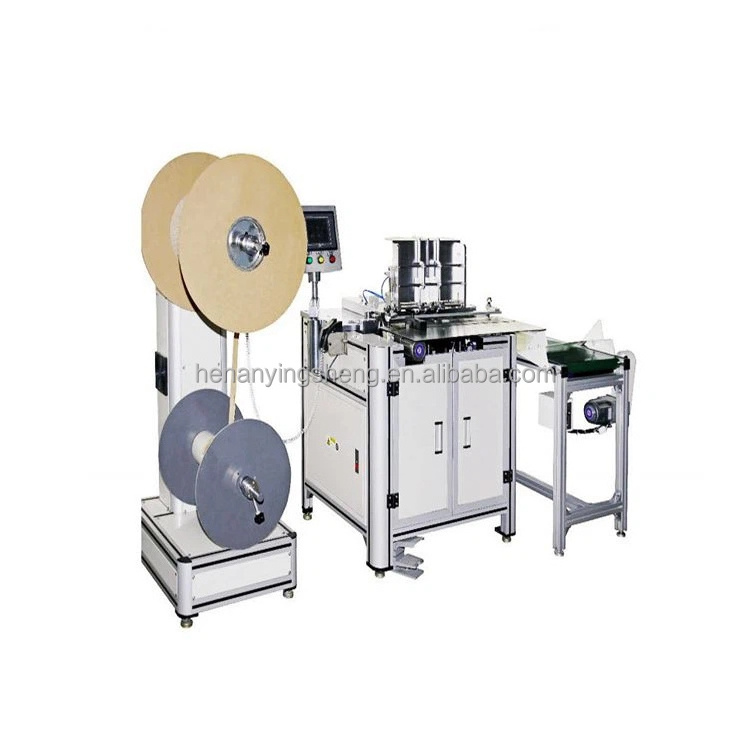

Notebook Wire O Automatic Metal Spiral Coil Binding Machine
-
Feeding Mode:
-
Manual, Automatic cutting, Insertion & Closing
-
Wire Size Options:
-
1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8"
-
Wire Pitches:
-
3:1 2:1
-
Max Paper Width:
-
520mm
-
Max Binding Width:
-
507mm
-
Min Paper Width:
-
75mm
-
Working Speed of the binding machine:
-
800-2000 books/hour
-
Worktable size:
-
660*300mm
-
Air Compressor (not Included):
-
1.5KW
Quick Details
-
Type:
-
Binding Machine
-
Production Capacity:
-
800-2000 books/hour
-
Max. workable width:
-
520mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yingsheng
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1670*1000*1450mm
-
Weight:
-
400 kg
-
Product name:
-
Notebook Wire O Automatic Metal Spiral Coil Binding Machine
-
Feeding Mode:
-
Manual, Automatic cutting, Insertion & Closing
-
Wire Size Options:
-
1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8"
-
Wire Pitches:
-
3:1 2:1
-
Max Paper Width:
-
520mm
-
Max Binding Width:
-
507mm
-
Min Paper Width:
-
75mm
-
Working Speed of the binding machine:
-
800-2000 books/hour
-
Worktable size:
-
660*300mm
-
Air Compressor (not Included):
-
1.5KW
Product Description
This machine was researched&developed on the base of Japanese &South Korea’s advanced technology. It is the best multifunctional binding machine with highest efficiency in China
Feature At A Glance
1.The book width it can bind is from 70mm to 520mm, quite a big range for you. D
ouble loop wire diameter 1/4” 5/16” 3/8” 7/16” 1/2” 9/16” 5/8” 3/4” 7/8” pitch 3:1 and 2:1
2. C
an bind up to 800-2000 book per hour
3.There is an auto hanger binding attachment along with the DWC-520 binding machine. It is equipped with an auto error reminder function,which helps you to work correctly.
4.We can provide you with a multi-language interface design if it is necessary for you.
3.There is an auto hanger binding attachment along with the DWC-520 binding machine. It is equipped with an auto error reminder function,which helps you to work correctly.
4.We can provide you with a multi-language interface design if it is necessary for you.
5.
Automatic transmit books, workers operate it very easily
6.
The actuating element of machine to switch a new slide type to ensure machine long life and stability
7.The operating video can be provided to show you how to use this machine, if you still not sure about the operation, please contact us directly.
7.The operating video can be provided to show you how to use this machine, if you still not sure about the operation, please contact us directly.
Specification
|
Model
|
YS-DWC520
|
|
Name
|
Double wire book binding machine
|
|
Feeding Mode
|
Manual, Automatic cutting, Insertion & Closing
|
|
Wire Diameter
|
1/4” 5/16” 3/8” 7/16” 1/2” 9/16”5/8” pitch 3:1 5/8” 3/4” 7/8” pitch 2:1
|
|
Max Paper Width
|
520mm
|
|
Max Binding Width
|
507mm
|
|
Min Paper Width
|
75mm
|
|
Working speed
|
800-2000 books/hour
|
|
Size of worktable
|
660x300(width and Depth)(mm)
|
|
Power
|
220v/1ph/50HZ/60Hz/0.2kw
|
|
Air Compressor
|
1.5KW
|
|
Air Pressure
|
6-8bar
|
|
function
|
binding book notebook calender
|
Packing & Delivery
1. Packing: Plywood Case for Each Machine.(Small machine or spare parts packed by carton）
2. Payment terms: T/T and Tradeassurance (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：2-35 business days after receiving the payment.
4. Shipping way: By sea from Shanghai or Ningbo Port; By Express or railway are avaliable.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
