Quick Details
-
Dimension(L*W*H):
-
5000x900x1800mm
-
Power (kW):
-
25
-
Weight (KG):
-
2200 kg
-
Panel Feed Speed(m/min):
-
6m/min
-
Name:
-
Edge Bander Machine
-
Application:
-
Plywood Veneer Production
-
Feeding Speed:
-
25 m/min
-
Total Power:
-
10kw
-
Edge Banding Thickness:
-
0.4-3 mm
-
Panel Width:
-
80mm
-
Finished products:
-
4*8 Feet Plywood
-
Raw material:
-
Waste Wood
-
Working methods:
-
CNC Automatic
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chuangdiao
-
Voltage:
-
380/400/415V
-
Dimension(L*W*H):
-
5000x900x1800mm
-
Power (kW):
-
25
-
Weight (KG):
-
2200 kg
-
Panel Feed Speed(m/min):
-
6m/min
-
Name:
-
Edge Bander Machine
-
Application:
-
Plywood Veneer Production
-
Feeding Speed:
-
25 m/min
-
Total Power:
-
10kw
-
Edge Banding Thickness:
-
0.4-3 mm
-
Panel Width:
-
80mm
-
Finished products:
-
4*8 Feet Plywood
-
Raw material:
-
Waste Wood
-
Working methods:
-
CNC Automatic

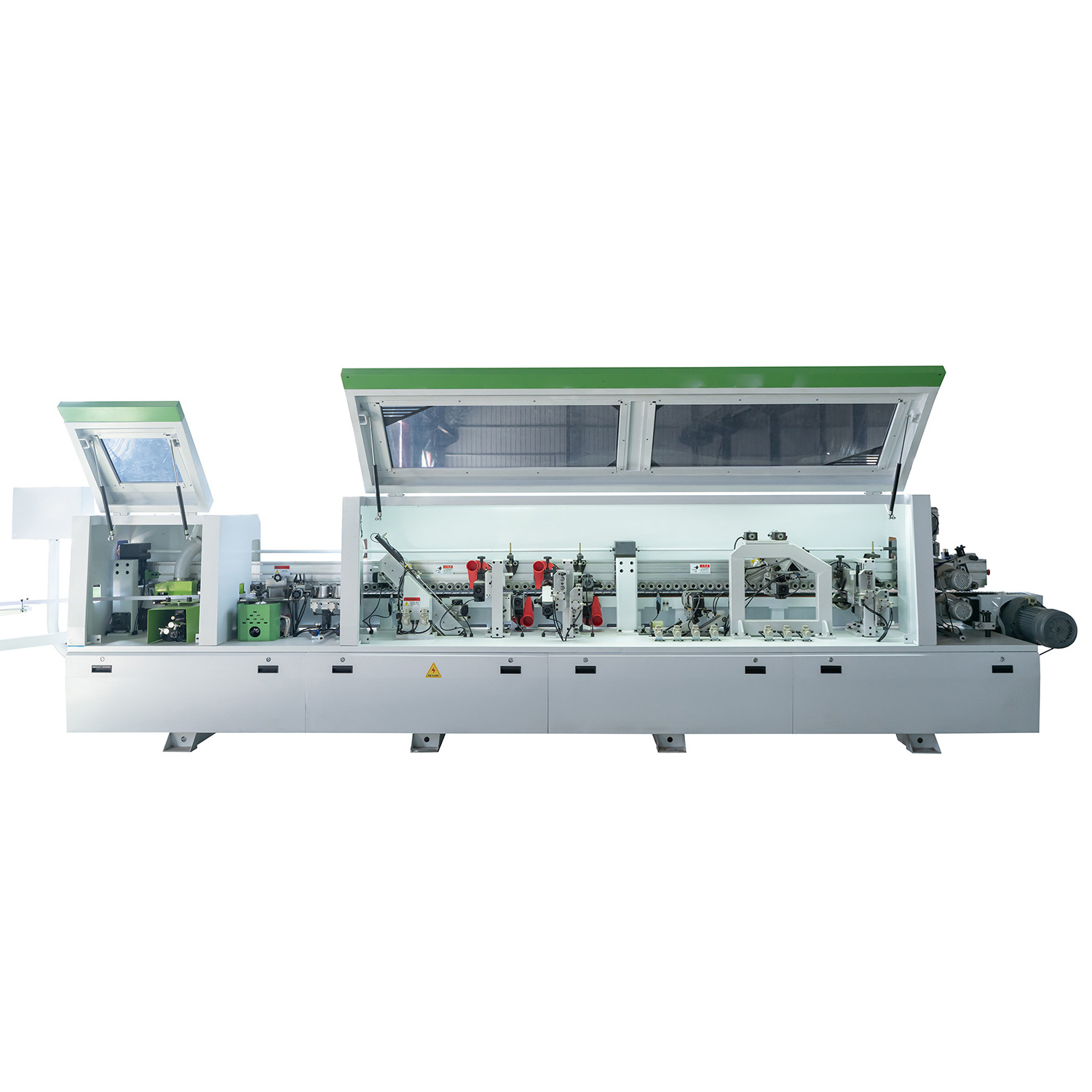

Product Description
The 8 functions edge banding machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure,reasonable layout and aesthetic appearance; Usage of sound insulation，Dust collection port, anti-overload devices;It has edge banding,the upper and lower trimmer,surface polishing work unit; it is a new, multi functional ,straight edge banding machine,which is very popular in woodworking furniture factory of all ages
|
Model
|
GD-5000
|
|
|
|
|||
|
Panel Feed Speed(m/min)
|
25m/min
|
|
|
|
|||
|
Edge Thickness
|
0.4-3mm
|
|
|
|
|||
|
Edge Width
|
15-55mm
|
|
|
|
|||
|
Edge banding height
|
12-60mm
|
|
|
|
|||
|
Panel thickness
|
8-30mm
|
|
|
|
|||
|
Mini work Panel Width
|
> 80mm
|
|
|
|
|||
|
Mini work Panel Length
|
>120 Mm
|
|
|
|
|||
|
Heating power of plastic box
|
1.5kw
|
|
|
|
|||
|
Plate preheating power
|
0.3KW
|
|
|
|
|||
|
End cutting motor power
|
0.55kw * 2 1200r / min200HZ
|
|
|
|
|||
|
Transmission motor power
|
2.2KW
|
|
|
|
|||
|
Polishing motor power
|
0.2kw*2 1400r / min 300Hz
|
|
|
|
|||
|
Fine trimming motor power
|
0.75kw*2 1800r / min 300Hz
|
|
|
|
|||
|
Total power
|
25kw
|
|
|
|
|||
|
Air pressure
|
0.9MPA
|
|
|
|
|||
|
Machine weight
|
1500KG
|
|
|
|
|||
|
Machine size
|
5000*900*1800mm
|
|
|
|
|||
Detailed Images
PLC
Gluing
The glue mechanism adopts a special structure to geatinize the plates and the costing materials uniformaly, and that ensures a
more solid conglutination
The end trimming is through a precise guide track movement, and it adopts the automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
The rough and fine trimmng is use for trim the extra edge tape, and it adopts automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly
The buffing device uses the cloth wheel to polish the processed boards, which make a more smooth surface
It can makes boards edge more smooth, then make the edge effect more strong
application
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Packing&Shipping
Company Introduction
Jinan Grandio CNC Equipment Co., Ltd
is an innovative enterprise engaged in research and development, production, sales and good after- sales service.
The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining
Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the
high quality products sent to the whole country, to the world. We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive. At present, the company's products are sold to major and small cities and regions in China.
high quality products sent to the whole country, to the world. We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive. At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
Our Services & Strength
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone;
2.We will provide free training, free maintenance, free technical upgrading;
3.We accept the ODM, OEM;
4.Oversea agents wanted, if any interest, pls let me know.
2.We will provide free training, free maintenance, free technical upgrading;
3.We accept the ODM, OEM;
4.Oversea agents wanted, if any interest, pls let me know.
FAQ
1. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
2.This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1.English guide video and instruction book are sent to you free together with the cnc router.
2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3.We have our own after-sales service team,24 hours technical support by calling, video and email.
3.Term of payment ?
30% T/T in advance, 70% T/T before delivery.After we receive your deposit, we will arrange production,meanwhile machine pictures and videos will be sent to clients in time,when they make sure everything is ok, transfer the balance and we arrange to delivery machine.
