Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HEAVTH
-
Weight (KG):
-
120 KG
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
2 Year
-
Core Components:
-
Laser source, Water chiller
-
Product name:
-
Laser Welding Machine
-
Laser power:
-
1000W 2000W 3000W (optional)
-
Application:
-
Metal Stainless Steel Laser Welder
-
Function:
-
Metal Welding Service
-
After-sales Service Provided:
-
Online Support
-
Cooling System:
-
Water Chiller
-
Laser head:
-
Raytool WSX OSPRI Optional
-
Laser type:
-
Continuous Fiber Laser
-
Keywords:
-
High-quality Laser Welding Machine
-
Laser wavelength:
-
1080nm Laser Welding
Quick Details
-
Max. Output Power:
-
3000w
-
Use:
-
Welding, Cutting, Cleaning
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HEAVTH
-
Weight (KG):
-
120 KG
-
Marketing Type:
-
Hot Product 2024
-
Warranty of core components:
-
2 Year
-
Core Components:
-
Laser source, Water chiller
-
Product name:
-
Laser Welding Machine
-
Laser power:
-
1000W 2000W 3000W (optional)
-
Application:
-
Metal Stainless Steel Laser Welder
-
Function:
-
Metal Welding Service
-
After-sales Service Provided:
-
Online Support
-
Cooling System:
-
Water Chiller
-
Laser head:
-
Raytool WSX OSPRI Optional
-
Laser type:
-
Continuous Fiber Laser
-
Keywords:
-
High-quality Laser Welding Machine
-
Laser wavelength:
-
1080nm Laser Welding
Product information
Unbeatable Benefits
●
FAST: Up to 4X faster than TIG
●VERSATILE: Wide range of materials – up to 1/4 in. (6.35 mm)
●EASY: Optimized presets reduce learning curve
●CONSISTENT: High-quality, repeatable results
●FLEXIBLE: Simple and challenging applications
●PRODUCTIVE: Pre- and post-weld cleaning capability
Product Details
|
Model
|
MS-1000 HLW
|
MS-1500 HLW
|
MS-2000 HLW
|
MS-3000 HLW
|
|||
|
Laser Source
|
1000W
|
1500W
|
2000W
|
3000W
|
|||
|
Shielding Gas
|
Argon,Nitrogen,Air
|
Argon,Nitrogen,Air
|
Argon,Nitrogen,Air
|
Argon,Nitrogen,Air
|
|||
|
Input Power
|
4KW
|
6KW
|
8KW
|
12KW
|
|||
|
Water Chiller
|
16L 3000W
|
16L 3000W
|
19L 4000w
|
21L 5000W
|
|||
|
Mains Supply
|
AC220V 1PH
|
AC220V 1PH
|
AC220V 1PH
|
AC380V 3PH
|
|||
|
Laser Wavelength
|
1080±3nm
|
|
|
|
|||
|
Fiber Length
|
10m
|
|
|
|
|||
|
Focal Length
|
150MM
|
|
|
|
|||
|
Cooling mode
|
Intelligent water chiller
|
|
|
|
|||
|
Overrall Dimension
|
850*450*630mm
|
|
|
|
|||
|
Total Weight
|
130kg (155 lbs.)
|
|
|
|
|||
|
Material
|
MS-1000HLW
|
MS-1500HLW
|
MS-2000HLW
|
MS-3000HLW
|
|
Stainless Steel
|
up to 3.5 mm
|
up to 5 mm
|
up to 6.5 mm
|
up to 9 mm
|
|
Galvanized Steel
|
up to 3.5 mm
|
up to 5 mm
|
up to 6.5 mm
|
up to 9 mm
|
|
Mild Steel
|
up to 3mm
|
up to 4mm
|
up to 6 mm
|
up to 9 mm
|
|
Aluminum
|
up to 3 mm
|
up to 4 mm
|
up to 5 mm
|
up to 6 mm
|
LightWELD - Turnkey Handheld Laser Welding & Cleaning Systems
● Adjustable laser welding power up to 1500 W
● Preset & user-defined modes optimize material-thickness combinations
● Wobble welding controls for 5 mm of additional weld width
● Rear panel provides intuitive connections for power, process gas and external accessory controls
● Cleaning power up to 2500 W peak for greater welding quality and finishing capability
● Preset & user-defined modes optimize material-thickness combinations
● Wobble welding controls for 5 mm of additional weld width
● Rear panel provides intuitive connections for power, process gas and external accessory controls
● Cleaning power up to 2500 W peak for greater welding quality and finishing capability
Less Heat & Distortion for More Productivity & Flexibility
TIG welding
is a time-consuming, two-handed welding method that requires an experienced, highly-skilled operator. TIG welding may
generate extreme heat that deforms thin materials, produces poor visual finishes.
generate extreme heat that deforms thin materials, produces poor visual finishes.
MIG welding
requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Heavth Laser Welder
enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent
results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Factory Presets Ensure Optimized Welds & Cleaning
●Simple preset selection ensures consistent high-quality laser welds and cleaning
●Presets include wobble welding function to accommodate wider seams and for parts with poor fit-up
●Operators can instantly switch between presets to process multiple material-thickness combinations
●Advanced operators can customize presets, save for future use and can be used by novice operators to produce the same results
●Presets include wobble welding function to accommodate wider seams and for parts with poor fit-up
●Operators can instantly switch between presets to process multiple material-thickness combinations
●Advanced operators can customize presets, save for future use and can be used by novice operators to produce the same results
LightWELD is Fast & Easy to Set Up
●
Ergonomic, compact and proven to be the most comfortable and easy to use laser gun with built-in wobble welding functionality.
● 2-step trigger and part contact sensor enhance operator safety
● Purpose-built nozzle tips for various weld joint types and pre and post weld cleaning applications
● A single cable from the unit delivers laser power, gas and control connections to the gun
● 2-step trigger and part contact sensor enhance operator safety
● Purpose-built nozzle tips for various weld joint types and pre and post weld cleaning applications
● A single cable from the unit delivers laser power, gas and control connections to the gun
Fast and Easy Setup
●
Clearly labeled rear connections make getting started fast and easy
● Simply plug in power cord and gas connection, attach clamp to work surface, and the system is ready to go.
● Laser power, gas, and gun control are delivered through a single cable.
● An ethernet computer connection provides access to advanced parameter settings to fine tune and save process parameters.
● Simply plug in power cord and gas connection, attach clamp to work surface, and the system is ready to go.
● Laser power, gas, and gun control are delivered through a single cable.
● An ethernet computer connection provides access to advanced parameter settings to fine tune and save process parameters.

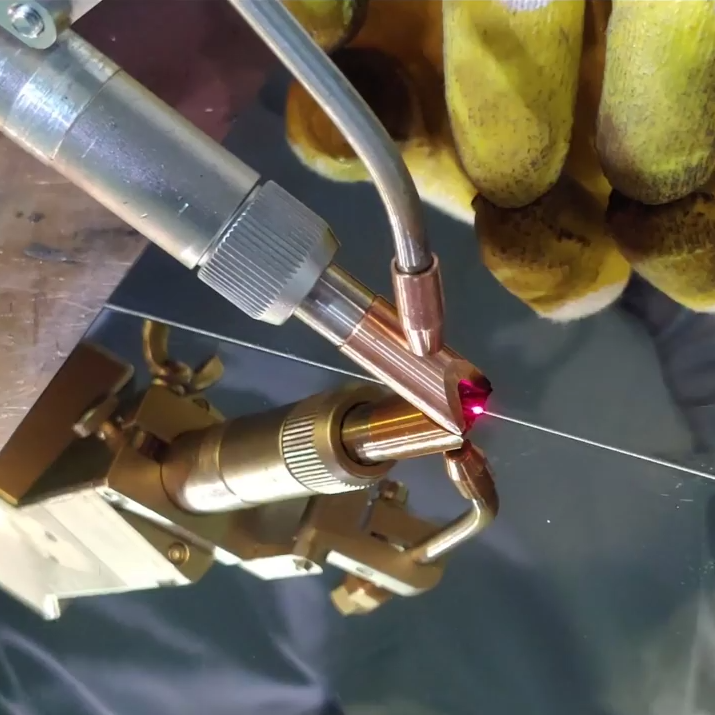

Optional Wire Feeding Package
●
Wire welding capability extends laser welding applications to poorly fit-up parts
● Used for low carbon steel, stainless steel, aluminum and non-ferrous metals and alloys
● Wire feed speed range 40 – 600 cm/min (15 - 230 ipm)
● Wire diameter capacity 0.8 to 1.6 mm ( 0.035''- 0.063'')
● Wire feed tips: 0.8mm, 0.9mm, 1.2mm, 1.6mm
● Used for low carbon steel, stainless steel, aluminum and non-ferrous metals and alloys
● Wire feed speed range 40 – 600 cm/min (15 - 230 ipm)
● Wire diameter capacity 0.8 to 1.6 mm ( 0.035''- 0.063'')
● Wire feed tips: 0.8mm, 0.9mm, 1.2mm, 1.6mm
Handheld Laser Welding & Cleaning Systems
Easy to Learn
Built-in factory presets for welding and cleaning reduce learning curves, new welders can be trained within hour and experienced welders realize an immediate increase to productivity
Highly Productive
High-speed welding that is 4X faster than TIG, with simple material preparation and minimal post-finishing, plus wobble welding and wire feed options for consistent high-quality results
Highly Capable
Easily weld and clean thick, thin and reflective metals with low heat input from < .040" (1.0mm) up to 1/4" (6.35mm) with minimal part distortion, improved visual appearance and increased overall part quality
Built-in factory presets for welding and cleaning reduce learning curves, new welders can be trained within hour and experienced welders realize an immediate increase to productivity
Highly Productive
High-speed welding that is 4X faster than TIG, with simple material preparation and minimal post-finishing, plus wobble welding and wire feed options for consistent high-quality results
Highly Capable
Easily weld and clean thick, thin and reflective metals with low heat input from < .040" (1.0mm) up to 1/4" (6.35mm) with minimal part distortion, improved visual appearance and increased overall part quality
Cutting finished products show
