Quick Details
-
Brand Name:
-
Hord
-
Model Number:
-
QV-166S-1C25
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25 ℃~+80 ℃(with no icing )
-
Protection Level:
-
IP65
-
Application:
-
Household appliances, electric force, telecommunications equipments
-
Electrical life:
-
100000 Times Above
-
Mechanical Life:
-
10000000 Times Above
-
Operating Speed:
-
0.1mm/s to 1m/s
-
Contact Resistance:
-
15mΩ max.(initial value)
-
Insultation Resistance:
-
100mΩ min. (at 500 VDC)
-
Vibration Frequency:
-
10-50 Hz
-
Shock Resistance:
-
1000m/s2
-
Storage Operating Humdity:
-
85% RH Below
-
Certification:
-
-
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hord
-
Model Number:
-
QV-166S-1C25
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25 ℃~+80 ℃(with no icing )
-
Protection Level:
-
IP65
-
Application:
-
Household appliances, electric force, telecommunications equipments
-
Electrical life:
-
100000 Times Above
-
Mechanical Life:
-
10000000 Times Above
-
Operating Speed:
-
0.1mm/s to 1m/s
-
Contact Resistance:
-
15mΩ max.(initial value)
-
Insultation Resistance:
-
100mΩ min. (at 500 VDC)
-
Vibration Frequency:
-
10-50 Hz
-
Shock Resistance:
-
1000m/s2
-
Storage Operating Humdity:
-
85% RH Below
-
Certification:
-
-
Packaging & Delivery
| Packaging Details | Standard carton packing |
|---|---|
| Delivery Time | 3-15days |
Product Description

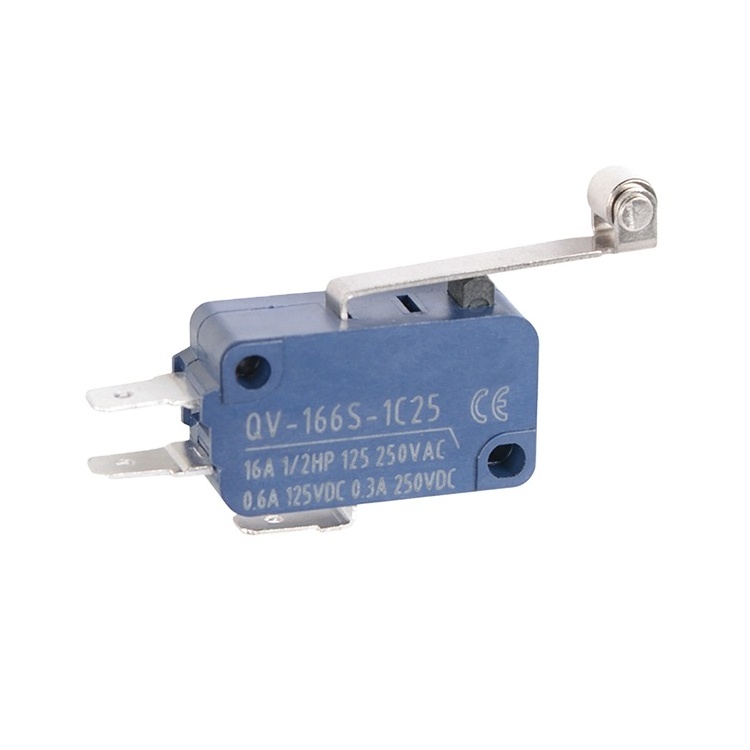

Professional Manufacture Toggle Snap Action Micro Switch with Long Roller Lever
Product Show
-High accuracy of action position
-Good shock resistance, maximum 1000m/s2
-Good heat resistance,maximum operating temperature is T105 ℃
-High-strength shell when mounting the plastic shell can withstand torsional moment of 6kgf.cm without break
