MAX/Raycus/JPT/IPG laser, famous brand, customized Schneider / Omron / Chint First-class electrical brand, safe, stable and reliable.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDQY
-
Dimension(L*W*H):
-
1110*490*750mm
-
Year:
-
2023
-
Weight (KG):
-
145 KG
-
Product name:
-
CW Laser Cleaning Machine
-
Cooling way:
-
Water cooling
-
Laser type:
-
CW fiber laser
-
Size(L*W*Hmm):
-
1021*570*1000
-
Application:
-
Large Steel Structure, Pipe, etc
-
Laser Power:
-
1000w/2000W/1500W
-
Laser source:
-
Max
-
Cooling system:
-
S & A
-
Cleaning head:
-
SDQY
-
Control system:
-
SDQY
Quick Details
-
Power:
-
2000w
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
MAX
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDQY
-
Dimension(L*W*H):
-
1110*490*750mm
-
Year:
-
2023
-
Weight (KG):
-
145 KG
-
Product name:
-
CW Laser Cleaning Machine
-
Cooling way:
-
Water cooling
-
Laser type:
-
CW fiber laser
-
Size(L*W*Hmm):
-
1021*570*1000
-
Application:
-
Large Steel Structure, Pipe, etc
-
Laser Power:
-
1000w/2000W/1500W
-
Laser source:
-
Max
-
Cooling system:
-
S & A
-
Cleaning head:
-
SDQY
-
Control system:
-
SDQY

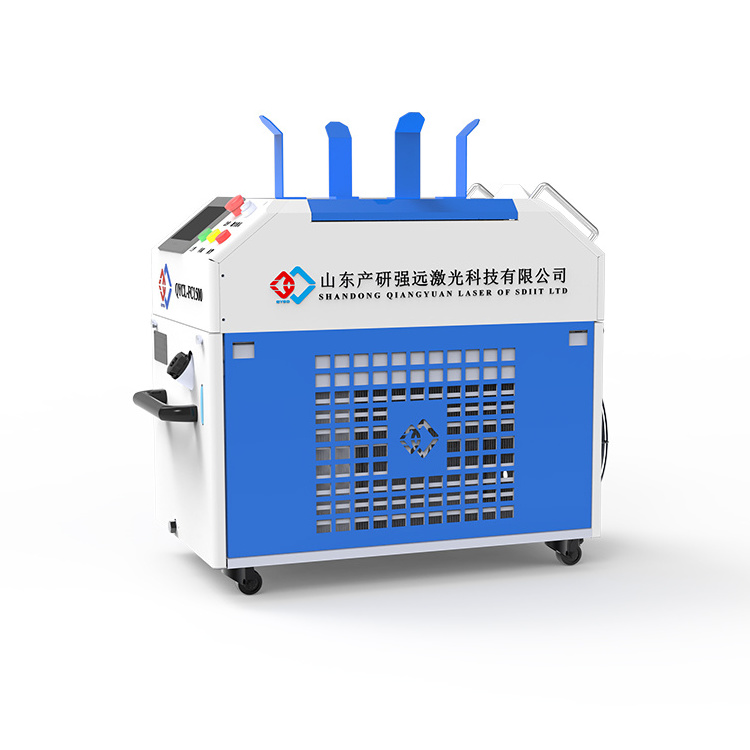

Portable Laser Rust Removal Machine for Sale Handheld Laser Cleaning Machine 1000w 1500w 2000w 3000w Laser Gun to Remove Rust
Products Description
Portable Laser Rust Removal Machine for Sale Handheld Laser Cleaning Machine 1000w 1500w 2000w 3000w Laser Gun to Remove Rust machine
a
dopt famous brand core components, safe, stable and reliable. Equipped with self-developed intelligent control system and visual control panel. Ergonomic design hand-held cleaning head, easier to operate and durable. It can be used for high-intensity and complex environmental cleaning in rail, Marine ships, construction machinery and other fields.
Product Paramenters
|
Model
|
|
QYCL-FC1000
|
QYCL-FC1500
|
QYCL-FC2000
|
QYCL-FC3000
|
||||
|
Laser power (W)
|
|
1000
|
1500
|
2000
|
3000
|
||||
|
Rated power (kW)
|
|
5
|
6.6
|
9.6
|
12.6
|
||||
|
Power adjustment range (%)
|
|
10-100
|
|
|
|
||||
|
Scan width (mm)
|
|
10-150/10-300
|
|
|
|
||||
|
Laser type
|
|
Continuous Wave Laser
|
|
|
|
||||
|
Output central wavelength (nm)
|
|
1070~1090
|
|
|
|
||||
|
Cooling method
|
|
Water cooling
|
|
|
|
||||
|
Fiber length (m)
|
|
10 (Optional to 15)
|
|
|
|
||||
|
Output type
|
|
QBH（LOC）
|
|
|
|
||||
|
Dimension L*W*H (mm)
|
|
917*490*750
|
|
1110*490*750
|
1240*510*1040
|
||||
|
Weight (kg)
|
|
119
|
|
145
|
220
|
||||
|
Power supply (VAC)
|
|
220
|
|
|
380
|
||||
Product Details
High-quality core components
Hand-held cleaning head
Ergonomic design, small size and light weight, professional water and air circuit design, built-in temperature sensor protect the
optical lens, easy to maintenance and with low cost of use.
Professional mechanical structure design
Adopt 360°silent universal wheel and integrated embedded water chiller design, smaller, easier to move. Rear air duct & air intake
grilles on both sides, more efficient heat dissipation with longer service life.
Open functional design
Visual multi-language touch control screen, equipped with a variety of industrial bus communication protocol interface to real-time monitoring of the control system status, help users quickly locate and solve problems.
Product Application
Surface rust removal
Carbon steel descaling
Weld cleaning
Paint stripping from
Steel pipe paint removal
Aluminum plate surface
