Quick Details
-
Brand Name:
-
Eonkey or OEM
-
Use:
-
FTTX
-
Warranty Time:
-
2 years
-
product name:
-
2 ports fiber optic terminal box
-
size:
-
142*127*37mm
-
max fibers:
-
12 fibers
-
Material:
-
ABS
-
Color:
-
black or White
-
port type:
-
2pcs SC Duplex adapter;2pcs 4core LC adapter
-
Installation:
-
wall mount
-
weight:
-
1.5kg
Quick Details
-
Type:
-
Fiber optic terminal box
-
Model Number:
-
EK0601-2G
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Eonkey or OEM
-
Use:
-
FTTX
-
Warranty Time:
-
2 years
-
product name:
-
2 ports fiber optic terminal box
-
size:
-
142*127*37mm
-
max fibers:
-
12 fibers
-
Material:
-
ABS
-
Color:
-
black or White
-
port type:
-
2pcs SC Duplex adapter;2pcs 4core LC adapter
-
Installation:
-
wall mount
-
weight:
-
1.5kg

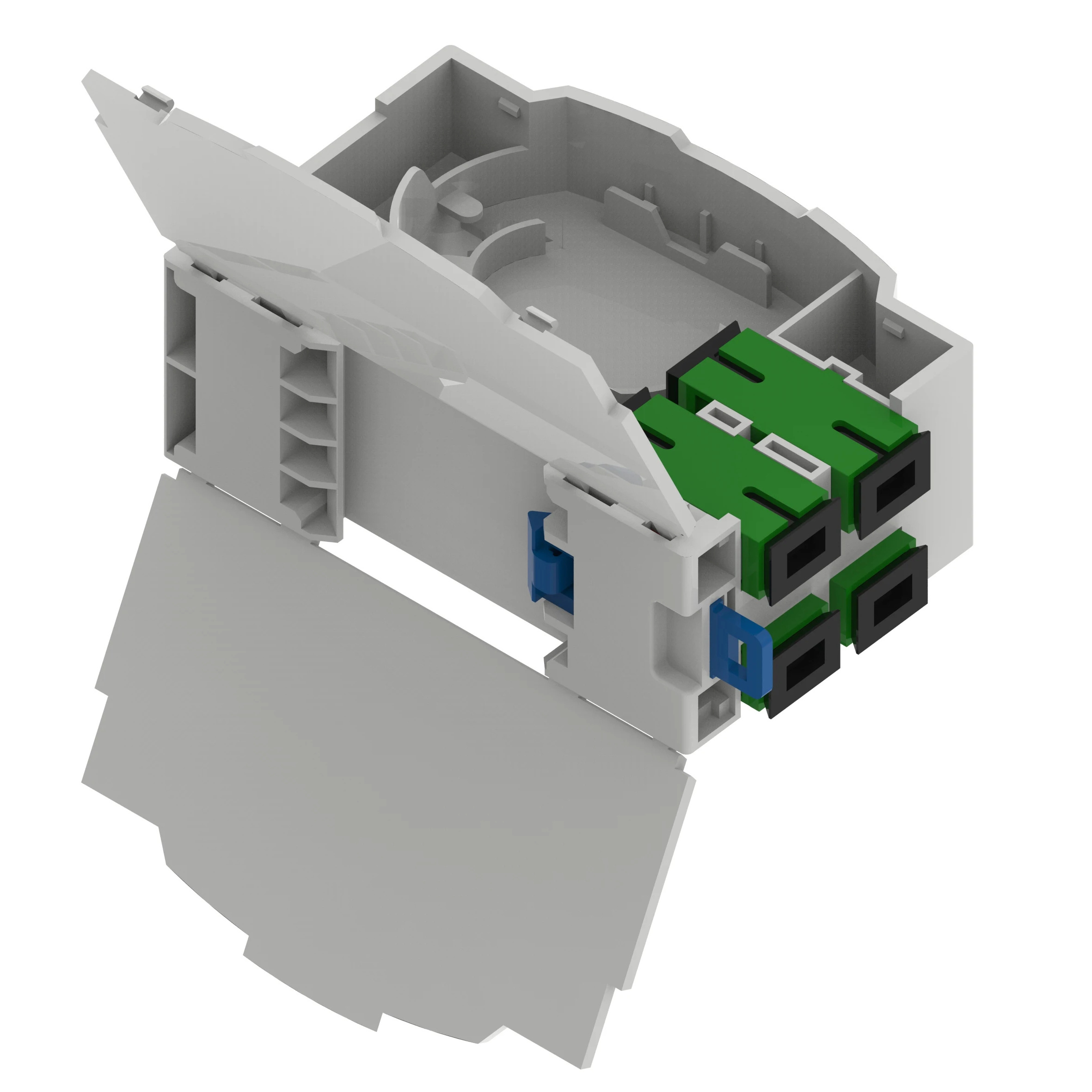

2 ports SC duplex adapter indoor fiber optic terminal box
|
Item |
Technical parameters |
|
Applicable scope |
Indoor Cable |
|
Fiber Diameter |
125μm ( G 652 & G 657 ) |
|
Tight Buffer Diameter |
250μm & 900μm |
|
Applicable mode |
SM&MM |
|
Tensile strength |
>50 N |
|
Operating temperature |
-40~ +85 ℃ |
|
Adapter type |
SC & L C |
|
Insertion Loss |
≤0.2dB ( 1310nm & 1550nm ) |
|
Dimensions ( LxWxH) |
80 x 7 0 x 18 (mm) |
Small size, light weight, pleasing in appearance.
UV Resistant and Weather Proof.
Great for wall mounting and din rail installation.
Wall mounted with mechanical protection function
Hinge and convenient press-pull button lock design.
