Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
LifeSRC
-
Model Number:
-
WM-05
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.5hp
-
Structure:
-
Votex pump
-
Outlet Size:
-
G1/2"
-
Power:
-
0.37KW, 0.37KW
-
HP:
-
0.5HP
-
Volt.:
-
380V
-
Frequency:
-
50HZ
-
Speed:
-
2850rpm
-
Max/Rated Head:
-
28m/22m
-
Max. Capacity:
-
2500LPH
-
Weight:
-
9kgs
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry
-
Pressure:
-
Low Pressure
-
Voltage:
-
380V
-
Warranty:
-
1 year
-
Brand Name:
-
LifeSRC
-
Model Number:
-
WM-05
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.5hp
-
Structure:
-
Votex pump
-
Outlet Size:
-
G1/2"
-
Power:
-
0.37KW, 0.37KW
-
HP:
-
0.5HP
-
Volt.:
-
380V
-
Frequency:
-
50HZ
-
Speed:
-
2850rpm
-
Max/Rated Head:
-
28m/22m
-
Max. Capacity:
-
2500LPH
-
Weight:
-
9kgs

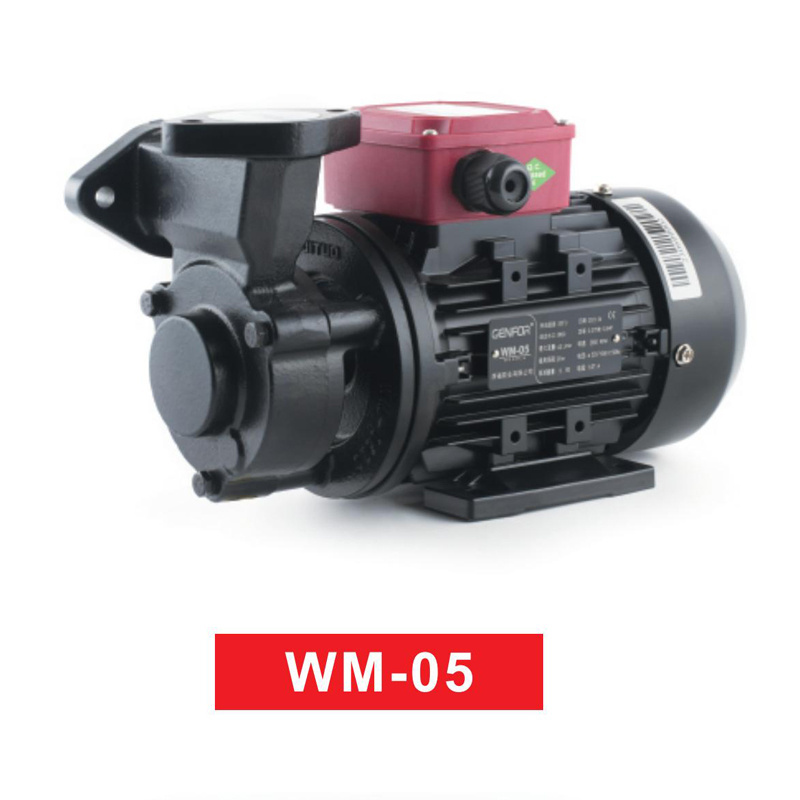

WM High Temperature Vortex Pump
Product Overview
High temperature resistance, Low temperature resistance, Small Size,Stainless steel, Low noise, Small vibration, Stable performance.
Application Area
Mold temperature controlling, Medical sterilization, Reaction kettle, Steam generator, Welder cooling, Testing instrument, Boiler feed water, Hot water furnace,Food equipment, Circulation.
Medium
Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.
| Model | Diameter | Motor | Performance Parameter | Pump Weight (kg) | ||||||
| Inlet | Outlet |
Power (kw) |
HP | Voltage (V) | Frequency (HZ) | Speed (r/min) | Max/Rated Head(m) | MaxCapacity (m/h) | ||
| WM-05 | DN20 | DN20 | 0.37 | 0.5 | 380 | 50 | 2850 | 28/22 | 2.5 | 9 |
| WM-05S | DN20 | DN20 | 0.37 | 0.5 | 220 | 50 | 2850 | 28/22 | 2.5 | 9 |
| WM-10 | DN20 | DN20 | 0.75 | 1 | 380 | 50 | 2850 | 38/28 | 3.3 | 13 |
| WM-10S | DN20 | DN20 | 0.75 | 1 | 220 | 50 | 2850 | 38/28 | 3.3 | 13 |
| WM-20 | DN25 | DN25 | 1.5 | 2 | 380 | 50 | 2850 | 55/30 | 5.5 | 18 |
| WM-30 | DN40 | DN40 | 2.2 | 3 | 220 | 50 | 2850 | 85/50 | 8.4 | 24 |
