Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Workmates
-
Model Number:
-
KB-S
-
Product name:
-
Manual Hand Winch
-
Certification:
-
CE ISO
-
Feature:
-
Easy Operation
-
Material:
-
Alloy Steel
-
Type:
-
Hand Windlass
-
Usage:
-
Lifting Goods
-
Brake:
-
Winch Automatic Brake
-
Keyword:
-
Hand Winch Cable Winches
-
Rated line pull:
-
800-2600LBS
-
Gear ratios:
-
4.1:1/5:1/10:1
Quick Details
-
Power Source:
-
Hand
-
Application:
-
CRANES
-
Capacity:
-
800-2600LBS
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Workmates
-
Model Number:
-
KB-S
-
Product name:
-
Manual Hand Winch
-
Certification:
-
CE ISO
-
Feature:
-
Easy Operation
-
Material:
-
Alloy Steel
-
Type:
-
Hand Windlass
-
Usage:
-
Lifting Goods
-
Brake:
-
Winch Automatic Brake
-
Keyword:
-
Hand Winch Cable Winches
-
Rated line pull:
-
800-2600LBS
-
Gear ratios:
-
4.1:1/5:1/10:1
Product Description
Product Features:

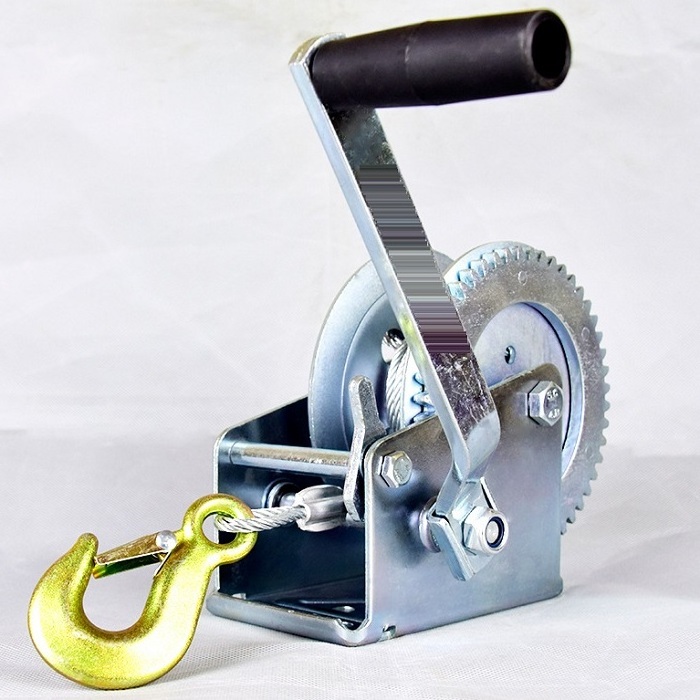

Hand winch is a mechanical device that pulls goods by hand moving the winch drum. It can be used in harsh environment for vehicle self-rescue, remove obstacles, drag items, installation facilities and other operations, can also be used as a modern electronic control automatic operation line supporting equipment.
1.
High versatility, easy and fast transfer.
2. Light and smart, safe and secure to use.
3. Positive action brake can hold the load in any position.
4. Compact structure, small size, light weight, large weight.
5. Easy to carry and can be connected from any direction of the car.
|
Product Model
|
KB-S-800
|
KB-S-1200
|
KB-S-1800
|
KB-S-2600
|
|
Pull-lift Capacity(kg)
|
370-180kg
|
545-270kg
|
820-410kg
|
1200-1600kg
|
|
Hand Force Required(kg)
|
14.5kg
|
15kg
|
22kg
|
19kg
|
|
Hub Diameter(mm)
|
φ40mm
|
φ50mm
|
φ70mm
|
φ80mm
|
|
Handle Length(mm)
|
160mm
|
210mm
|
320mm
|
320mm
|
|
Gear Ratio
|
4.1:1
|
4.1:1
|
5:1
|
10:1
|
|
Rope Diameter(mm)
|
φ4mm
|
φ5mm
|
φ7mm
|
φ8mm
|
|
Rope Length(m)
|
36m
|
23m
|
24m
|
18m
|
|
Net Weight(kg)
|
3kg
|
3.3kg
|
8kg
|
10.3kg
|
