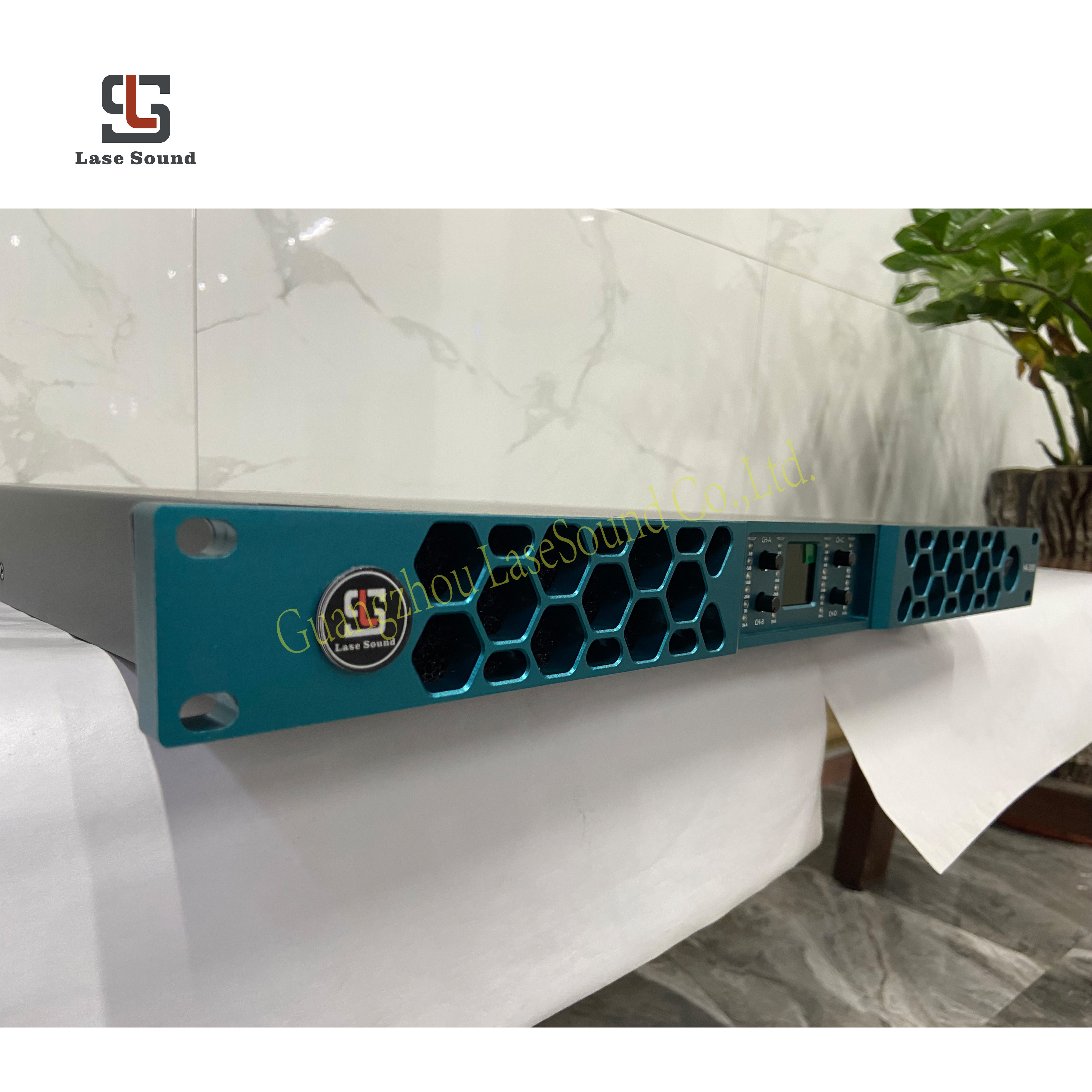

2ch 3000W professional m audio outdoor pro 1u power class d amplifier digital

2ch 3000W professional m audio outdoor pro 1u power class d amplifier digital

FOB Reference Price: Get Latest Price

≥2 Pieces

US $645

≥4 Pieces

US $640

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: H2-3000

Place of Origin:: Guangdong, China

Style:: power 1U digital amplifier

feature:: 2 ohms stable power amplifier

output power:: 3000w /8ohms

voltage:: 110v or 220v

warranty:: 2 years

application:: outdoor big activities

special service:: OEM service offered

Certification:: ce

Quick Details

Type:: Professional Amplifier

Channels:: 2

Brand Name:: lase

Model Number:: H2-3000

Place of Origin:: Guangdong, China

Style:: power 1U digital amplifier

feature:: 2 ohms stable power amplifier

output power:: 3000w /8ohms

voltage:: 110v or 220v

warranty:: 2 years

application:: outdoor big activities

special service:: OEM service offered

Certification:: ce

wholesale cheap professional power amplifier transformer amplifier for audio sound system

2 ohms Workable 1u digital power amplifier	Model Number	D2-3000	D4-2000
Rated Output Power (THD+N= 1% , 1kHz continue sine wave, all channel driving)	8Ω/Stereo	2x3000W	4x2000W
		4Ω/Stereo	2X5100W	4X3400W
		2Ω/Stereo*	2X7140W	4X4760W
		16Ω/Bridge	1X6000W	2X4000W
		8Ω/Bridge	1X10200W	2X6800W
		4Ω/Bridge*	1X14280W	2X9520W
Bridge RMS voltage(THD+N=1%, 1kHz)			154.9V	126.5V
Slew rate(1kHZ, low-pass filter bypassed)			50V/us
Sensitivity(Rated Power,1kHz)			selectable 41dB 38dB 35dB 32dB
THD+N(10%Rated Power,typical)			0.01%
IMD-SMPTE(10%Rated Power,typical)			0.01%
DIM30(10%Rated Power,typical)			0.01%
Cross-talk(20Hz-1kHz,below Rated Power)			≥90dB
Frequency response(10% Rated Power,20Hz-20kHz,8Ω			±0.2dB
Input impedance			20kΩ (Balance),10kΩ(Unbalance)
Damp factor(8Ω,20Hz-200Hz			≥5000
SNR(A weighted 20Hz-22kHz)			≥115dB
Main power			90~260VAC,50~60Hz
Protection			Under voltage, DC, Over temperature,Over load limiter,Short protection
Size(WxHxD)			483x44x465mm

Product description
产品性能介绍说明

a,High efficiency and energy saving, operation cost is low,
b,Compact and light weight,structure is firm.
c,Comply with the safety and EMC standards.
d,90~260VAC / 50~60HZ Wide range power supply.
e,First-class quality, thanks for the components from international high-end manufacturers.
f,Temperature control fan for quiet operation. g,Modular design and maintenance is convenient.
h,Very suitable for mobile show.
i, Reasonable design makes you feel relaxed in the process of using.

Product Usage

- Product usage introduction

产品使用方式介绍

stage music show using

concert

Bar

outdoor

Description of product use effect

产品使用效果说明

indoor party

wedding

church

About Lase Sound

Lase sound is a factory which specializes in research, developing, manufacturing, sales and technical services, It mainly in producing professional speaker, line array speaker, power amplifier, subwoofer, Monitors, karaoke system and peripheral device.

Located in hua du district Guangzhou, with 6000 square meters plant, 14 years experience since 2005, We are committed to develop different quality level speakers to meet various requirement, offer project solutions, accept custom made, welcome OEM/ODM !
