Quick Details
-
Load capacity:
-
70 tons
-
Volume capacity:
-
64 cubic meters
-
Axle load:
-
22.5 t
-
Max. operating speed:
-
100km/h
-
Track Gauge:
-
1435mm
-
Tare weight:
-
20t
-
Lengths over the coupler:
-
19700mm
-
Bogie Type:
-
Y25Lsd1-K
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Railteco
-
Usage:
-
Shippments of containers 20GP, 40GP by railway
-
Load capacity:
-
70 tons
-
Volume capacity:
-
64 cubic meters
-
Axle load:
-
22.5 t
-
Max. operating speed:
-
100km/h
-
Track Gauge:
-
1435mm
-
Tare weight:
-
20t
-
Lengths over the coupler:
-
19700mm
-
Bogie Type:
-
Y25Lsd1-K
Product Description

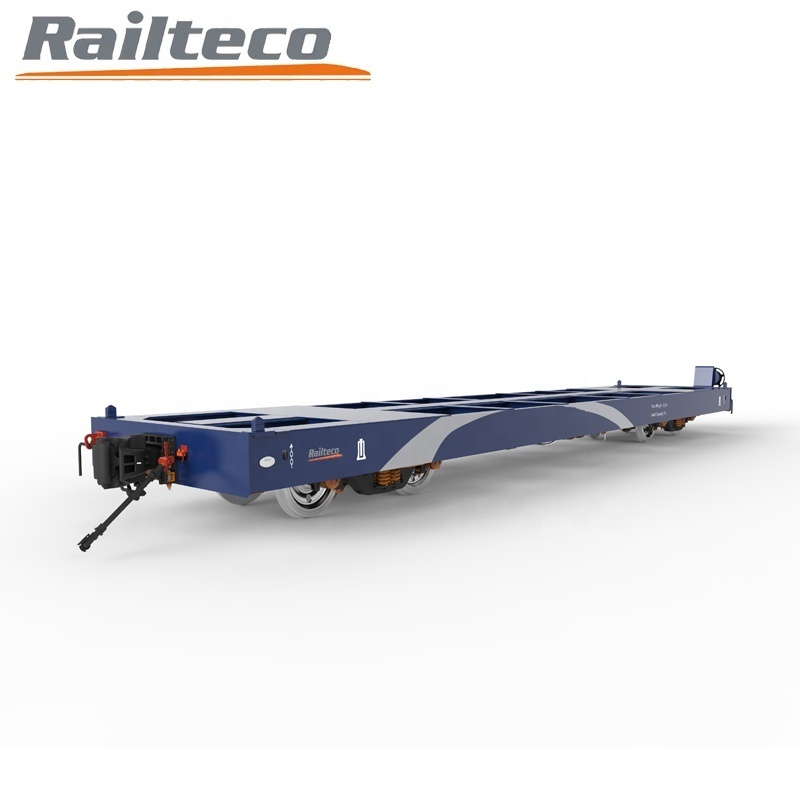

Railway/Railroad Container Flat Wagon is specially designed for carrying containers and swap bodies of various lengths(20', 30', 40') classified in UIC592.
The wagon design meets the requirements of TSI, EN, UIC standard.
The max.operation speed is 120km/h.
Series 1 freight containers-1CX, 1C, 1CC, 1BX, 1B, 1BB, 1AZ, 1A, 1AA.
Symmetrical swap bodies-(20), (21), 22, 23, 24,(26), (29), (30), (31), 40, 42, (44), (45).
Asymmetrical swap bodies-NA+(81), 82, (84), (85), (86)(1), (60)(2)(3).
Loading possibilities are in accordance with loading diagram.
