Quick Details
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Product name:
-

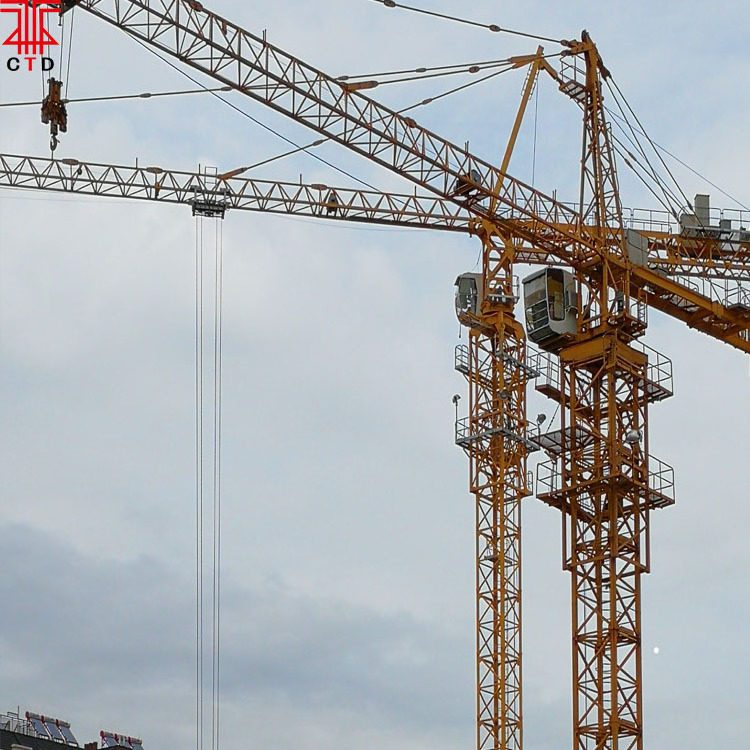

QTZ125 TC6016 tadano crane price tower cranes for sale
-
Steel Supplier:
-
Q345B, Ma Steel
-
Raw material for mast:
-
Angle steel 180*180*18
-
Mast section size:
-
2*2*3m/panel style,L66A1
-
Mechanism Supplier:
-
Jiangte Drive
-
Motor Supplier:
-
Jiangte Motor
-
Electric control:
-
Schneider
-
Mitsubish PLC:
-
FX2N-80MR-001 5900
-
Rope capacity:
-
460m
-
Rope length for free standing height:
-
360m
-
Certification:
-
ISO9001 & CE
Quick Details
-
Rated Loading Capacity:
-
1.6T
-
Max. Lifting Height:
-
200
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Product name:
-
QTZ125 TC6016 tadano crane price tower cranes for sale
-
Steel Supplier:
-
Q345B, Ma Steel
-
Raw material for mast:
-
Angle steel 180*180*18
-
Mast section size:
-
2*2*3m/panel style,L66A1
-
Mechanism Supplier:
-
Jiangte Drive
-
Motor Supplier:
-
Jiangte Motor
-
Electric control:
-
Schneider
-
Mitsubish PLC:
-
FX2N-80MR-001 5900
-
Rope capacity:
-
460m
-
Rope length for free standing height:
-
360m
-
Certification:
-
ISO9001 & CE
Product Description
Name: 10 Ton 60m Self Erecting Hammer Head Tower Crane
Parameter:
| Item | Parameter | ||||
| Rated hoisting moment | 1250kn.m | ||||
| Working radius | 2.5-60m | ||||
| Load capacity at max radius | 1.6t | ||||
| Max load capacity | 10t | ||||
| Free standing height | 50.5m | ||||
| Max attached height | 200m | ||||
| Working range adjustable | 48m, 54m, 60m | ||||
|
Hoisting
mechanism (VFD+PLC) |
Falls | 2 | 4 | ||
| Lifting capacity(t) | 0-2.5 | 0-5 | 0-5 | 0-10 | |
| Speed(m/min) | 0-80 | 0-40 | 0-40 | 0-20 | |
| Motor | YZPBF250M1-6-45KW | ||||
|
Hoisting
mechanism (VFD+PLC) |
Speed(m/min) | 0-56 | |||
| Motor | YPBE132S-4-5.5KW | ||||
|
Slewing
mechanism (VFD+PLC) |
Speed(m/min) | 0-0.6 | |||
| Motor | YTW112M-4-4KW*2 | ||||
| Climbing speed(m/min) | 0.5 | ||||
| Counterweight(t) | 48m jib | 54m jib | 60m jib | ||
| 15.45 | 17.85 | 18.9 | |||
| Mast section size(L*W*H),m | 2*2*3, panel style | ||||
| Working temprature | -40°C to 60°C | ||||
| Max working wind(m/s) | 20 | ||||
| Total Power(KW) | 60 | ||||
| Rated working voltage & current | 380V/116V | ||||
