Quick Details
-
Machine Type:
-
Soap Production Line
-
Product name:
-
Commercial Bar Soap Making Machine
-
Voltage:
-
220V/380V
-
Material:
-
Stainless Steel304
-
Power:
-
7.5KW
-
Dimension:
-
1650*1350*1100mm
-
Weight:
-
2000KG
-
MOQ:
-
1SET
-
Advantage:
-
Easy Operation High Efficiency
-
Application:
-
Mini Soap Making Machine
Quick Details
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
HENTO
-
Weight (KG):
-
2000
-
Machine Type:
-
Soap Production Line
-
Product name:
-
Commercial Bar Soap Making Machine
-
Voltage:
-
220V/380V
-
Material:
-
Stainless Steel304
-
Power:
-
7.5KW
-
Dimension:
-
1650*1350*1100mm
-
Weight:
-
2000KG
-
MOQ:
-
1SET
-
Advantage:
-
Easy Operation High Efficiency
-
Application:
-
Mini Soap Making Machine

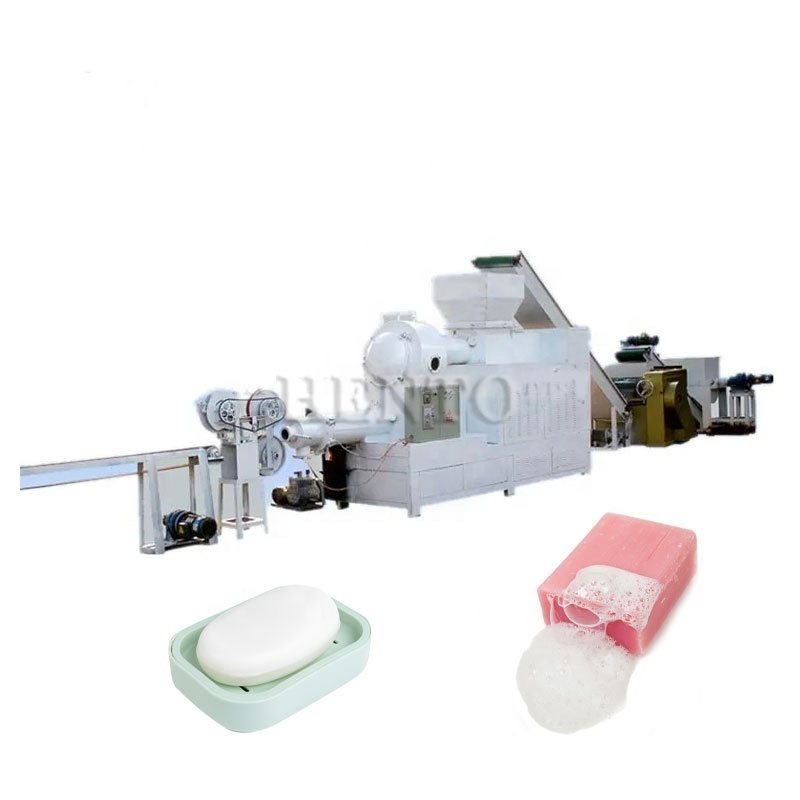

Stable Performance Production Line Soap / Home Soap Making Machine / Commercial Bar Soap Making Machine
This line use soap grain as production material,its capacity is 100-300kg/h.After mixing raw material,grinding,vacuum forming,printing, middle and top grade toilet soaps are produced,the fatty acid content of soap is between 35-70%.This line adopt Duplex Vacuum Plodder,make the soap structure tight,not easy to get dry and cracked.
Conditions:
1).water:1m 3 circulating water(not consumed);
2).Electricity: 50 kw/h,380V,50HZ
3).requirement on workshop:22m in length,8m in width,3.5m in height (including workers operating space)
4).worker number:6-8 persons per shift.
|
Machine name
|
Quantity
|
Technical parameters
|
|
One set |
The production of soap, transparent soap of various raw materials for the full and even stirring, mixing, granulation, and a variety of auxiliary materials and additives and flavors completely into the granulation, to meet the formula requirements. Capacity:75kg/batch Power:4kw/h Machine dimension: 1550*800*1130mm Machine weight:320kg
|
|
|
|
|
Diameter of roller: 260mm Length of working surface: 695mm Power:7.5kw Machine dimension:1700*1200*1 300mm Machine weight:1734kg
|
|
|
One set
|
Capacity:100-300 kg/h power: 5.5kw,7.5kw for adjusting speed Machine dimension:2860*880*222 0mm Machine weight:1320kg
|
|
One set |
Cutting speed: cutting speed is determined by the speed strip cutting machine. Capacity: 500-1000kg/h Cut size: 60-400mm Dimension: 860*550*1120mm Weight:128kg |
|
|
twin-stage rotary-vane vacuum pump
|
One set
|
Suction capacity : 8L/second Power:1.5kw Machine dimension:600*500*350 mm Weight:66kg
|
|
conveying belt
|
Three pieces
|
Send to ( 3m, 4m, 4m) Power:1.1kw Overall dimension: 4500*600*600mm Power:1.1kw
|
If you need further information, please contact us freely, we will do our best to cooperate with you .
