10mm Vacuum Insulated Thermal Insulation Aerogel Fumed Silica Cored Material Blanket For High Temperature Application

10mm Vacuum Insulated Thermal Insulation Aerogel Fumed Silica Cored Material Blanket For High Temperature Application

FOB Reference Price: Get Latest Price

≥10 Square meters

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: building insulation

Design Style:: Industrial

Place of Origin:: Sichuan, China

Brand Name:: Zerothermo

Model Number:: G010

Type:: Insulation Panel

Material:: fumed silica

Thickness:: 5-10mm

Density:: 280Kg/cbm

Thermal Conductivity:: ≤0.023W/(m.K)

Size:: Customized Sizes Support

MOQ:: 100 sqm

Shape:: Rectangle

Compression Strength [kPa]:: ≥100

Tensile Strength [kPa]:: ≥100

Expansion Rate After Being Punctured [%]:: ≤10

Tolerance:: ±2 mm

Quick Details

Warranty:: More than 5 years

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application:: building insulation

Design Style:: Industrial

Place of Origin:: Sichuan, China

Brand Name:: Zerothermo

Model Number:: G010

Type:: Insulation Panel

Material:: fumed silica

Thickness:: 5-10mm

Density:: 280Kg/cbm

Thermal Conductivity:: ≤0.023W/(m.K)

Size:: Customized Sizes Support

MOQ:: 100 sqm

Shape:: Rectangle

Compression Strength [kPa]:: ≥100

Tensile Strength [kPa]:: ≥100

Expansion Rate After Being Punctured [%]:: ≤10

Tolerance:: ±2 mm

Products Description

Product Details

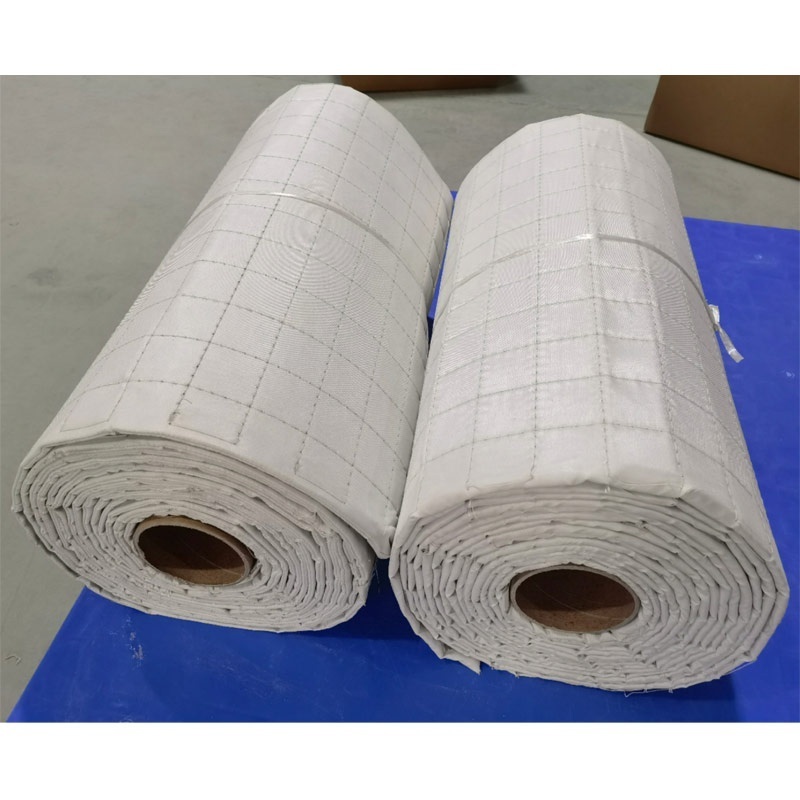

High temperature insulation material- flexible nano thermal insulation mat

The surface of the flexible nano heat insulation mat is covered with a layer of high-temperature resistant fiberglass fabric and made into a grid shape with high-temperature thread seams. It has certain flexibility and can be installed on pipes or curved surfaces. At the same time, it is lower thermal conductivity than still air, and its thermal insulation performance is better 3 to 4 times than traditional materials. It is an ideal high-temperature thermal insulation material.

Size: custom-made Thickness： 5~10mm Temperature resistance：temperature resistance of core material 1000℃（normal）, 1100℃ Density: 280±10（kg/m3）normal 180~260（kg/m3）bespoke Thermal conductivity：T/C (YB/T4130-2005) @hot surface 0.023W/mK @200℃ 0.025W/mK @400℃ 0.032W/mK @600℃ 0.040W/mK @800℃

Size: standard size or customized size (according to your design requirement)

Product Features: Small specific heat, low heat storage and heat shock resistance. Temperature resistance is up to 1100 ℃ It can effectively block infrared radiation No pulverization and long service life. It is non-toxic and environment-friendly, does not contain inhabitable harmful fibers, smokeless and odorless when heated, and does not itch when contacting the skin. It can be used in household appliances. Woodworking tools can be used for cutting, drilling and other processing. This product is a non combustible material and can be used as a fireproof and thermal insulation layer.

Vacuum Technology Empowers Heat Insulation

By application of vacuum technology, the VACUUM INSULATION PANEL (or VIP ) becomes one of the most effective and promising insulation materials. Now, the VIP has won appreciations worldwide, and becomes the very first choice for your insulation solutions.

Structure of VIP

Core Material:

Composed by microporous materials with good insulation performance, normally fumed silica.

Barrier:

High performance gas barrier, with an aluminum layer, prevents vacuum failure.

Product Features

Super Insulation Performance

The microporous core material itself has good insulation performance. After being sealed in vacuum, its insulation performance becomes dramatically better, its thermal conductivity can reach as low as 0.005W/(m·K), even 4 times better than Aerogel.

Good Fireproof Performance

As its main composition is fumed silica, the non-organic material, the fireproof level of VIP can reach Level A, compared with most part of organic materials as XPS, EPS, or PU, the VIP can be safer during application.

Environmentally Safety

As its main composition is fumed silica, the non-organic material, no toxic or polluted gas emission. And we have passed the REACH and ROHS test reports certificated by SGS

Stable Quality

Several measures have been taken to assure the quality of products. And we guarantee the long-term stability of the vacuum degree of VIP.

Economic & Efficiency

Thanks to super insulation performance of VIP, when it is being applied practically, the insulation thickness can be dramatically reduced, which saves considerable effective space.
