1/4" 3/8" 1/2" 3/4" 1" Electronic Solenoid Valves DN8DN10 DN15DN20 DN25 N/C Pneumatic Valves for Water Oil Air 12V/24V/220V/110V

Product description

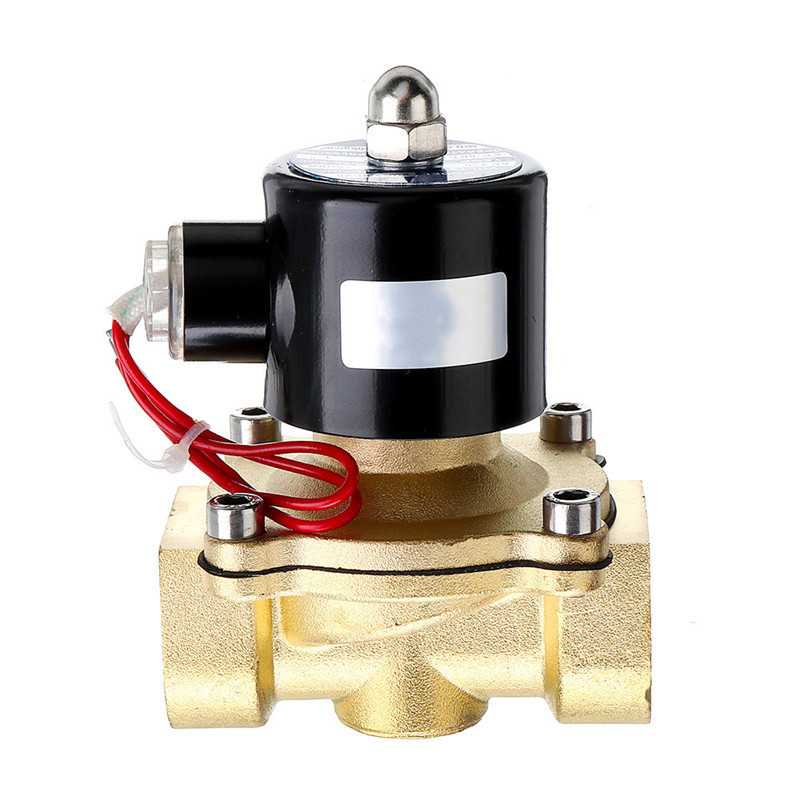

• Name: Electric Solenoid Valves

• Model: 2W025-08,2W040-10,2W160-15,2W200-20,2W250-25

• Material: Aluminum alloy

• Color: Black + Gold

• Voltage:

• AC220V

• AC110V

• Direct Current 24V

• Direct Current 12V

• Type: Normally Closed type(N/C)

• Acting Motion: Direct action

• Connecting Format: Inside thread

• Pipe Diameter: DN08(1/4" )  DN10 (3/8")  DN15(1/2" ) DN20 (3/4") DN25(1").

• Nominal Diameter: DN08(2.5MM)  DN10(4MM) DN15(16MM) DN20(20MM) DN25(25MM)

• Fluid Temperature: -5~80℃

• Work Pressure: 0-10Kg/cm⊃2;

• Protect Class: IP6

• Oil Seal Material: NBR

• Ports: 1/4"  3/8"  1/2" 3/4" 1"  Inlet and Outlet Ports.

• Working Medium: Air, Water, Oil

• Features:
  - Two-position, one-way, normal close switch, magnetic solenoid water valve.
  - High-quality aluminum alloy gravity casting, hard and durable, non-corrosive, the product has the direction of water inlet and outlet.
  - Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
  - Easily replaces broken valves for use with pipelines in water, air and diesel-gas applications.
