Quick Details
-
Place of Origin:
-
Guangdong, China
-
Working Current:
-
350mA-700mA
-
Voltage:
-
3.0-3.6V
-
Chip:
-
Epistar / Epileds / Sanan
-
Wavelength 1:
-
370nm , 380nm , 390nm , 410nm , 420nm available
-
Wavelength 2:
-
365nm , 375nm , 385nm , 395nm , 415nm
-
Color:
-
Ultra-violet
-
Application:
-
UV Curing
-
Product Type:
-
Surface Mount
-
Keyword:
-
High Power UV Led
-
Luminous Flux(lm):
-
.
-
Certification:
-
ce, RoHS
Quick Details
-
Chip Material:
-
INGAN
-
Operating Temperature(℃):
-
-20 - 65
-
Storage Temperature(℃):
-
-20 - 80
-
Place of Origin:
-
Guangdong, China
-
Working Current:
-
350mA-700mA
-
Voltage:
-
3.0-3.6V
-
Chip:
-
Epistar / Epileds / Sanan
-
Wavelength 1:
-
370nm , 380nm , 390nm , 410nm , 420nm available
-
Wavelength 2:
-
365nm , 375nm , 385nm , 395nm , 415nm
-
Color:
-
Ultra-violet
-
Application:
-
UV Curing
-
Product Type:
-
Surface Mount
-
Keyword:
-
High Power UV Led
-
Luminous Flux(lm):
-
.
-
Certification:
-
ce, RoHS

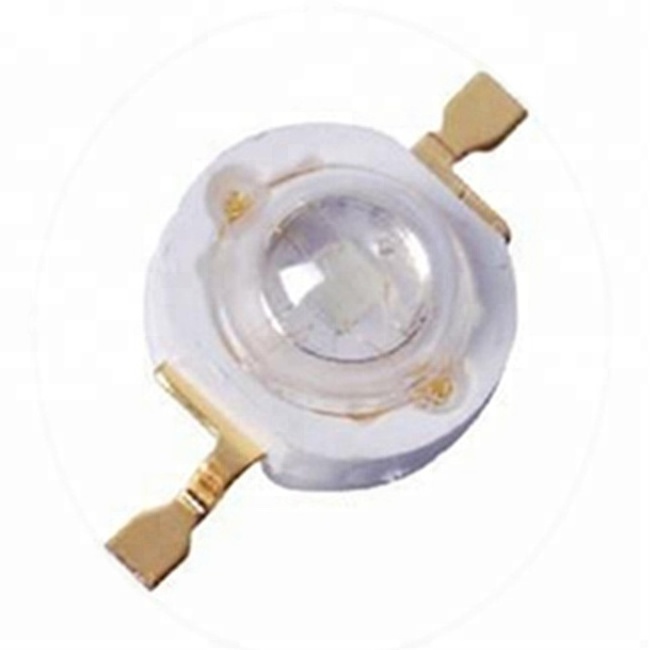

Ultraviolet High Power Epileds Chip 1W - 3W 365nm -420nm UV LED Diode
| Item Number | Power | LED Chip | Wavelength/NM |
| SN-UV-365nm-1W | 1-3W | Epileds-45MIL | 365-370NM |
| SN-UV-370nm-1W | Epileds-45MIL | 370-375NM | |
| SN-UV-380nm-1W | Epileds-45MIL | 380-385NM | |
| SN-UV-385nm-1W | Epileds-45MIL | 385-390NM | |
| SN-UV-390nm-1W | Epileds-45MIL | 390-395NM | |
| SN-UV-395nm-1W | Epileds-45MIL | 395-400NM | |
| SN-UV-400nm-1W | Epileds-45MIL | 400-405NM | |
| SN-UV-405nm-1W | Epileds-45MIL | 405-410NM | |
| SN-UV-410nm-1W | Epileds-45MIL | 410-415NM | |
| SN-UV-420nm-1W | Epileds-45MIL | 415-420NM |
Applications of 365nm UV LEDs:
• Flashlight
• Curing
• Printing
• Coating
• Adhesive
• LED Flashlight
• Bio-analysis/Authenticity
• Crime Inspection
• Oil leak Detection
• Fluorescence Photography
• Counterfeit Detection / Security
| Item Number | Power | LED Chip | Wavelength/NM |
| SN-IR-850nm-3W-01 | 3W | Epistar 42MIL | 850NM |
| SN-IR-850nm-5W-01 | 5W | Epistar 42MIL | 850NM |
| SN-IR-850nm-3W-02 | 3W | Epileds 42MIL | 850NM |
| SN-IR-940nm-3W | 3W | Epileds 42MIL | 940NM |
| SN-IR-940nm-5W | 5W | Epileds 42MIL | 940NM |
| SN-IR-660nm-1W | 1W | Epileds 38MIL | 660NM |
| SN-IR-660nm-3W | 3W | Epileds 42MIL | 660NM |
| SN-IR-850nm-5W-02 | 5W | Epileds 42MIL | 850NM |
| SN-IR-730nm-3W | 3W | Epileds 42MIL | 730NM |
|
SN-High Power
LED-Blue |
1W
(1-3W) |
Epileds-45MIL | 450-460nm |
|
SN-High Power
LED-Red |
1W
(1-3W) |
Epileds-45MIL | 620-630nm |
|
SN-High Power
LED-Green |
1W
(1-3W) |
Epileds-45MIL | 515-525nm |
|
SN-High Power
LED-Yellow |
1W
(1-3W) |
Epileds-45MIL | 585-595nm |
|
SN-High Power
LED-Amber |
1W
(1-3W) |
Epileds-45MIL | 600-610nm |
Competitive Advantages of our LEDs:
- Good quality guarantee, 50000 hours lifespan, 2 years warranty.
- Professional engineers and experienced workers.
- Short delivery time, normally only 2-6 working days.
- Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
- Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
