Quick Details
-
Power:
-
2.2kw
-
Weight:
-
190 KG
-
Dimension(L*W*H):
-
950*940*1950mm
-
Product name:
-

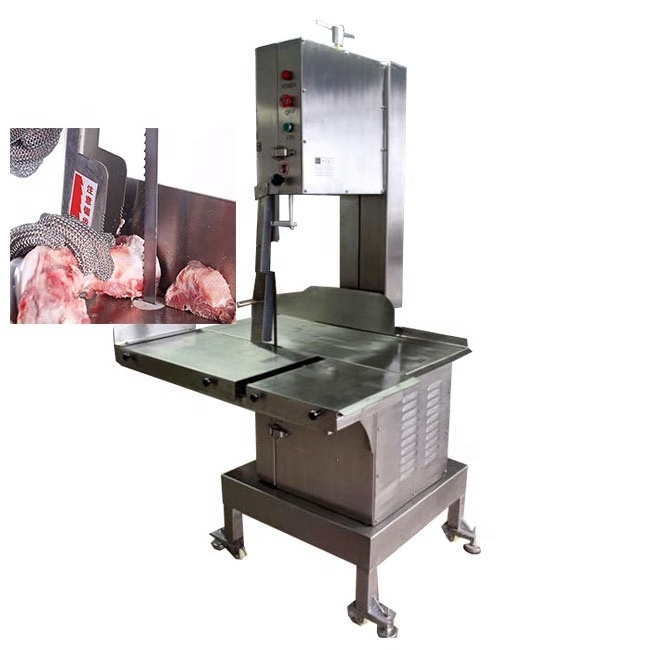

JG-500 Bone Saw Machine
-
Material:
-
stainless steel
-
Model:
-
JG-500A
-
Slicing thickness:
-
0-38CM
-
Cutting Height:
-
52cm
-
Wheel diameter:
-
420mm
-
Saw blade length:
-
3330mm
-
Have CE:
-
Yes
-
Gross Weight:
-
190kg
-
Dimension:
-
950*940*1950mm
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Hengfan
-
Voltage:
-
220v/380v
-
Power:
-
2.2kw
-
Weight:
-
190 KG
-
Dimension(L*W*H):
-
950*940*1950mm
-
Product name:
-
JG-500 Bone Saw Machine
-
Material:
-
stainless steel
-
Model:
-
JG-500A
-
Slicing thickness:
-
0-38CM
-
Cutting Height:
-
52cm
-
Wheel diameter:
-
420mm
-
Saw blade length:
-
3330mm
-
Have CE:
-
Yes
-
Gross Weight:
-
190kg
-
Dimension:
-
950*940*1950mm
Product Description
Feature:
1. The body adopts high-strength stainless steel design, and the structure is reliable!
2.Push-pull, high-low balance adjustable base.
3. National standard 2200w copper wire high power high quality motor.
4. High stability aluminum wheel, improve the linear stability of the saw blade!
5. Added automatic shutdown when door is opened, automatic shutdown when broken saw blade, safer operation.
6. The platform plate is made of 3mm stainless steel plate, which is firm, smooth and rust-proof. It can be locked, modularized and assembled by pushing the slide plate. Depending on the application, it can be used as a flat plate and slide plate. It is convenient and practical!
7. The cutting height of this product is 520mm and the cutting width is 380mm higher than similar models!
8. Optional 220v / 380v voltage models!
2.Push-pull, high-low balance adjustable base.
3. National standard 2200w copper wire high power high quality motor.
4. High stability aluminum wheel, improve the linear stability of the saw blade!
5. Added automatic shutdown when door is opened, automatic shutdown when broken saw blade, safer operation.
6. The platform plate is made of 3mm stainless steel plate, which is firm, smooth and rust-proof. It can be locked, modularized and assembled by pushing the slide plate. Depending on the application, it can be used as a flat plate and slide plate. It is convenient and practical!
7. The cutting height of this product is 520mm and the cutting width is 380mm higher than similar models!
8. Optional 220v / 380v voltage models!
Product Paramenters
|
Product name
|
JG-500A Stainless Steel Bone Saw Machine
|
|
Material
|
Stainless steel
|
|
Model
|
JG-500A
|
|
Power
|
2.2KW （ waterproof motor)
|
|
Voltage
|
380v/230v/50hz/110v/60hz
|
|
Slicing Thickness
|
0-380mm （can adjust)
|
|
Cutting Height
|
520mm
|
|
Saw Blade Length
|
3330mm
|
|
Wheel Diameter
|
420mm
|
|
N.W/G.W
|
150kg/190kg
|
|
Dimension
|
950*940*1950mm
|
Details Images
Inside Wheel
unique stainless steel wheels design ,easy to clean ,wheels diameter :420mm
Meat Push Plate with Safety Handle
Meat&bone thickness：0-38cm (can adjust)
Import saw blade
saw blade length:3330mm， import from America
wheels with lock
4 wheels, 4 lock
